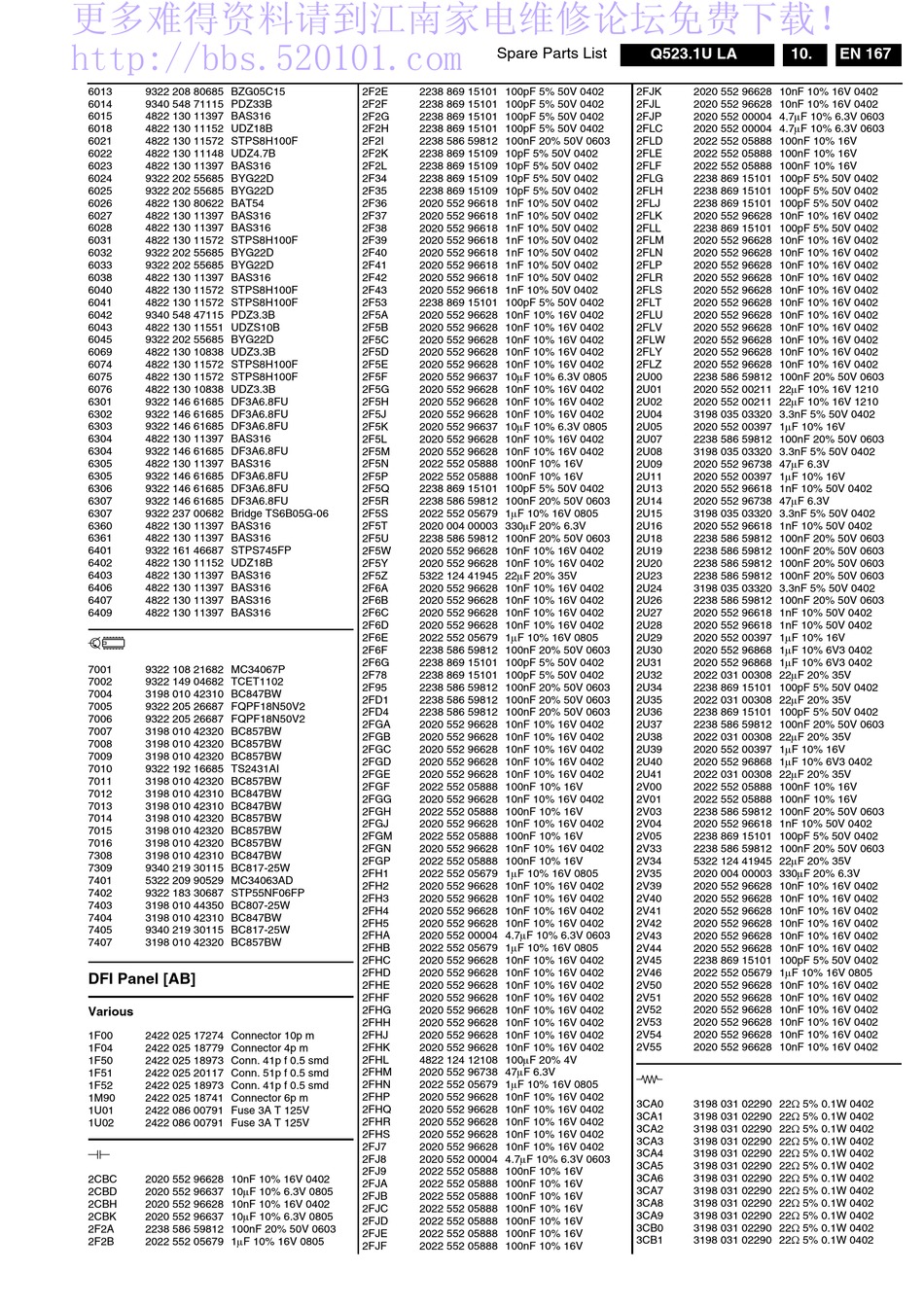

Philips 32PF9968/10 Service Manual page 167

更多难得资料请到江南家电维修论坛免费下载！
http://bbs.520101.com
6013 9322 208 80685 BZG05C15
6014 9340 548 71115 PDZ33B
6015 4822 130 11397 BAS316
6018 4822 130 11152 UDZ18B
6021 4822 130 11572 STPS8H100F
6022 4822 130 11148 UDZ4.7B
6023 4822 130 11397 BAS316
6024 9322 202 55685 BYG22D
6025 9322 202 55685 BYG22D
6026 4822 130 80622 BAT54
6027 4822 130 11397 BAS316
6028 4822 130 11397 BAS316
6031 4822 130 11572 STPS8H100F
6032 9322 202 55685 BYG22D
6033 9322 202 55685 BYG22D
6038 4822 130 11397 BAS316
6040 4822 130 11572 STPS8H100F
6041 4822 130 11572 STPS8H100F
6042 9340 548 47115 PDZ3.3B
6043 4822 130 11551 UDZS10B
6045 9322 202 55685 BYG22D
6069 4822 130 10838 UDZ3.3B
6074 4822 130 11572 STPS8H100F
6075 4822 130 11572 STPS8H100F
6076 4822 130 10838 UDZ3.3B
6301 9322 146 61685 DF3A6.8FU
6302 9322 146 61685 DF3A6.8FU
6303 9322 146 61685 DF3A6.8FU
6304 4822 130 11397 BAS316
6304 9322 146 61685 DF3A6.8FU
6305 4822 130 11397 BAS316
6305 9322 146 61685 DF3A6.8FU
6306 9322 146 61685 DF3A6.8FU
6307 9322 146 61685 DF3A6.8FU
6307 9322 237 00682 Bridge TS6B05G-06
6360 4822 130 11397 BAS316
6361 4822 130 11397 BAS316
6401 9322 161 46687 STPS745FP
6402 4822 130 11152 UDZ18B
6403 4822 130 11397 BAS316
6406 4822 130 11397 BAS316
6407 4822 130 11397 BAS316
6409 4822 130 11397 BAS316
ce
7001 9322 108 21682 MC34067P
7002 9322 149 04682 TCET1102
7004 3198 010 42310 BC847BW
7005 9322 205 26687 FQPF18N50V2
7006 9322 205 26687 FQPF18N50V2
7007 3198 010 42320 BC857BW
7008 3198 010 42320 BC857BW
7009 3198 010 42320 BC857BW
7010 9322 192 16685 TS2431AI
7011 3198 010 42320 BC857BW
7012 3198 010 42310 BC847BW
7013 3198 010 42310 BC847BW
7014 3198 010 42320 BC857BW
7015 3198 010 42320 BC857BW
7016 3198 010 42320 BC857BW
7308 3198 010 42310 BC847BW
7309 9340 219 30115 BC817-25W
7401 5322 209 90529 MC34063AD
7402 9322 183 30687 STP55NF06FP
7403 3198 010 44350 BC807-25W
7404 3198 010 42310 BC847BW
7405 9340 219 30115 BC817-25W
7407 3198 010 42320 BC857BW
DFI Panel [AB]
Various
1F00 2422 025 17274 Connector 10p m
1F04 2422 025 18779 Connector 4p m
1F50 2422 025 18973 Conn. 41p f 0.5 smd
1F51 2422 025 20117 Conn. 51p f 0.5 smd
1F52 2422 025 18973 Conn. 41p f 0.5 smd
1M90 2422 025 18741 Connector 6p m
1U01 2422 086 00791 Fuse 3A T 125V
1U02 2422 086 00791 Fuse 3A T 125V
g
2CBC 2020 552 96628 10nF 10% 16V 0402
2CBD 2020 552 96637 10μF 10% 6.3V 0805
2CBH 2020 552 96628 10nF 10% 16V 0402
2CBK 2020 552 96637 10μF 10% 6.3V 0805
2F2A 2238 586 59812 100nF 20% 50V 0603
2F2B 2022 552 05679 1μF 10% 16V 0805
Spare Parts List
2F2E 2238 869 15101 100pF 5% 50V 0402
2F2F 2238 869 15101 100pF 5% 50V 0402
2F2G 2238 869 15101 100pF 5% 50V 0402
2F2H 2238 869 15101 100pF 5% 50V 0402
2F2I 2238 586 59812 100nF 20% 50V 0603
2F2K 2238 869 15109 10pF 5% 50V 0402
2F2L 2238 869 15109 10pF 5% 50V 0402
2F34 2238 869 15109 10pF 5% 50V 0402
2F35 2238 869 15109 10pF 5% 50V 0402
2F36 2020 552 96618 1nF 10% 50V 0402
2F37 2020 552 96618 1nF 10% 50V 0402
2F38 2020 552 96618 1nF 10% 50V 0402
2F39 2020 552 96618 1nF 10% 50V 0402
2F40 2020 552 96618 1nF 10% 50V 0402
2F41 2020 552 96618 1nF 10% 50V 0402
2F42 2020 552 96618 1nF 10% 50V 0402
2F43 2020 552 96618 1nF 10% 50V 0402
2F53 2238 869 15101 100pF 5% 50V 0402
2F5A 2020 552 96628 10nF 10% 16V 0402
2F5B 2020 552 96628 10nF 10% 16V 0402
2F5C 2020 552 96628 10nF 10% 16V 0402
2F5D 2020 552 96628 10nF 10% 16V 0402
2F5E 2020 552 96628 10nF 10% 16V 0402
2F5F 2020 552 96637 10μF 10% 6.3V 0805
2F5G 2020 552 96628 10nF 10% 16V 0402
2F5H 2020 552 96628 10nF 10% 16V 0402
2F5J 2020 552 96628 10nF 10% 16V 0402
2F5K 2020 552 96637 10μF 10% 6.3V 0805
2F5L 2020 552 96628 10nF 10% 16V 0402
2F5M 2020 552 96628 10nF 10% 16V 0402
2F5N 2022 552 05888 100nF 10% 16V
2F5P 2022 552 05888 100nF 10% 16V
2F5Q 2238 869 15101 100pF 5% 50V 0402
2F5R 2238 586 59812 100nF 20% 50V 0603
2F5S 2022 552 05679 1μF 10% 16V 0805
2F5T 2020 004 00003 330μF 20% 6.3V
2F5U 2238 586 59812 100nF 20% 50V 0603
2F5W 2020 552 96628 10nF 10% 16V 0402
2F5Y 2020 552 96628 10nF 10% 16V 0402
2F5Z 5322 124 41945 22μF 20% 35V
2F6A 2020 552 96628 10nF 10% 16V 0402
2F6B 2020 552 96628 10nF 10% 16V 0402
2F6C 2020 552 96628 10nF 10% 16V 0402
2F6D 2020 552 96628 10nF 10% 16V 0402
2F6E 2022 552 05679 1μF 10% 16V 0805
2F6F 2238 586 59812 100nF 20% 50V 0603
2F6G 2238 869 15101 100pF 5% 50V 0402
2F78 2238 869 15101 100pF 5% 50V 0402
2F95 2238 586 59812 100nF 20% 50V 0603
2FD1 2238 586 59812 100nF 20% 50V 0603
2FD4 2238 586 59812 100nF 20% 50V 0603
2FGA 2020 552 96628 10nF 10% 16V 0402
2FGB 2020 552 96628 10nF 10% 16V 0402
2FGC 2020 552 96628 10nF 10% 16V 0402
2FGD 2020 552 96628 10nF 10% 16V 0402
2FGE 2020 552 96628 10nF 10% 16V 0402
2FGF 2022 552 05888 100nF 10% 16V
2FGG 2020 552 96628 10nF 10% 16V 0402
2FGH 2022 552 05888 100nF 10% 16V
2FGJ 2020 552 96628 10nF 10% 16V 0402
2FGM 2022 552 05888 100nF 10% 16V
2FGN 2020 552 96628 10nF 10% 16V 0402
2FGP 2022 552 05888 100nF 10% 16V
2FH1 2022 552 05679 1μF 10% 16V 0805
2FH2 2020 552 96628 10nF 10% 16V 0402
2FH3 2020 552 96628 10nF 10% 16V 0402
2FH4 2020 552 96628 10nF 10% 16V 0402
2FH5 2020 552 96628 10nF 10% 16V 0402
2FHA 2020 552 00004 4.7μF 10% 6.3V 0603
2FHB 2022 552 05679 1μF 10% 16V 0805
2FHC 2020 552 96628 10nF 10% 16V 0402
2FHD 2020 552 96628 10nF 10% 16V 0402
2FHE 2020 552 96628 10nF 10% 16V 0402
2FHF 2020 552 96628 10nF 10% 16V 0402
2FHG 2020 552 96628 10nF 10% 16V 0402
2FHH 2020 552 96628 10nF 10% 16V 0402
2FHJ 2020 552 96628 10nF 10% 16V 0402
2FHK 2020 552 96628 10nF 10% 16V 0402
2FHL 4822 124 12108 100μF 20% 4V
2FHM 2020 552 96738 47μF 6.3V
2FHN 2022 552 05679 1μF 10% 16V 0805
2FHP 2020 552 96628 10nF 10% 16V 0402
2FHQ 2020 552 96628 10nF 10% 16V 0402
2FHR 2020 552 96628 10nF 10% 16V 0402
2FHS 2020 552 96628 10nF 10% 16V 0402
2FJ7 2020 552 96628 10nF 10% 16V 0402
2FJ8 2020 552 00004 4.7μF 10% 6.3V 0603
2FJ9 2022 552 05888 100nF 10% 16V
2FJA 2022 552 05888 100nF 10% 16V
2FJB 2022 552 05888 100nF 10% 16V
2FJC 2022 552 05888 100nF 10% 16V
2FJD 2022 552 05888 100nF 10% 16V
2FJE 2022 552 05888 100nF 10% 16V
2FJF 2022 552 05888 100nF 10% 16V
Q523.1U LA 10.
2FJK 2020 552 96628 10nF 10% 16V 0402
2FJL 2020 552 96628 10nF 10% 16V 0402
2FJP 2020 552 00004 4.7μF 10% 6.3V 0603
2FLC 2020 552 00004 4.7μF 10% 6.3V 0603
2FLD 2022 552 05888 100nF 10% 16V
2FLE 2022 552 05888 100nF 10% 16V
2FLF 2022 552 05888 100nF 10% 16V
2FLG 2238 869 15101 100pF 5% 50V 0402
2FLH 2238 869 15101 100pF 5% 50V 0402
2FLJ 2238 869 15101 100pF 5% 50V 0402
2FLK 2020 552 96628 10nF 10% 16V 0402
2FLL 2238 869 15101 100pF 5% 50V 0402
2FLM 2020 552 96628 10nF 10% 16V 0402
2FLN 2020 552 96628 10nF 10% 16V 0402
2FLP 2020 552 96628 10nF 10% 16V 0402
2FLR 2020 552 96628 10nF 10% 16V 0402
2FLS 2020 552 96628 10nF 10% 16V 0402
2FLT 2020 552 96628 10nF 10% 16V 0402
2FLU 2020 552 96628 10nF 10% 16V 0402
2FLV 2020 552 96628 10nF 10% 16V 0402
2FLW 2020 552 96628 10nF 10% 16V 0402
2FLY 2020 552 96628 10nF 10% 16V 0402
2FLZ 2020 552 96628 10nF 10% 16V 0402
2U00 2238 586 59812 100nF 20% 50V 0603
2U01 2020 552 00211 22μF 10% 16V 1210
2U02 2020 552 00211 22μF 10% 16V 1210
2U04 3198 035 03320 3.3nF 5% 50V 0402
2U05 2020 552 00397 1μF 10% 16V
2U07 2238 586 59812 100nF 20% 50V 0603
2U08 3198 035 03320 3.3nF 5% 50V 0402
2U09 2020 552 96738 47μF 6.3V
2U11 2020 552 00397 1μF 10% 16V
2U13 2020 552 96618 1nF 10% 50V 0402
2U14 2020 552 96738 47μF 6.3V
2U15 3198 035 03320 3.3nF 5% 50V 0402
2U16 2020 552 96618 1nF 10% 50V 0402
2U18 2238 586 59812 100nF 20% 50V 0603
2U19 2238 586 59812 100nF 20% 50V 0603
2U20 2238 586 59812 100nF 20% 50V 0603
2U23 2238 586 59812 100nF 20% 50V 0603
2U24 3198 035 03320 3.3nF 5% 50V 0402
2U26 2238 586 59812 100nF 20% 50V 0603
2U27 2020 552 96618 1nF 10% 50V 0402
2U28 2020 552 96618 1nF 10% 50V 0402
2U29 2020 552 00397 1μF 10% 16V
2U30 2020 552 96868 1μF 10% 6V3 0402
2U31 2020 552 96868 1μF 10% 6V3 0402
2U32 2022 031 00308 22μF 20% 35V
2U34 2238 869 15101 100pF 5% 50V 0402
2U35 2022 031 00308 22μF 20% 35V
2U36 2238 869 15101 100pF 5% 50V 0402
2U37 2238 586 59812 100nF 20% 50V 0603
2U38 2022 031 00308 22μF 20% 35V
2U39 2020 552 00397 1μF 10% 16V
2U40 2020 552 96868 1μF 10% 6V3 0402
2U41 2022 031 00308 22μF 20% 35V
2V00 2022 552 05888 100nF 10% 16V
2V01 2022 552 05888 100nF 10% 16V
2V03 2238 586 59812 100nF 20% 50V 0603
2V04 2020 552 96618 1nF 10% 50V 0402
2V05 2238 869 15101 100pF 5% 50V 0402
2V33 2238 586 59812 100nF 20% 50V 0603
2V34 5322 124 41945 22μF 20% 35V
2V35 2020 004 00003 330μF 20% 6.3V
2V39 2020 552 96628 10nF 10% 16V 0402
2V40 2020 552 96628 10nF 10% 16V 0402
2V41 2020 552 96628 10nF 10% 16V 0402
2V42 2020 552 96628 10nF 10% 16V 0402
2V43 2020 552 96628 10nF 10% 16V 0402
2V44 2020 552 96628 10nF 10% 16V 0402
2V45 2238 869 15101 100pF 5% 50V 0402
2V46 2022 552 05679 1μF 10% 16V 0805
2V50 2020 552 96628 10nF 10% 16V 0402
2V51 2020 552 96628 10nF 10% 16V 0402
2V52 2020 552 96628 10nF 10% 16V 0402
2V53 2020 552 96628 10nF 10% 16V 0402
2V54 2020 552 96628 10nF 10% 16V 0402
2V55 2020 552 96628 10nF 10% 16V 0402
f
3CA0 3198 031 02290 22Ω 5% 0.1W 0402
3CA1 3198 031 02290 22Ω 5% 0.1W 0402
3CA2 3198 031 02290 22Ω 5% 0.1W 0402
3CA3 3198 031 02290 22Ω 5% 0.1W 0402
3CA4 3198 031 02290 22Ω 5% 0.1W 0402
3CA5 3198 031 02290 22Ω 5% 0.1W 0402
3CA6 3198 031 02290 22Ω 5% 0.1W 0402
3CA7 3198 031 02290 22Ω 5% 0.1W 0402
3CA8 3198 031 02290 22Ω 5% 0.1W 0402
3CA9 3198 031 02290 22Ω 5% 0.1W 0402
3CB0 3198 031 02290 22Ω 5% 0.1W 0402
3CB1 3198 031 02290 22Ω 5% 0.1W 0402
