Philips 32PF9968/10 Service Manual page 143

Chassis q523.1u
Hide thumbs Also See for 32PF9968/10:
Table of Contents

Advertisement

更多难得资料请到江南家电维修论坛免费下载！
http://bbs.520101.com
Circuit Descriptions, Abbreviation List, and IC Data Sheets
Q523.1U LA
9.
EN 143

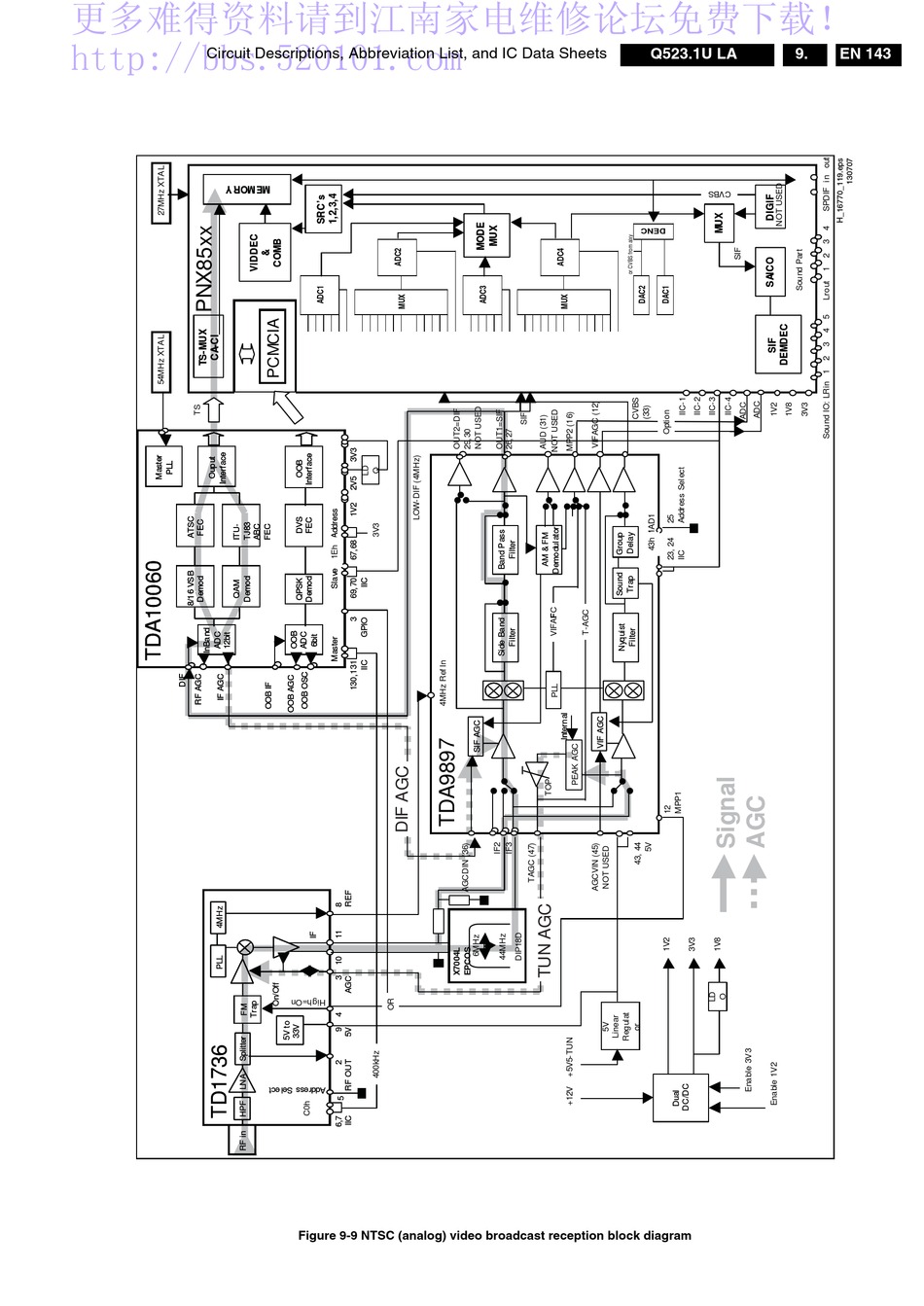

Figure 9-9 NTSC (analog) video broadcast reception block diagram
