EN 138
9.
Q523.1U LA
9.1.3

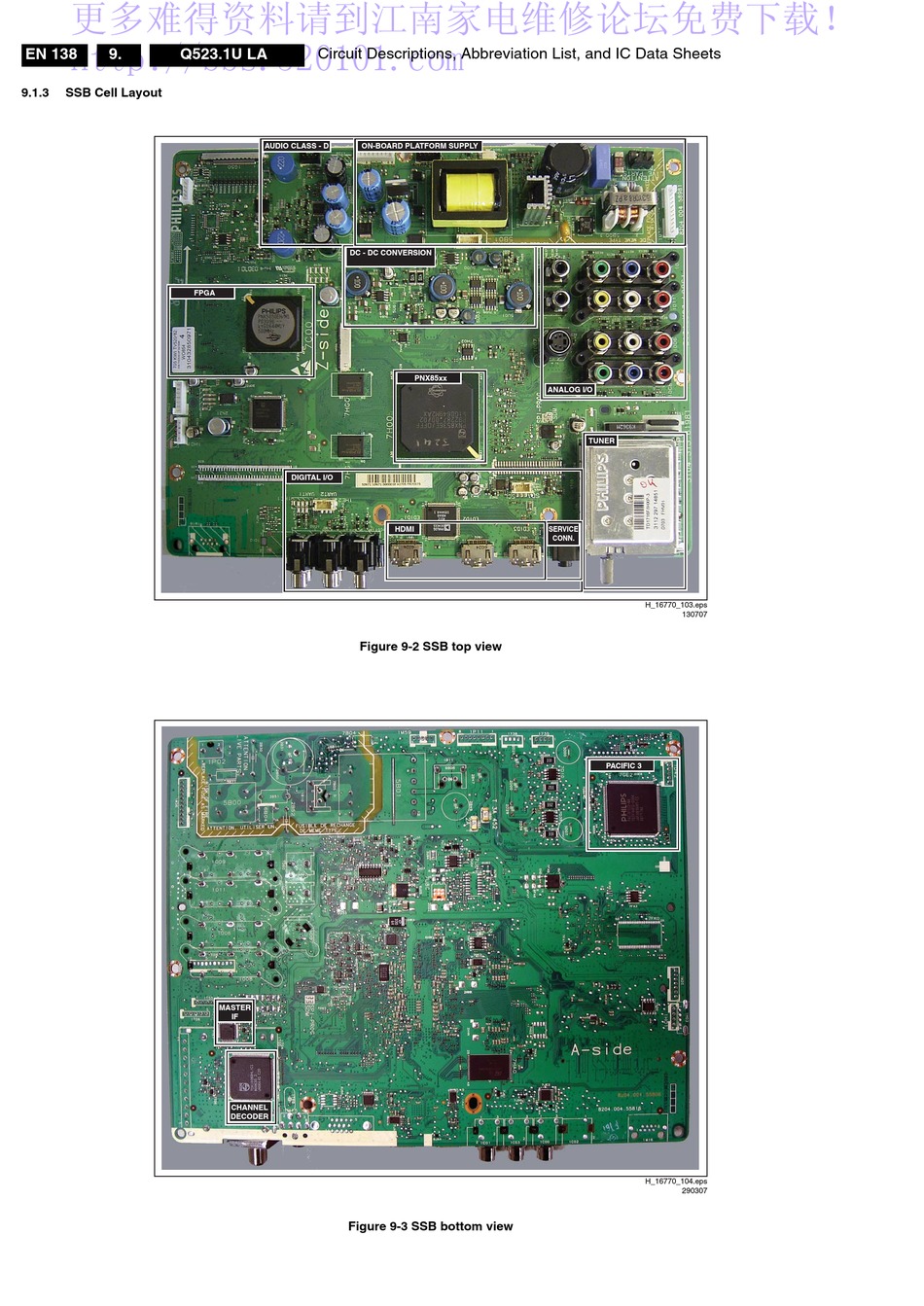

SSB Cell Layout
FPGA
Circuit Descriptions, Abbreviation List, and IC Data Sheets
AUDIO CLASS - D
ON-BOARD PLATFORM SUPPLY
DC - DC CONVERSION
DIGITAL I/O
Figure 9-2 SSB top view
MASTER
IF
CHANNEL
DECODER
Figure 9-3 SSB bottom view
PNX85xx
ANALOG I/O
HDMI
SERVICE
CONN.
TUNER
H_16770_103.eps
130707
PACIFIC 3
H_16770_104.eps
290307
