2J16 2238 869 15101 100pF 5% 50V 0402
2J20 2238 869 15101 100pF 5% 50V 0402
2J30 2020 552 96618 1nF 10% 50V 0402
2J31 2238 586 59812 100nF 20% 50V 0603
2J32 2020 552 00291 10μF 20% 6V3 0603
2J33 2238 586 59812 100nF 20% 50V 0603
2J34 2238 586 59812 100nF 20% 50V 0603
2J42 4822 126 14519 22pF 5% 50V 0402
2J49 4822 126 14519 22pF 5% 50V 0402
2J61 2222 780 15663 1μF 10% 0805
2J62 2238 869 15101 100pF 5% 50V 0402
2J65 2222 780 15663 1μF 10% 0805
2J66 2238 869 15101 100pF 5% 50V 0402
2JA0 2238 586 59812 100nF 20% 50V 0603
2JA1 2238 586 59812 100nF 20% 50V 0603
2JA2 2238 586 59812 100nF 20% 50V 0603
2JA3 2238 586 59812 100nF 20% 50V 0603
2JA4 2020 552 96628 10nF 10% 16V 0402
2JA5 2020 552 96628 10nF 10% 16V 0402
2JA6 3198 035 14720 4.7nF 5% 25V 0402
2JA7 3198 035 14720 4.7nF 5% 25V 0402
2JA8 2250 200 13676 10μF 10% 6V3 0805
2JA9 2238 586 59812 100nF 20% 50V 0603
2JB0 2020 552 96618 1nF 10% 50V 0402
2JB1 2250 200 13676 10μF 10% 6V3 0805
2JB2 2238 586 59812 100nF 20% 50V 0603
2JB3 2238 586 59812 100nF 20% 50V 0603
2JB4 2238 586 59812 100nF 20% 50V 0603
2JB5 2238 586 59812 100nF 20% 50V 0603
2JB6 2020 552 96618 1nF 10% 50V 0402
2JB7 2020 552 96618 1nF 10% 50V 0402
2JB8 2020 552 96618 1nF 10% 50V 0402
2JB9 2020 552 96618 1nF 10% 50V 0402
2JC0 2238 586 59812 100nF 20% 50V 0603
2JC1 2020 552 96618 1nF 10% 50V 0402
2JE1 2238 586 59812 100nF 20% 50V 0603
2JE2 2238 586 59812 100nF 20% 50V 0603
2JE3 2238 586 59812 100nF 20% 50V 0603
2JE4 2238 586 59812 100nF 20% 50V 0603
2JE5 2238 586 59812 100nF 20% 50V 0603
2JE6 2238 586 59812 100nF 20% 50V 0603
2JE7 2020 552 96618 1nF 10% 50V 0402
2JE8 2238 586 59812 100nF 20% 50V 0603
2JE9 2238 586 59812 100nF 20% 50V 0603
2JF0 2020 552 96618 1nF 10% 50V 0402
2JF1 2020 552 96618 1nF 10% 50V 0402
2JG1 2238 586 59812 100nF 20% 50V 0603
2JG2 2238 586 59812 100nF 20% 50V 0603
2JG3 3198 035 14720 4.7nF 5% 25V 0402
2N04 2238 586 59812 100nF 20% 50V 0603
2N05 2238 586 59812 100nF 20% 50V 0603
2N06 2238 586 59812 100nF 20% 50V 0603
2N07 2238 586 59812 100nF 20% 50V 0603
2N08 2238 586 59812 100nF 20% 50V 0603
2N09 2238 586 59812 100nF 20% 50V 0603
2N10 2238 586 59812 100nF 20% 50V 0603
2N11 2238 586 59812 100nF 20% 50V 0603
2N12 2238 586 59812 100nF 20% 50V 0603
2N13 2238 586 59812 100nF 20% 50V 0603
2N14 2238 586 59812 100nF 20% 50V 0603
2N15 2238 586 59812 100nF 20% 50V 0603
2N16 2238 586 59812 100nF 20% 50V 0603
2N17 2238 586 59812 100nF 20% 50V 0603
2N18 2238 586 59812 100nF 20% 50V 0603
2N19 4822 124 11946 22μF 20% 16V
2N20 4822 124 11946 22μF 20% 16V
2N21 2238 586 59812 100nF 20% 50V 0603
2N22 3198 034 02790 47pF 1% 50V 0402
2N23 3198 034 02790 47pF 1% 50V 0402
2N25 2022 552 05888 100nF 10% 16V
2N30 2238 586 59812 100nF 20% 50V 0603
2N31 2020 021 00215 220μF 20% 25V
2N32 4822 124 11131 47μF 6.3V
2N51 2238 869 15101 100pF 5% 50V 0402
2N52 2238 869 15101 100pF 5% 50V 0402
2N53 2238 869 15101 100pF 5% 50V 0402
2N54 2238 869 15101 100pF 5% 50V 0402
2N55 2238 869 15101 100pF 5% 50V 0402
2N56 2238 869 15101 100pF 5% 50V 0402
2T03 3198 034 08280 8.2pF 50V
2T04 3198 034 08280 8.2pF 50V
2T05 2020 552 96628 10nF 10% 16V 0402
2T06 2238 787 15641 22nF 5% 16V 0402
2T07 2020 552 96628 10nF 10% 16V 0402
2T08 2020 552 96628 10nF 10% 16V 0402
2T09 2020 552 96628 10nF 10% 16V 0402
2T10 2020 552 96628 10nF 10% 16V 0402
2T11 2020 552 96628 10nF 10% 16V 0402
2T12 2238 586 59812 100nF 20% 50V 0603
2T13 2238 586 59812 100nF 20% 50V 0603
2T14 2238 586 59812 100nF 20% 50V 0603
2T15 2238 586 59812 100nF 20% 50V 0603
2T16 2238 586 59812 100nF 20% 50V 0603
2T17 2238 586 59812 100nF 20% 50V 0603

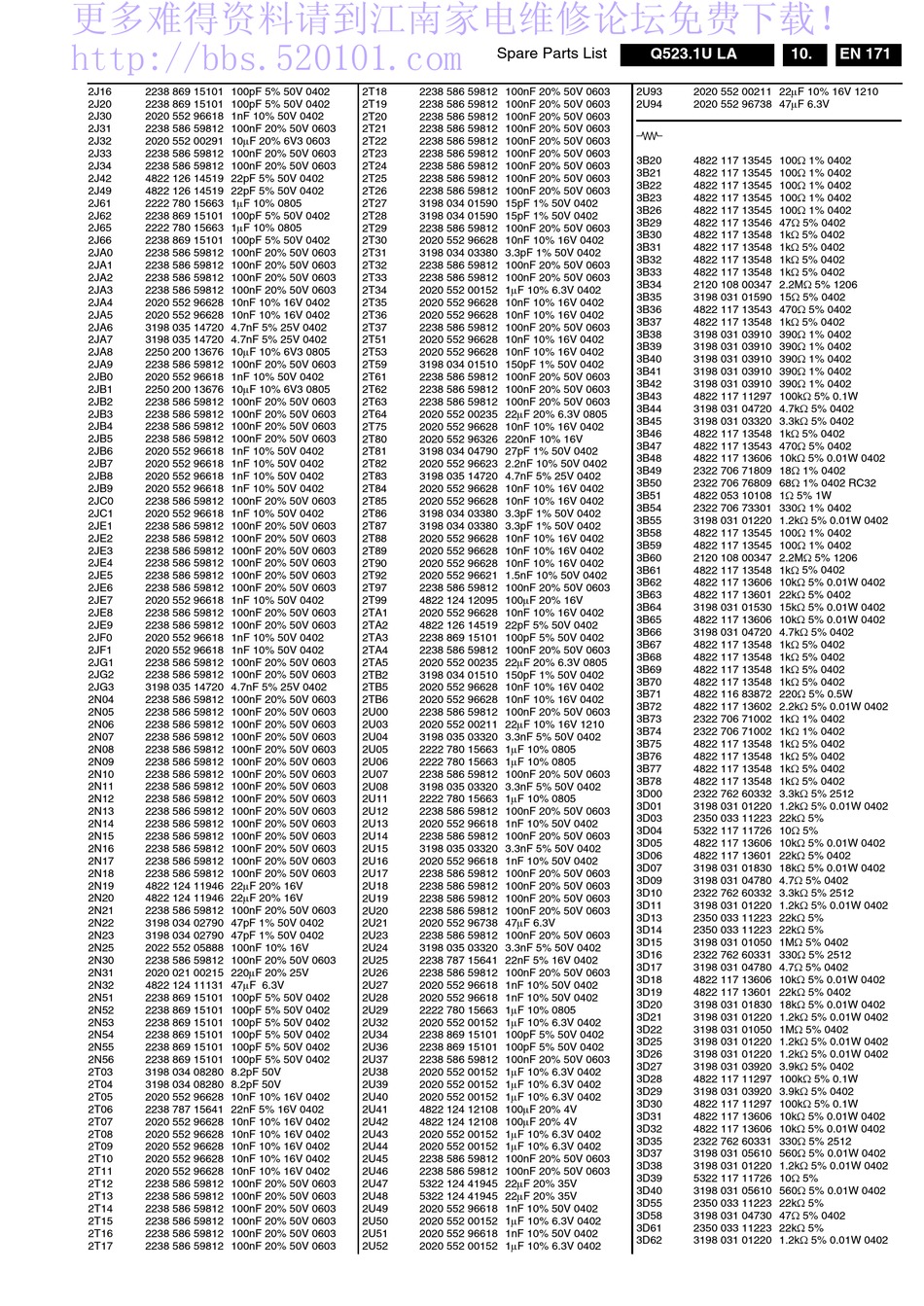

Spare Parts List
2T18 2238 586 59812 100nF 20% 50V 0603
2T19 2238 586 59812 100nF 20% 50V 0603
2T20 2238 586 59812 100nF 20% 50V 0603
2T21 2238 586 59812 100nF 20% 50V 0603
2T22 2238 586 59812 100nF 20% 50V 0603
2T23 2238 586 59812 100nF 20% 50V 0603
2T24 2238 586 59812 100nF 20% 50V 0603
2T25 2238 586 59812 100nF 20% 50V 0603
2T26 2238 586 59812 100nF 20% 50V 0603
2T27 3198 034 01590 15pF 1% 50V 0402
2T28 3198 034 01590 15pF 1% 50V 0402
2T29 2238 586 59812 100nF 20% 50V 0603
2T30 2020 552 96628 10nF 10% 16V 0402
2T31 3198 034 03380 3.3pF 1% 50V 0402
2T32 2238 586 59812 100nF 20% 50V 0603
2T33 2238 586 59812 100nF 20% 50V 0603
2T34 2020 552 00152 1μF 10% 6.3V 0402
2T35 2020 552 96628 10nF 10% 16V 0402
2T36 2020 552 96628 10nF 10% 16V 0402
2T37 2238 586 59812 100nF 20% 50V 0603
2T51 2020 552 96628 10nF 10% 16V 0402
2T53 2020 552 96628 10nF 10% 16V 0402
2T59 3198 034 01510 150pF 1% 50V 0402
2T61 2238 586 59812 100nF 20% 50V 0603
2T62 2238 586 59812 100nF 20% 50V 0603
2T63 2238 586 59812 100nF 20% 50V 0603
2T64 2020 552 00235 22μF 20% 6.3V 0805
2T75 2020 552 96628 10nF 10% 16V 0402
2T80 2020 552 96326 220nF 10% 16V
2T81 3198 034 04790 27pF 1% 50V 0402
2T82 2020 552 96623 2.2nF 10% 50V 0402
2T83 3198 035 14720 4.7nF 5% 25V 0402
2T84 2020 552 96628 10nF 10% 16V 0402
2T85 2020 552 96628 10nF 10% 16V 0402
2T86 3198 034 03380 3.3pF 1% 50V 0402
2T87 3198 034 03380 3.3pF 1% 50V 0402
2T88 2020 552 96628 10nF 10% 16V 0402
2T89 2020 552 96628 10nF 10% 16V 0402
2T90 2020 552 96628 10nF 10% 16V 0402
2T92 2020 552 96621 1.5nF 10% 50V 0402
2T97 2238 586 59812 100nF 20% 50V 0603
2T99 4822 124 12095 100μF 20% 16V
2TA1 2020 552 96628 10nF 10% 16V 0402
2TA2 4822 126 14519 22pF 5% 50V 0402
2TA3 2238 869 15101 100pF 5% 50V 0402
2TA4 2238 586 59812 100nF 20% 50V 0603
2TA5 2020 552 00235 22μF 20% 6.3V 0805
2TB2 3198 034 01510 150pF 1% 50V 0402
2TB5 2020 552 96628 10nF 10% 16V 0402
2TB6 2020 552 96628 10nF 10% 16V 0402
2U00 2238 586 59812 100nF 20% 50V 0603
2U03 2020 552 00211 22μF 10% 16V 1210
2U04 3198 035 03320 3.3nF 5% 50V 0402
2U05 2222 780 15663 1μF 10% 0805
2U06 2222 780 15663 1μF 10% 0805
2U07 2238 586 59812 100nF 20% 50V 0603
2U08 3198 035 03320 3.3nF 5% 50V 0402
2U11 2222 780 15663 1μF 10% 0805
2U12 2238 586 59812 100nF 20% 50V 0603
2U13 2020 552 96618 1nF 10% 50V 0402
2U14 2238 586 59812 100nF 20% 50V 0603
2U15 3198 035 03320 3.3nF 5% 50V 0402
2U16 2020 552 96618 1nF 10% 50V 0402
2U17 2238 586 59812 100nF 20% 50V 0603
2U18 2238 586 59812 100nF 20% 50V 0603
2U19 2238 586 59812 100nF 20% 50V 0603
2U20 2238 586 59812 100nF 20% 50V 0603
2U21 2020 552 96738 47μF 6.3V
2U23 2238 586 59812 100nF 20% 50V 0603
2U24 3198 035 03320 3.3nF 5% 50V 0402
2U25 2238 787 15641 22nF 5% 16V 0402
2U26 2238 586 59812 100nF 20% 50V 0603
2U27 2020 552 96618 1nF 10% 50V 0402
2U28 2020 552 96618 1nF 10% 50V 0402
2U29 2222 780 15663 1μF 10% 0805
2U32 2020 552 00152 1μF 10% 6.3V 0402
2U34 2238 869 15101 100pF 5% 50V 0402
2U36 2238 869 15101 100pF 5% 50V 0402
2U37 2238 586 59812 100nF 20% 50V 0603
2U38 2020 552 00152 1μF 10% 6.3V 0402
2U39 2020 552 00152 1μF 10% 6.3V 0402
2U40 2020 552 00152 1μF 10% 6.3V 0402
2U41 4822 124 12108 100μF 20% 4V
2U42 4822 124 12108 100μF 20% 4V
2U43 2020 552 00152 1μF 10% 6.3V 0402
2U44 2020 552 00152 1μF 10% 6.3V 0402
2U45 2238 586 59812 100nF 20% 50V 0603
2U46 2238 586 59812 100nF 20% 50V 0603
2U47 5322 124 41945 22μF 20% 35V
2U48 5322 124 41945 22μF 20% 35V
2U49 2020 552 96618 1nF 10% 50V 0402
2U50 2020 552 00152 1μF 10% 6.3V 0402
2U51 2020 552 96618 1nF 10% 50V 0402
2U52 2020 552 00152 1μF 10% 6.3V 0402
Q523.1U LA 10.
2U93 2020 552 00211 22μF 10% 16V 1210
2U94 2020 552 96738 47μF 6.3V
f
3B20 4822 117 13545 100Ω 1% 0402
3B21 4822 117 13545 100Ω 1% 0402
3B22 4822 117 13545 100Ω 1% 0402
3B23 4822 117 13545 100Ω 1% 0402
3B26 4822 117 13545 100Ω 1% 0402
3B29 4822 117 13546 47Ω 5% 0402
3B30 4822 117 13548 1kΩ 5% 0402
3B31 4822 117 13548 1kΩ 5% 0402
3B32 4822 117 13548 1kΩ 5% 0402
3B33 4822 117 13548 1kΩ 5% 0402
3B34 2120 108 00347 2.2MΩ 5% 1206
3B35 3198 031 01590 15Ω 5% 0402
3B36 4822 117 13543 470Ω 5% 0402
3B37 4822 117 13548 1kΩ 5% 0402
3B38 3198 031 03910 390Ω 1% 0402
3B39 3198 031 03910 390Ω 1% 0402
3B40 3198 031 03910 390Ω 1% 0402
3B41 3198 031 03910 390Ω 1% 0402
3B42 3198 031 03910 390Ω 1% 0402
3B43 4822 117 11297 100kΩ 5% 0.1W
3B44 3198 031 04720 4.7kΩ 5% 0402
3B45 3198 031 03320 3.3kΩ 5% 0402
3B46 4822 117 13548 1kΩ 5% 0402
3B47 4822 117 13543 470Ω 5% 0402
3B48 4822 117 13606 10kΩ 5% 0.01W 0402
3B49 2322 706 71809 18Ω 1% 0402
3B50 2322 706 76809 68Ω 1% 0402 RC32
3B51 4822 053 10108 1Ω 5% 1W
3B54 2322 706 73301 330Ω 1% 0402
3B55 3198 031 01220 1.2kΩ 5% 0.01W 0402
3B58 4822 117 13545 100Ω 1% 0402
3B59 4822 117 13545 100Ω 1% 0402
3B60 2120 108 00347 2.2MΩ 5% 1206
3B61 4822 117 13548 1kΩ 5% 0402
3B62 4822 117 13606 10kΩ 5% 0.01W 0402
3B63 4822 117 13601 22kΩ 5% 0402
3B64 3198 031 01530 15kΩ 5% 0.01W 0402
3B65 4822 117 13606 10kΩ 5% 0.01W 0402
3B66 3198 031 04720 4.7kΩ 5% 0402
3B67 4822 117 13548 1kΩ 5% 0402
3B68 4822 117 13548 1kΩ 5% 0402
3B69 4822 117 13548 1kΩ 5% 0402
3B70 4822 117 13548 1kΩ 5% 0402
3B71 4822 116 83872 220Ω 5% 0.5W
3B72 4822 117 13602 2.2kΩ 5% 0.01W 0402
3B73 2322 706 71002 1kΩ 1% 0402
3B74 2322 706 71002 1kΩ 1% 0402
3B75 4822 117 13548 1kΩ 5% 0402
3B76 4822 117 13548 1kΩ 5% 0402
3B77 4822 117 13548 1kΩ 5% 0402
3B78 4822 117 13548 1kΩ 5% 0402
3D00 2322 762 60332 3.3kΩ 5% 2512
3D01 3198 031 01220 1.2kΩ 5% 0.01W 0402
3D03 2350 033 11223 22kΩ 5%
3D04 5322 117 11726 10Ω 5%
3D05 4822 117 13606 10kΩ 5% 0.01W 0402
3D06 4822 117 13601 22kΩ 5% 0402
3D07 3198 031 01830 18kΩ 5% 0.01W 0402
3D09 3198 031 04780 4.7Ω 5% 0402
3D10 2322 762 60332 3.3kΩ 5% 2512
3D11 3198 031 01220 1.2kΩ 5% 0.01W 0402
3D13 2350 033 11223 22kΩ 5%
3D14 2350 033 11223 22kΩ 5%
3D15 3198 031 01050 1MΩ 5% 0402
3D16 2322 762 60331 330Ω 5% 2512
3D17 3198 031 04780 4.7Ω 5% 0402
3D18 4822 117 13606 10kΩ 5% 0.01W 0402
3D19 4822 117 13601 22kΩ 5% 0402
3D20 3198 031 01830 18kΩ 5% 0.01W 0402
3D21 3198 031 01220 1.2kΩ 5% 0.01W 0402
3D22 3198 031 01050 1MΩ 5% 0402
3D25 3198 031 01220 1.2kΩ 5% 0.01W 0402
3D26 3198 031 01220 1.2kΩ 5% 0.01W 0402
3D27 3198 031 03920 3.9kΩ 5% 0402
3D28 4822 117 11297 100kΩ 5% 0.1W
3D29 3198 031 03920 3.9kΩ 5% 0402
3D30 4822 117 11297 100kΩ 5% 0.1W
3D31 4822 117 13606 10kΩ 5% 0.01W 0402
3D32 4822 117 13606 10kΩ 5% 0.01W 0402
3D35 2322 762 60331 330Ω 5% 2512
3D37 3198 031 05610 560Ω 5% 0.01W 0402
3D38 3198 031 01220 1.2kΩ 5% 0.01W 0402
3D39 5322 117 11726 10Ω 5%
3D40 3198 031 05610 560Ω 5% 0.01W 0402
3D55 2350 033 11223 22kΩ 5%
3D58 3198 031 04730 47Ω 5% 0402
3D61 2350 033 11223 22kΩ 5%
3D62 3198 031 01220 1.2kΩ 5% 0.01W 0402
