Circuit Descriptions, Abbreviation List, and IC Data Sheets

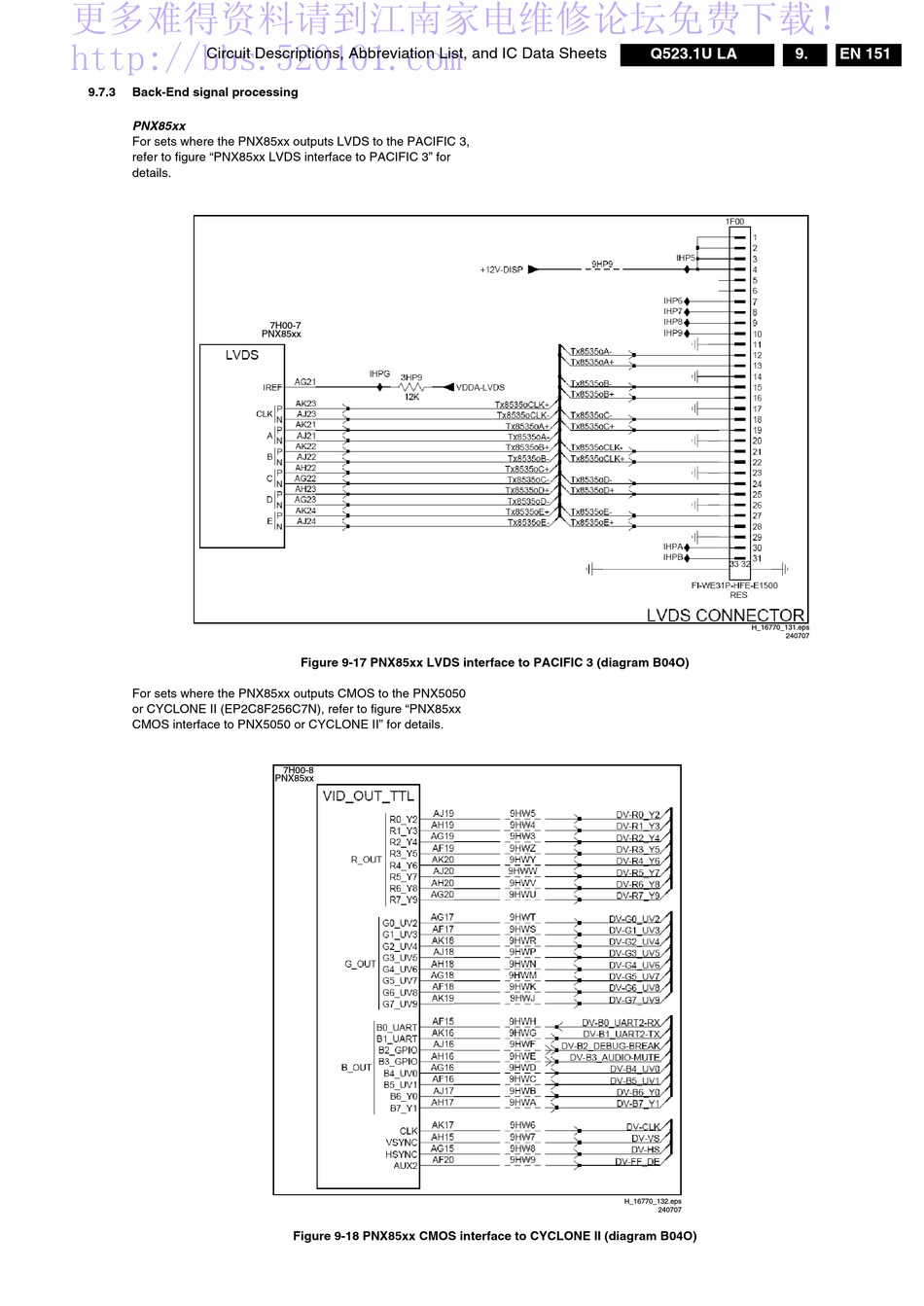

9.7.3 Back-End signal processing
PNX85xx
For sets where the PNX85xx outputs LVDS to the PACIFIC 3,
refer to figure "PNX85xx LVDS interface to PACIFIC 3" for
details.
For sets where the PNX85xx outputs CMOS to the PNX5050
or CYCLONE II (EP2C8F256C7N), refer to figure "PNX85xx
CMOS interface to PNX5050 or CYCLONE II" for details.
7H00-7
PNX85xx
Figure 9-17 PNX85xx LVDS interface to PACIFIC 3 (diagram B04O)
7H00-8
PNX85xx
Figure 9-18 PNX85xx CMOS interface to CYCLONE II (diagram B04O)
Q523.1U LA 9.
H_16770_131.eps
240707
H_16770_132.eps
240707
EN 151
