EN 14 4. Q523.1U LA
4 4

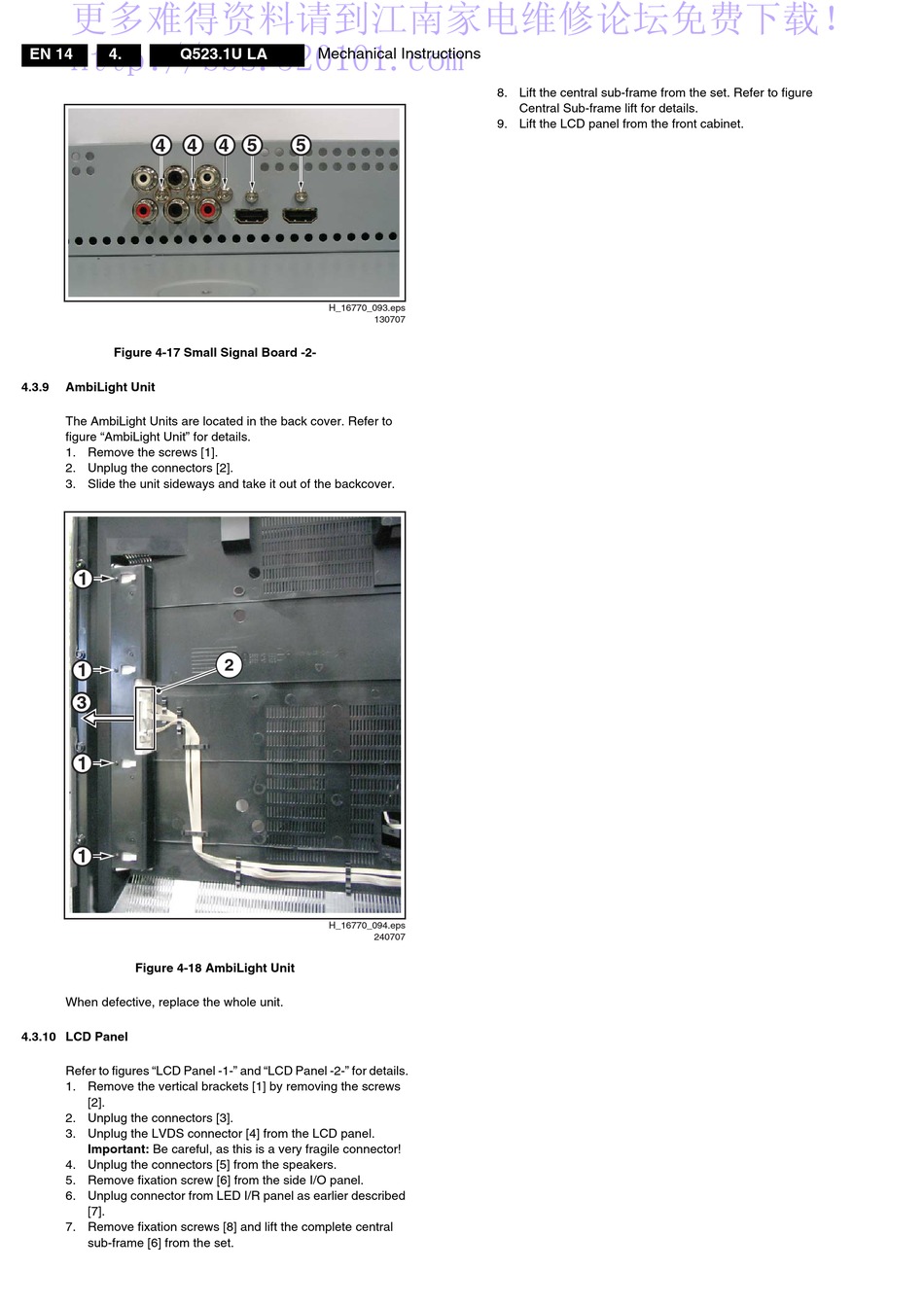

Figure 4-17 Small Signal Board -2-
4.3.9 AmbiLight Unit
The AmbiLight Units are located in the back cover. Refer to
figure "AmbiLight Unit" for details.
1. Remove the screws [1].
2. Unplug the connectors [2].
3. Slide the unit sideways and take it out of the backcover.
1
1
3
1
1
Figure 4-18 AmbiLight Unit
When defective, replace the whole unit.
4.3.10 LCD Panel
Refer to figures "LCD Panel -1-" and "LCD Panel -2-" for details.
1. Remove the vertical brackets [1] by removing the screws
[2].
2. Unplug the connectors [3].
3. Unplug the LVDS connector [4] from the LCD panel.
Important: Be careful, as this is a very fragile connector!
4. Unplug the connectors [5] from the speakers.
5. Remove fixation screw [6] from the side I/O panel.
6. Unplug connector from LED I/R panel as earlier described
[7].
7. Remove fixation screws [8] and lift the complete central
sub-frame [6] from the set.
Mechanical Instructions
4 5 5
H_16770_093.eps
130707
2
H_16770_094.eps
240707
8. Lift the central sub-frame from the set. Refer to figure
Central Sub-frame lift for details.
9. Lift the LCD panel from the front cabinet.
