Circuit Descriptions, Abbreviation List, and IC Data Sheets
9.10.8 Diagram B08F, AD8191ASTZ (IC 7J27)
Block Diagram
Pin Configuration

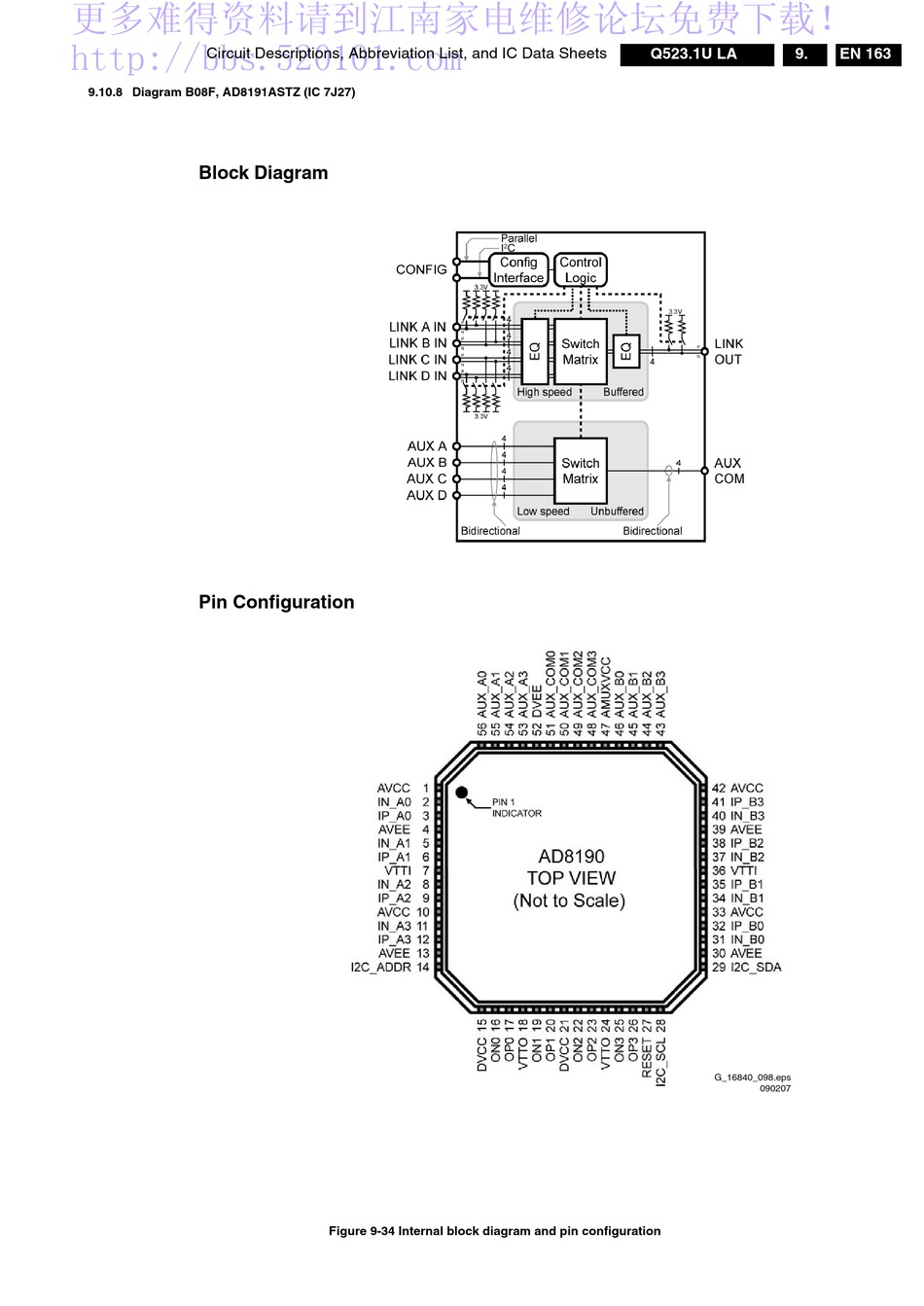

Figure 9-34 Internal block diagram and pin configuration
Q523.1U LA
9.
G_16840_098.eps
090207
