Reset and power supply supervisor
internal circuitry (no additional component needed, thanks to fully embedded reset
controller).
When the internal reset is OFF, the following integrated features are no longer
supported:

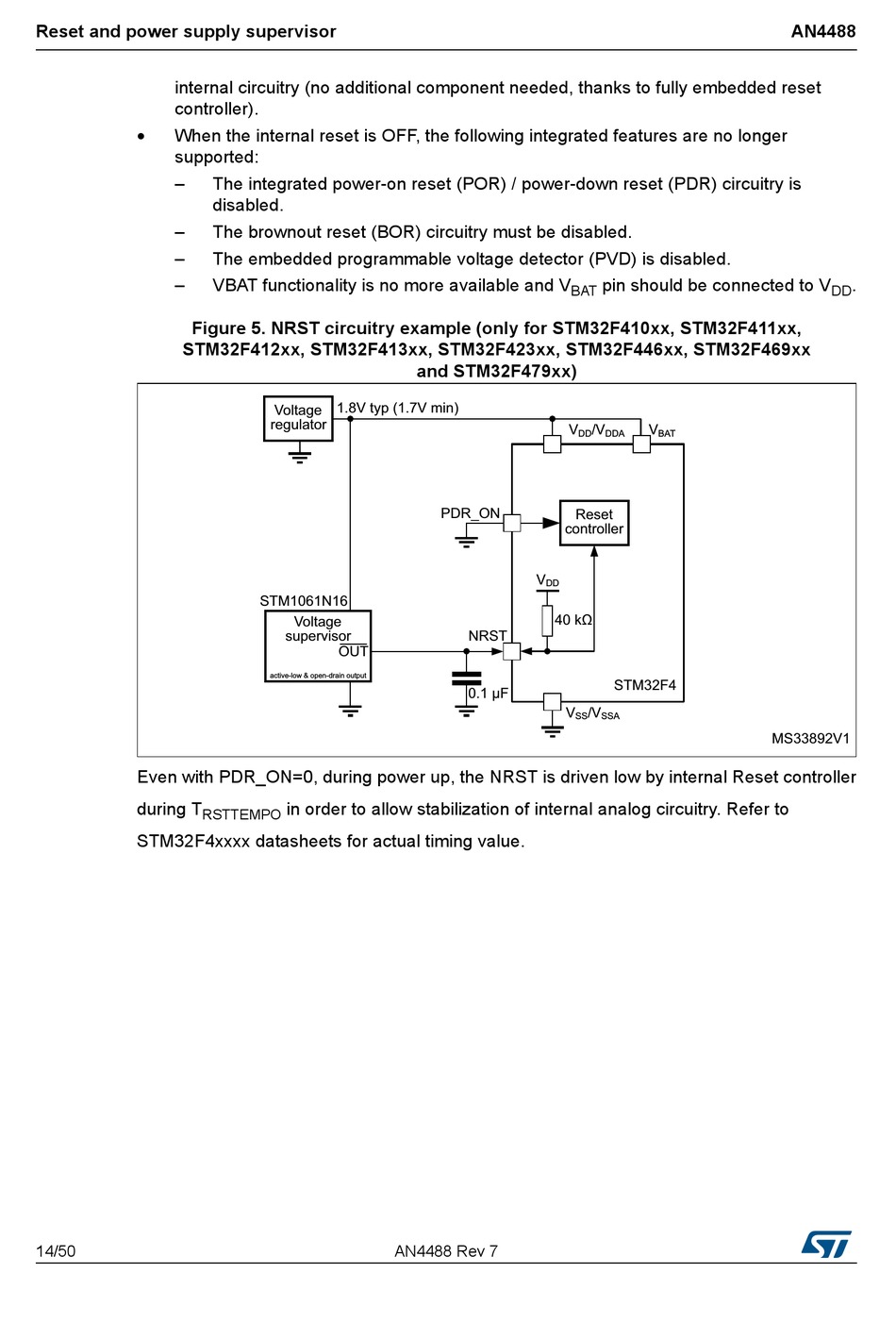

Figure 5. NRST circuitry example (only for STM32F410xx, STM32F411xx,

STM32F412xx, STM32F413xx, STM32F423xx, STM32F446xx, STM32F469xx

Even with PDR_ON=0, during power up, the NRST is driven low by internal Reset controller
during T
RSTTEMPO
STM32F4xxxx datasheets for actual timing value.
14/50
The integrated power-on reset (POR) / power-down reset (PDR) circuitry is
disabled.
The brownout reset (BOR) circuitry must be disabled.
The embedded programmable voltage detector (PVD) is disabled.
VBAT functionality is no more available and V
in order to allow stabilization of internal analog circuitry. Refer to

and STM32F479xx)
