Powering The Unit On/Off; Accessing Menus/Passwords - Data Aire Mini dap4 Installation, Operation & Maintenance Manual

The main loop will flip though a series of screens that allow you to see set-points, current unit status (temperature,
relative humidity and operating mode – cooling, humidification, etc.).
2.1

POWERING the Unit ON/OFF

Before powering unit ON, check that power is available and proper connections have been completed.
Turn the disconnect switch to the ON position. The controller display keys and screen will illuminate and the proces-
sor will conduct a self-test (the screen will remain illuminated with no messages until the testing is complete). The
self-test takes approximately 20 seconds. Once completed, the Main Menu screen will be displayed. For initial pro-
gramming of setpoints, alarms, delays, etc., it is not necessary to have the unit ON. With the unit in the "OFF by Key"
mode, all settings are available to view and change (other than Menus J – Factory Settings and L – Configure Inputs/
Outputs) if the proper password is entered.
The Main Menu screen will display the unit type, date and time, and unit status. In addition, the screen will scroll and
display the temperature, relative humidity and operating mode.
The Unit Status will indicate the unit: "OFF by Key"
The unit may be turned ON at any time. Hold the ESC key for approximately 5 seconds. The display will continue to
scroll and display messages. At the same time the unit status is changed to "Unit On". Once powered there will be a
5-600 second start delay indicated by "Time Before Start: XXs".
Note: The start time delay is programmable from 5-600 seconds (Menu J – Factory Settings). The factory setting is 5
seconds.
2.2

ACCESSING MENUS/PASSWORDS

To access any Menu a numerical password is required. There are two levels of password:
• SERVICE LEVEL
The SERVICE LEVEL password allows viewing and changes to the following Menus:
A. On/Off
B. Setpoint
C. Clock/Scheduler
The FACTORY LEVEL password allows changes to the SERVICE LEVEL Menus plus the following Menus:
J. Factory Settings
The ZONE MASTER is an optional feature and requires a factory provided activation code. Contact factory if ZONE
MASTER control is required.

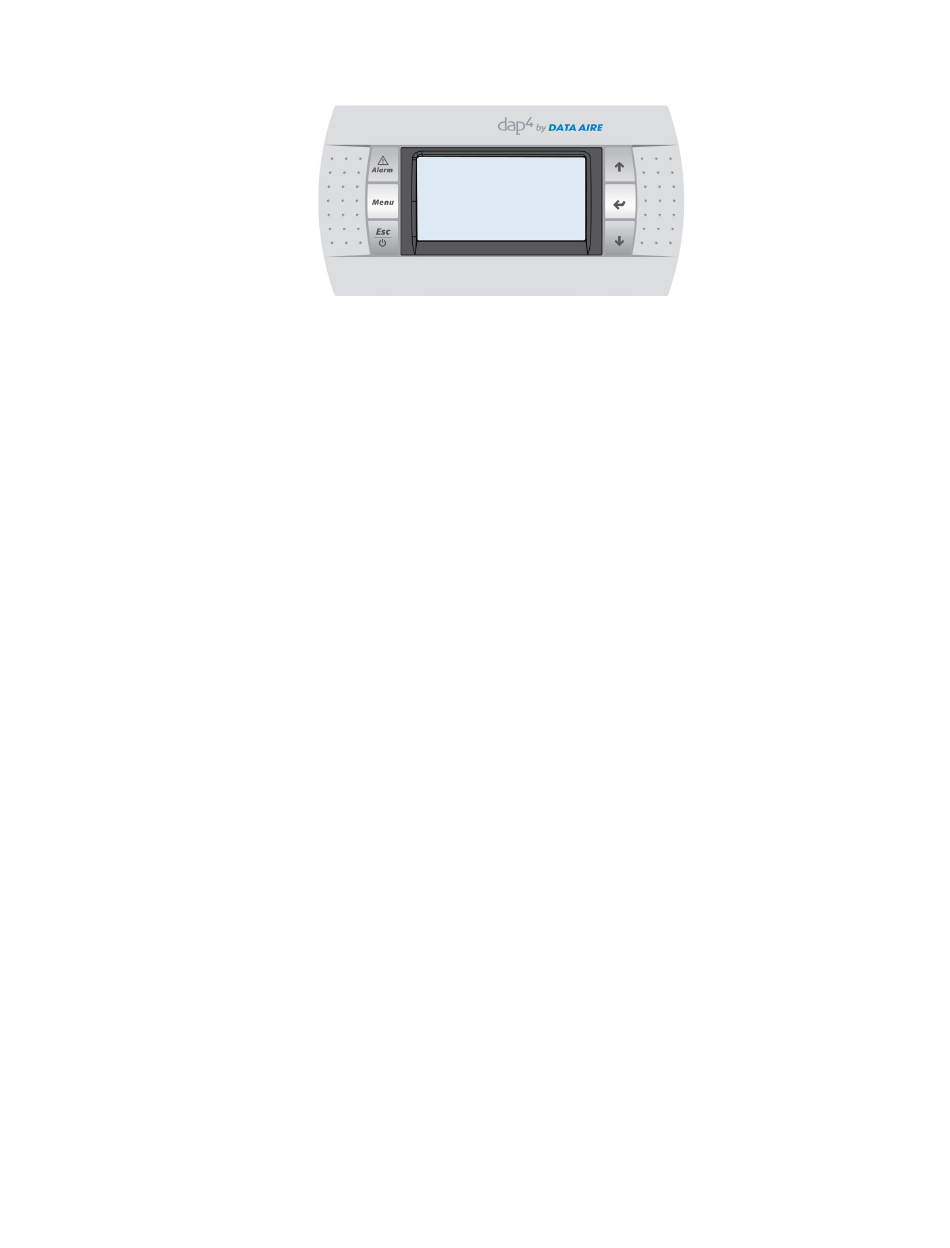

8 • Mini dap4 User Manual
MINI-PLUS
08/02/11
Unit Status: UnitOn
Temp SP 72.0 0 Hum SP 50%
• FACTORY LEVEL
D. Input/Output G. Network Configuration
E. Historical Data H. Calibrate Sensors
F. Information I. Manual Control
L. Configure Inputs/Outputs
08:25
K. Alarms/Limits
