Move the cursor by pressing the ENTER key. Move the cursor to change the setting.
The following can be changed by pressing the DOWN key:
Enable – ON or OFF
Note: If (Enable) OFF is selected the High Res, Offset and Value will not be displayed.
With Enable ON, High Res., Offset and Value will be displayed and values changed.
Once a selection or selections have been made, move the cursor to the title block by pressing the ENTER key.
▼ Press the DOWN key to view the next screen.
With Enable ON, Normal, Minimum, Maximum, Offset and Value will be displayed and values changed.
Once a selection or selections have been made, move the cursor to the title block by pressing the ENTER key.
▼ Press the DOWN key to view the next screen.
The following will be displayed (values are for reference only):
Note: If (Enable) OFF is selected the High Res, Offset and Value will not be displayed.
With Enable ON, High Res., Offset and Value will be displayed and values changed.
Once a selection or selections have been made, move the cursor to the title block by pressing the ENTER key.
▼ Press the DOWN key to view the next screen.
The following will be displayed (values are for reference only):
Note: If (Enable) OFF is selected the High Res, Offset and Value will not be displayed.
With Enable ON, High Res., Offset and Value will be displayed and values changed.
Once a selection or selections have been made, move the cursor to the title block by pressing the ENTER key.

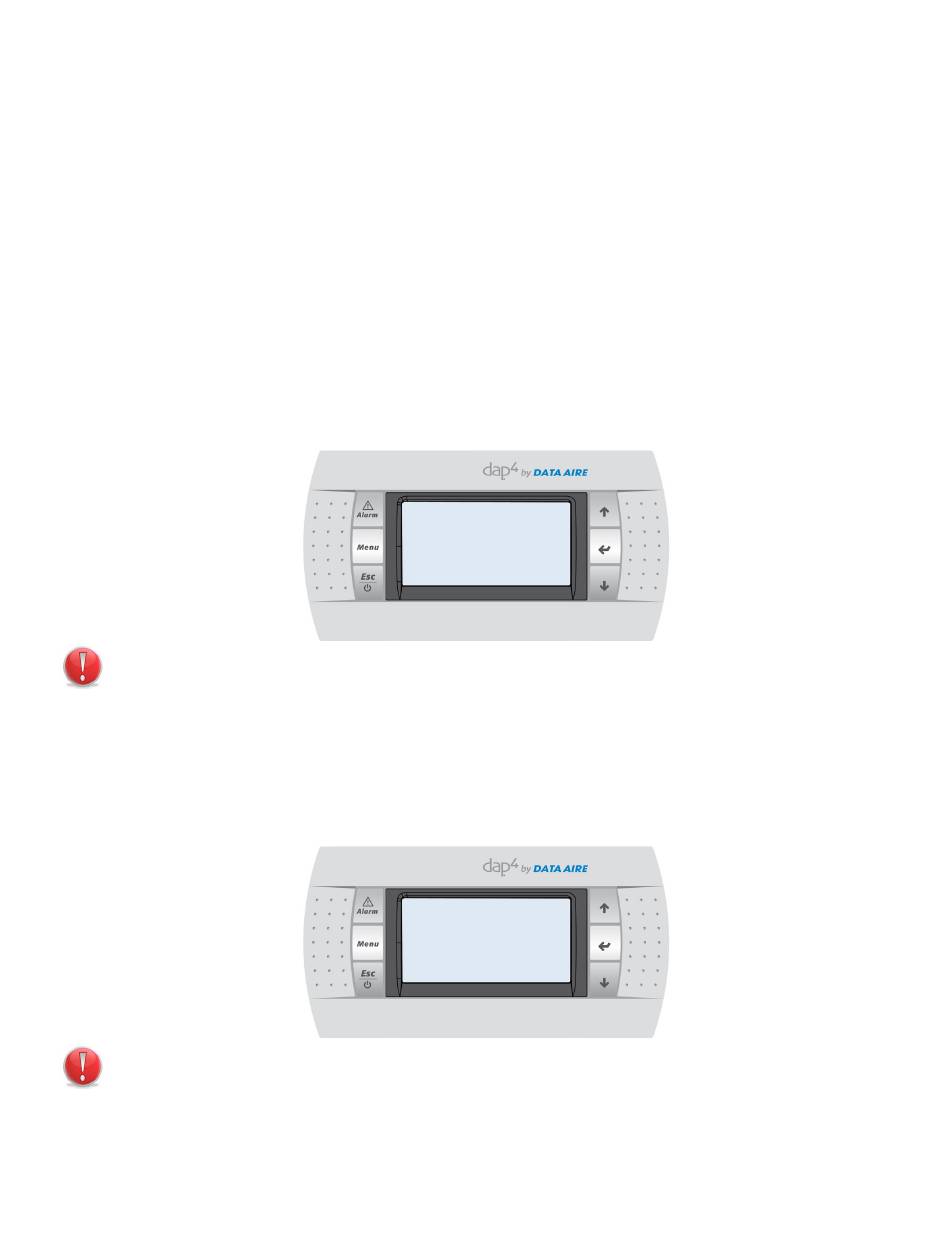

38 • Mini dap4 User Manual
Analog Input
Discharge Air Sensor
Enable:
ON Channel: B3
High Res.
NTC
Offset:
0.0
Value:
74.1
Analog Input
Chilled Water Sensor
Enable:
ON Channel: B4
High Res.
NTC
Offset:
0.0
Value:
74.1
