3.7 MENU G – NETWORK CONFIG
MENU G allows selection of the BMS protocol (Service Level password is required for entry)
Once password has been entered, press the UP or DOWN key until "G. Network Config" appears and is highlighted.
Press the ENTER key.

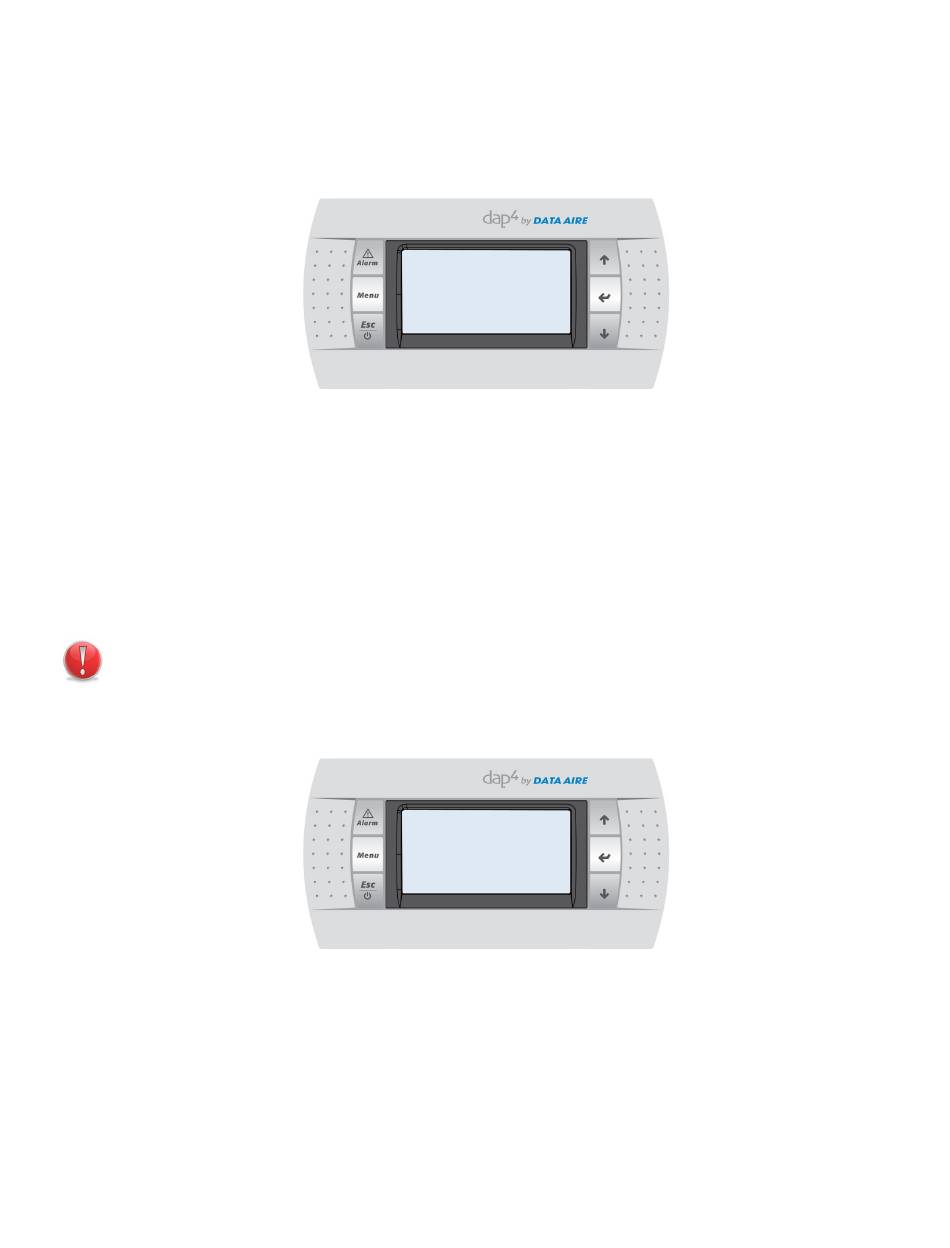

The following will be displayed (values are for reference only):
Only the protocol can be changed. The selections are as follows:
LON
PCOLOAD*
*PCOLOAD, MODEM, Modbus Ext and CAREL are for future use and should not be used.
Once the selection has been made, press the ENTER key and the cursor will move to the title block.
If MODBUS protocol is selected, the MODBUS network address and port baud rate can be programmed on the next
screen.
Note: Heartbeat is for BMS to notify the controller that there is an active connection.
To move to the next screen, press the DOWN key.
The following will be displayed (values are for reference only):
The address range is 0 to 999
The available baud rates are: 1200, 2400, 4800, 9600, and 19200
Once the selection has been made, press the ENTER key to move the cursor to the title block.
▼ Press the ESC key to return to the Main Menu. Scroll to the next menu to be viewed or press the ESC key again to
return to the normal operating mode.
