3.11 MENU K – ALARMS and LIMITS
MENU K is for setting the control alarm and limits. This requires the Service Level password and entry should be
limited to service personnel starting or servicing the equipment.
In the Main Menu screen press the UP or DOWN key until "K - Alarms & Limits" appears and is highlighted. Press the
ENTER key.

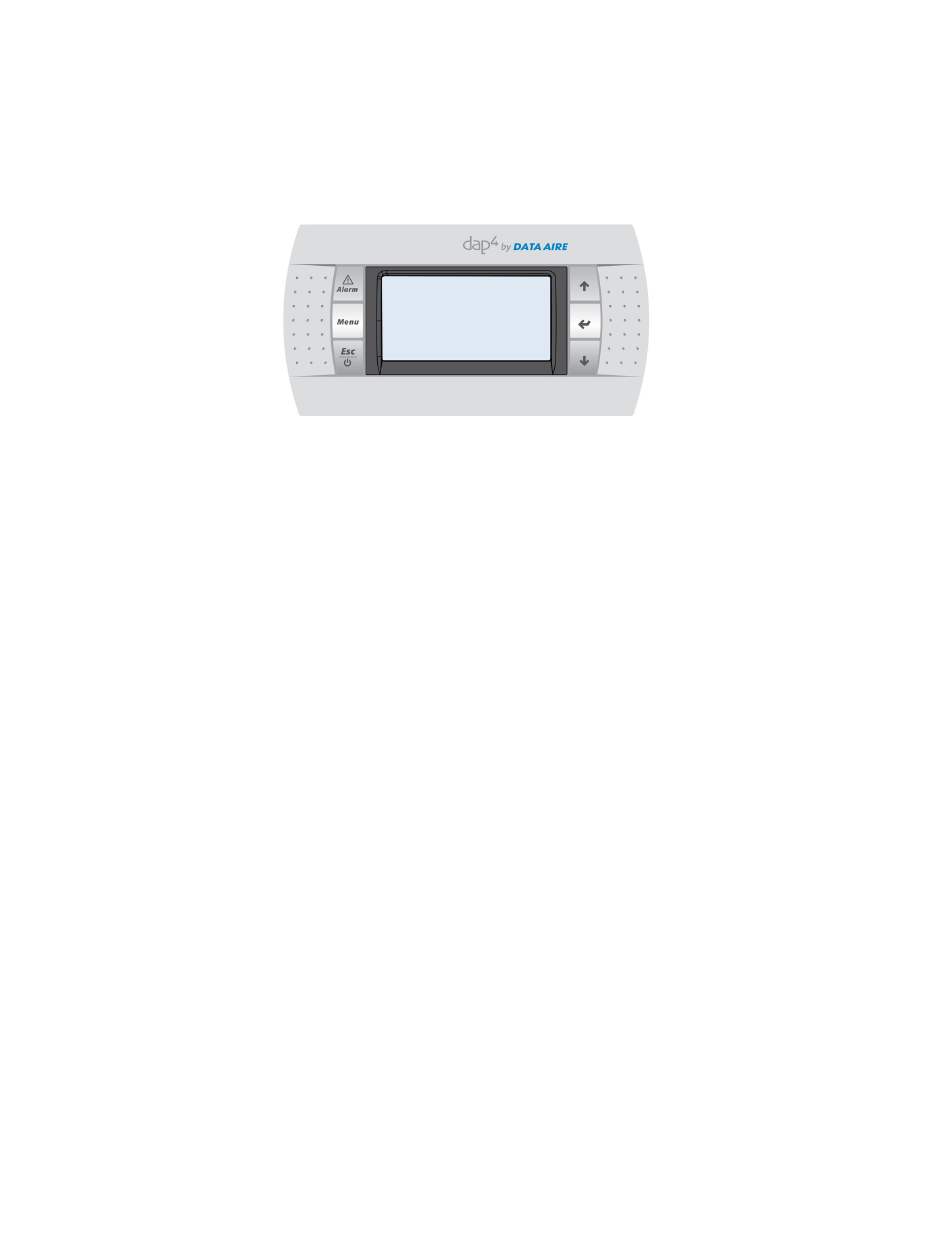

The following will be displayed (inputs are for reference only):
▼ Press the ENTER key to advance to Audio Mode. The cursor will flash on the current selection. Press the UP or
DOWN keys to change the selection.
Available selections for Audio Mode are:
Once a selection has been made, press the ENTER key to advance to Pwr-Up. The cursor will flash on the current
selection.
Available selections for Pwr-Up are:
Note: This setting determines what the unit will do on a loss power.
In the Auto, No Alarm setting the unit will automatically power up once power is restored. The unit will go through its
self-test and start delay prior to the fan(s) beginning operation.
In the Auto, With Alarm setting the unit will automatically power up once power is restored and display an alarm condi-
tion. The unit will go through its self-test and start delay prior to the fan(s) beginning operation.
In the Man, Clr Alarm setting unit start is manual. It will display an alarm condition.
Once a selection has been made, press the ENTER key to advance to Maint Due Msg. The cursor will flash on the
current selection.
Available selections for Maint Due Msg are:
Note: If hours are selected and not cleared after maintenance, an alarm will sound.
Once a selection or selections have been made, move the cursor to the title block (Alarm Settings) by pressing the
ENTER key
▼ Press the DOWN key to view the next screen.
28 • Mini dap4 User Manual
Alarm Settings
Audio Mode: None
Pwr-Up: Auto, No Alarm
Maint Due Msg: None
None
Full On
Long Beep
Short Beep
Auto, No Alarm
Auto, With Alarm
Man, Clr Alarm
None
0 to 1000 hours
