Data Aire Mini dap4 Installation, Operation & Maintenance Manual page 13

Week Day Scheduler (only appears if the above Set-Back Enable selection was YES)
From the "Set-Back Settings" screen (with cursor at the top), press the DOWN key.

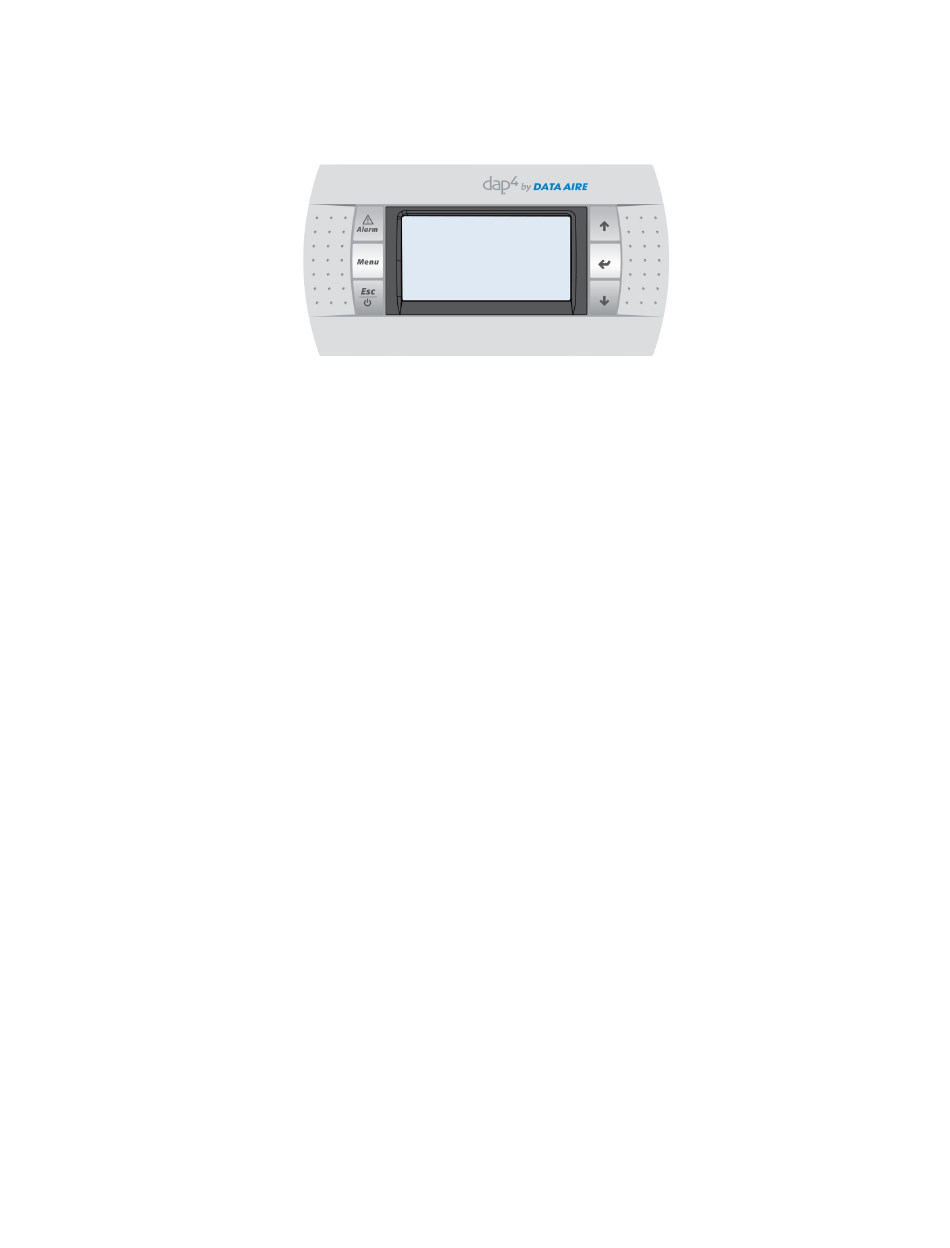

The following will be displayed (values are for reference only):
Screen Inputs
Press the ENTER key to move the cursor. The cursor will flash at the day (Monday). By pressing the UP or DOWN
key all the days of the week can be viewed (or selected).
Press the ENTER key. The cursor will flash on the "Copy to: Day" Pressing the UP or DOWN key all the days of the
week can be viewed.
The "Copy to:" function allows the user to copy setting from other days without going through the settings routine. By
pressing the ENTER key, position the cursor on the Day: Press the UP or DOWN keys to scroll through the days
of the week. Select the day that has been programmed and is to be copied. Press the ENTER key. The cursor
will flash on the "Copy to:". Scroll through the days using the UP or DOWN key. Select the day to copy. Press the
ENTER key. The cursor will flash by the NO message. Press the UP or DOWN key to change for to YES. Press the
ENTER key. The display will have a SUCCESSFUL COPY message (which quickly is automatically removed).
The cursor will return to the title block. Repeat the same step for each day to be copied or select ALL.
▼ Press the ENTER key. The cursor will flash on the "NO or YES" setting. Pressing the UP or DOWN key will
change from YES to NO or NO to YES. Leave in the NO setting until selections have been made.
▼ Press the ENTER key. The cursor will flash on the first time setting. All time is on a 24 hour clock (i.e. 6:00 PM =
1800 hours). The start time (line # 1) is selected by pressing the UP or DOWN key.
▼ Press the ENTER key to change the hour. By pressing the UP or DOWN key, the hour will change. Once the cor-
rect hour is selected, press the Enter key.
The cursor will flash on the minutes. By pressing the UP or DOWN key, the minutes will change. Once the correct
minutes are selected, press the Enter key.
The cursor will be positioned on the settings input. Press the DOWN key to view the available selections:
Set-Back
Normal SP (setpoint)
Turn Off
▼ Press the ENTER key. The cursor will flash on the second time setting.
Repeat the steps to set the second time setting (and third and fourth if used).
Once the settings are complete, with the cursor in the title block, press the DOWN key to advance to the next screen
or press ESC to return to the Main Menu or press the ESC key to return to normal operation.
13 • Mini dap4 User Manual
Week Day Scheduler
Day: MONDAY
Copy to: Monday No
Setting
1: 06:00 Normal SP
2: 17:00 Normal SP
3: --:-- ---------
4. --:-- ______
