2.0
GETTING STARTED
The Mini dap4 consists of two main components: the control module and the display panel. The control module is
located in the electrical panel. The display panel is remotely mounted. The two are connected by special telephone
type cable harness (units may be ordered with longer cables for optional remote wall mounting).
Note: Factory cable is required. This is a custom made cable and must be ordered from Data Aire. A regular tele-
phone cable will not operate.
All data displayed on the display screen originates from the control module. The display panel has a backlit LCD (liq-
uid crystal display). There are six keys on the face of the display panel to retrieve or enter settings.

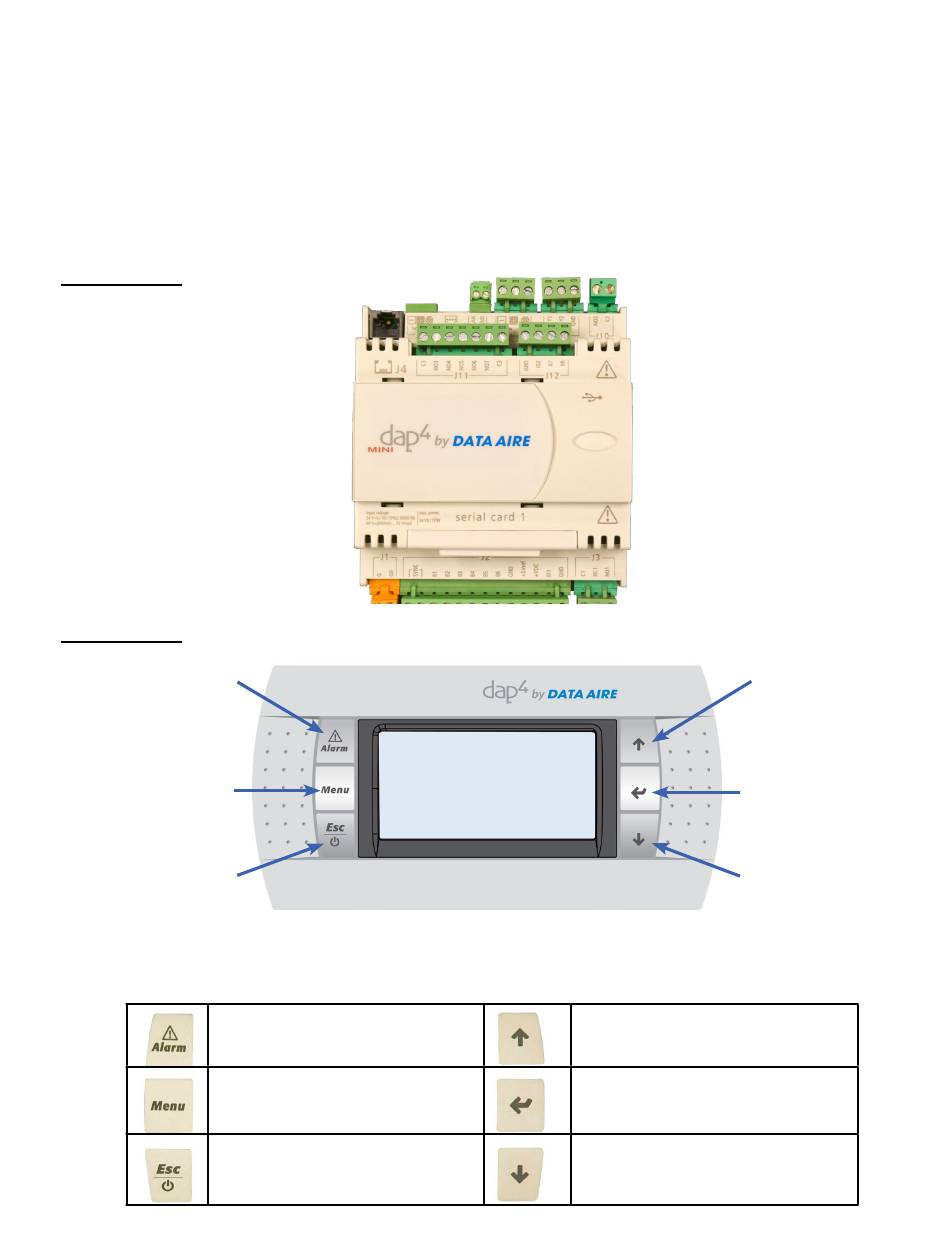

Control Module
Display Module
Display Alarm
Enter Menu
Return to
previous
screen or
hold to turn
On or OFF
Button Functions
7 • Mini dap4 User Manual
Allows viewing of active alarms
Silences audible alarms
Resets active alarms
Allows entry to Main Menu
Return to previous screen
Hold five seconds to turn ON or
OFF
Up
Enter/Select
Down
Allows scrolling to next screen
Allows values changes (increase)
Allows entry to Menus
Advances cursor
Returns to previous screen
Allows value changes (decrease)
