Overview of the System

1 Overview of the System
Copying data
4
The UFI11A INTERBUS fieldbus interface serves as a gateway for connecting one or
more MOVIDRIVE, MOVIDRIVEcompact or MOVITRAC 07 inverters to INTERBUS. Se-
veral inverters can be connected to the INTERBUS UFI11A interface via the SBus. The
INTERBUS UFI11A interface provides the translation between the INTERBUS and the
SBus.

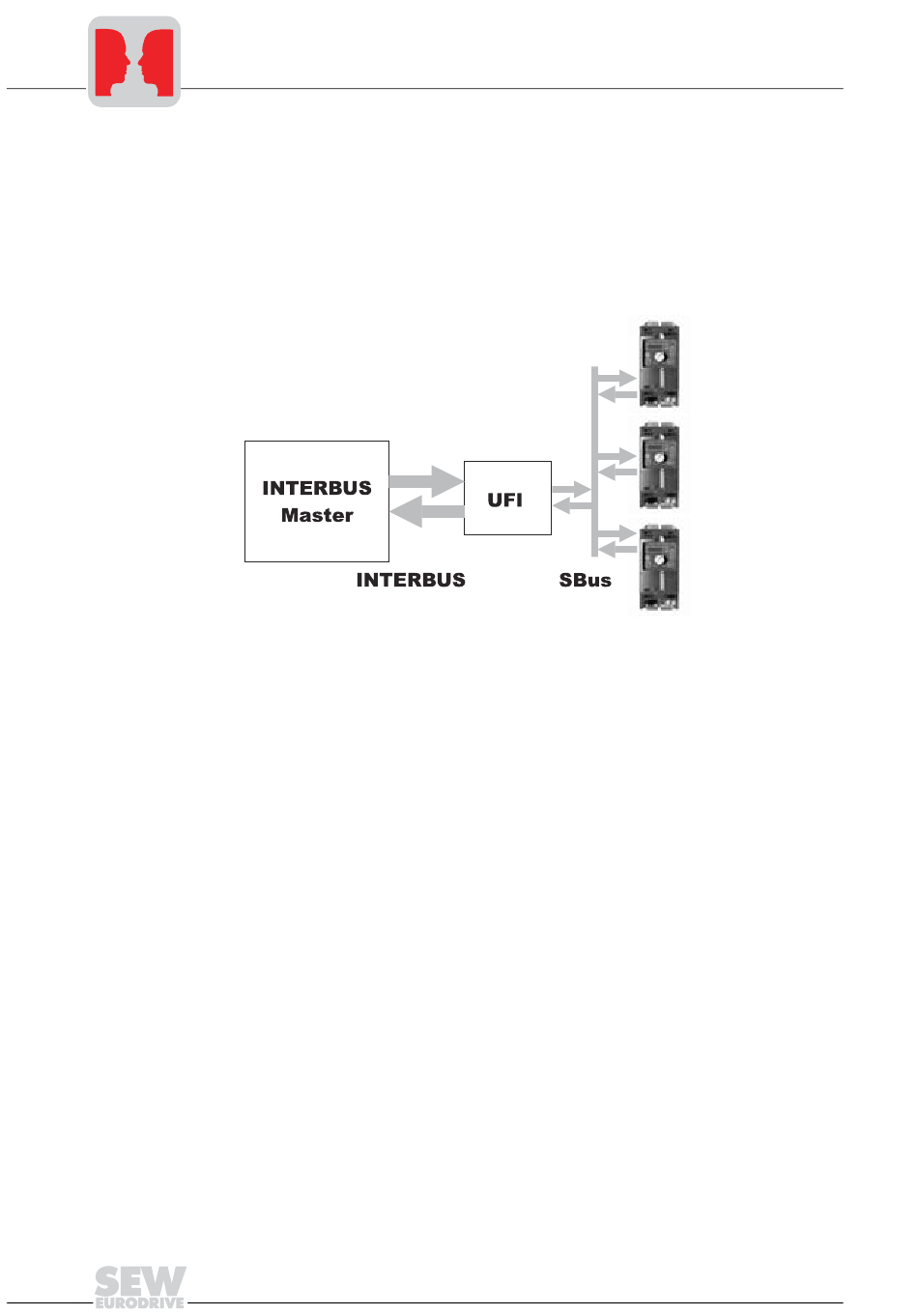

Fig. 1: Overview of the system: INTERBUS master – UFI11A – inverter
The UFI11A settings can be copied with the UBP11A parameter module from UFI11A
to UFI11A. For safety reasons, all inverters connected to the UFI11A must be turned off
when writing data.
05373AXX
