3.4 Configuration of the fieldbus master
You will find detailed information in the section "INTERBUS interface."
•
•
•
•
•
Manual – Fieldbus Interface INTERBUS UFI11A
Installation and Operation with Autosetup

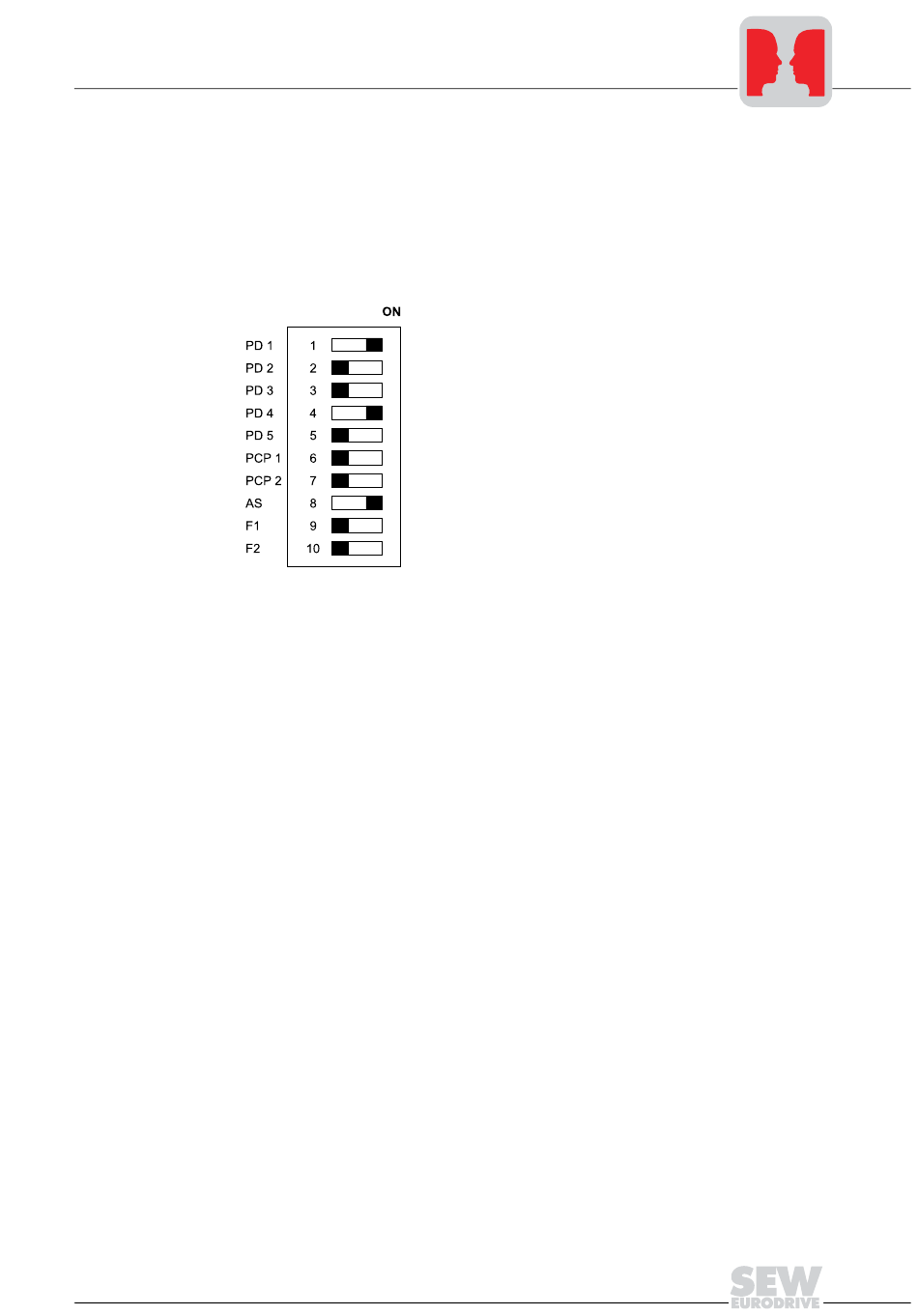

Set the required process data length via DIP switches 1 ... 5. You will need three pro-
cess data words for each drive inverter connected to the UFI11A. That means you
will have to set 9 words in case you are operating three MOVITRAC
change in the DIP switch settings will become active after turning the UFI11A off and
on again.
Start the "CMD Tool" project planning software for your INTERBUS interface.
Enter the bus setup via "Configuration frame / Read in" or "Read in configuration
frame."
Assign program addresses of the control program to the INTERBUS process data of
the inverters. This assignment takes place via the context menu "Process data" or
"Process data manager."
Enhance the control program by the data exchange with the UFI11A.
