Configuring The Fieldbus Master - SEW-Eurodrive INTERBUS UFI11A Manual

4
Installation and Operation with a PC
4.5 Configuration of the fieldbus master
18
• You can see the data being exchanged between fieldbus master and UFI11A with
the process data monitor.
• You will have to enable the unit via the terminals to control the inverter via fieldbus.

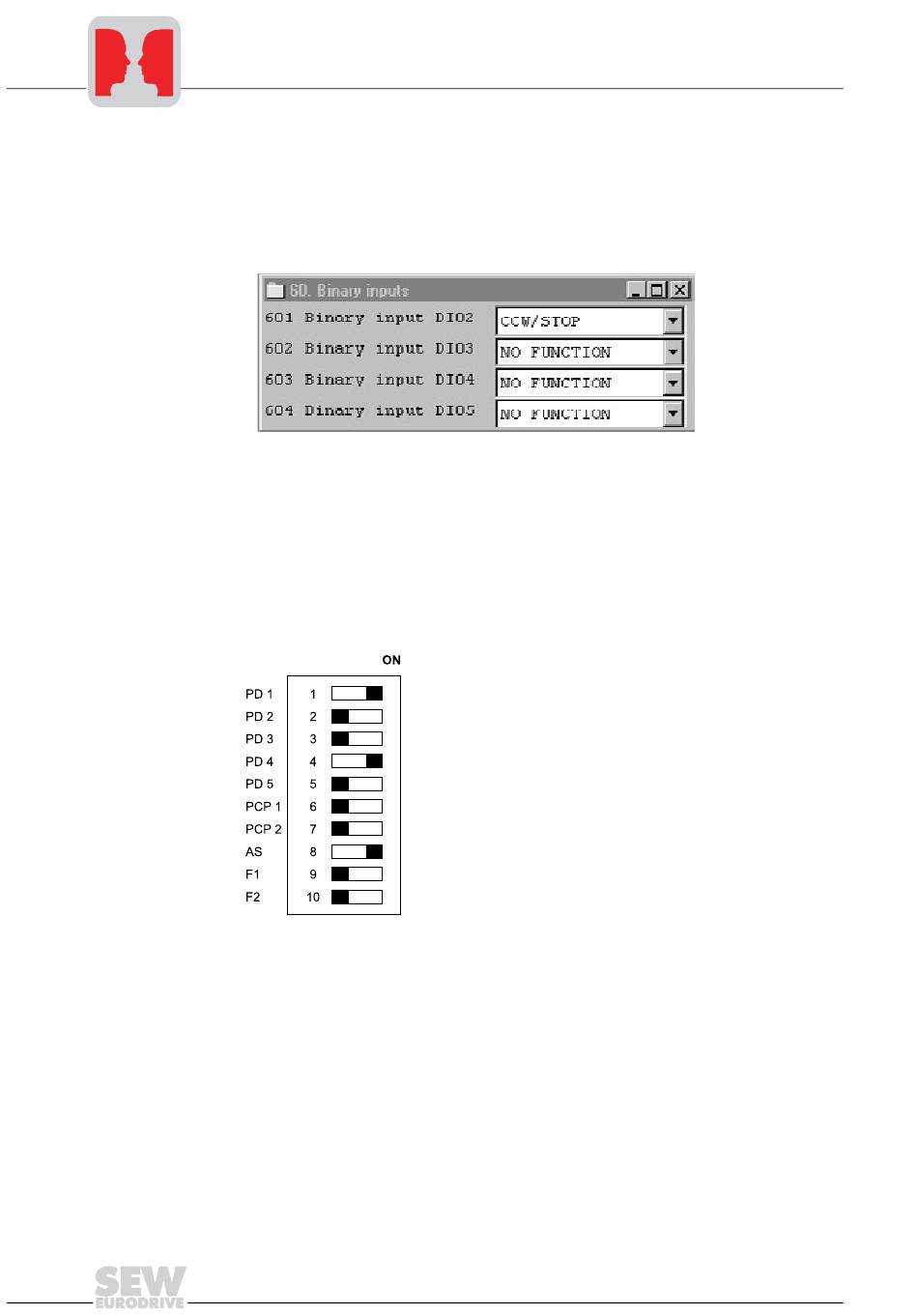

You have already connected the terminals. Select the first inverter with address 1 in
the window "Connected units" to check the pinout and start "Shell." Make the follo-
wing settings for the pinout of the MOVITRAC
• Repeat this step for all inverters listed in the window "Connected units."
You will find detailed information in the section "INTERBUS interface."
• Set the required process data length via DIP switches 1 ... 5. You will need three pro-
cess data words for each drive inverter connected to the UFI11A. That means you
will have to set 9 words in case you are operating three MOVITRAC
change in the DIP switch settings will become active after turning the UFI11A off and
on again.
• Start the "CMD Tool" project planning software for your INTERBUS interface.
• Enter the bus setup via "Configuration frame / Read in" or "Read in configuration
frame."
• Assign program addresses of the control program to the INTERBUS process data of
the inverters. This assignment takes place via the context menu "Process data" or
"Process data manager."
• Enhance the control program by the data exchange with the UFI11A.
®
