eBUS Button Panel EU and MK Series • Setup Guide (Continued)
®
EBPs that are relatively far from the control processor (see the eBUS Technology Reference Guide on
details) can be connected to an optional Extron PS 1220EB eBUS power supply and distribution hub, or an Extron PS series
desktop power supply as shown in the following diagrams.
COM 1 COM 2 DIGITAL I/O
Tx Rx G RTS CTS Tx Rx G 1 2 3 4
POWER
VOL RELAYS eBUS
12V
1.0A MAX
V C G 1 2 C +V +S -S G
PWR OUT = 6W
IPCP Pro
X

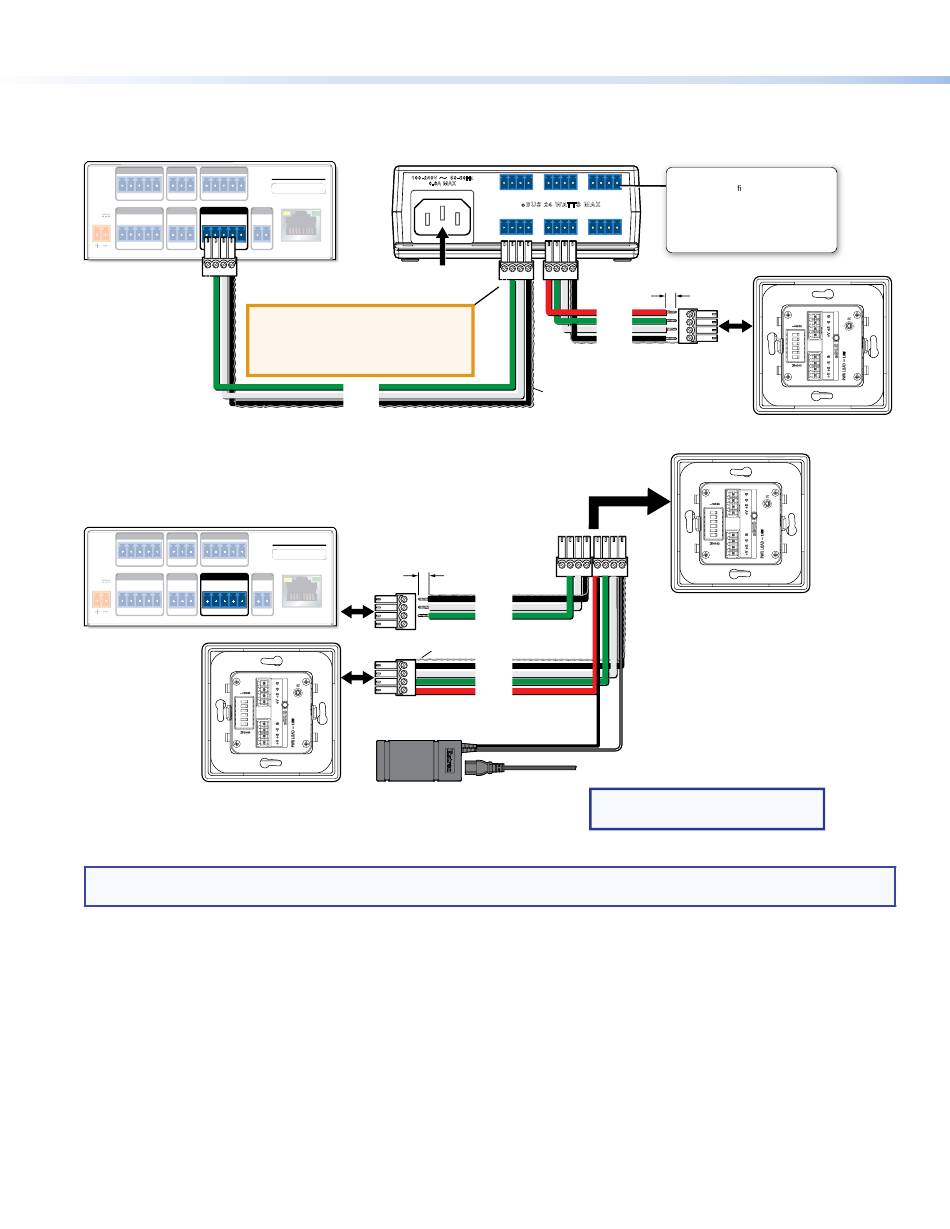

Cabling an eBUS System with an PS 1220EB Power Supply and Distribution Hub
Figure 12.
COM 1 COM 2 DIGITAL I/O
Tx Rx G RTS CTS Tx Rx G 1 2 3 4
POWER
VOL RELAYS eB U S
12V
1.0A MAX
V C G 1 2 C +V +S -S G
PWR OUT = 6W
IPCP Pro
EBP
Cabling EBP Panels with an Extron PS Series Desktop Power Supply
Figure 13.
NOTE: Although the rear panels for the EBP 104 EU and 104 MK are different from the rear panel shown in figures 12 and 13,
power and eBUS cables are connected in exactly the same way.
