Wiring methods shall be in accordance with the National Electrical Code/NFPA 70/ANSI, and with all local
codes and authorities having jurisdiction.
Wiring should be UL Listed and/or Recognized wire suitable for the application.
eBridge1PCT and eBridge1PCR are not intended to be connected to outside plant leads and should be installed
indoors within the protected premises. eBridge1PCT and eBridge1PCR are intended for indoor use only.
1. eBridge1PCR installation:
a. Secure unit to desired mounting surface with a proper fastening device utilizing the unit's
mounting hole (Fig. 2a, pg. 3). Unit should be mounted in proximity to ethernet switch/network,
NVR or video server.
b. Connect 24VAC Class 2 plug-in transformer or 24VDC (polarity not observed) Class 2 power supply
to wire insert connector [Power Input] (Fig. 1, pg. 2). Use 22AWG-16AWG wire for this connection.
c. Connect structured cable from ethernet switch/NVR (network video server) to RJ45 jack marked
[10/100BaseT] (Fig. 2, pg. 3).
d. Connect Coax cable to BNC connector marked [Coax] (Fig. 2, pg. 3).
2. eBridge1PCT installation:
a. Secure unit to desired mounting surface with a proper fastening device utilizing the case's
mounting hole (Fig. 2a, pg. 3). Unit should be mounted in proximity of camera/device.
b. Connect structured cable from IP camera/device to RJ45 jack marked [10/100BaseT] (Fig. 2, pg. 3).
c. Connect Coax cable to BNC connector marked [Coax] (Fig. 2, pg. 3).
Note: The eBridge1PCRT is designed to accommodate Megapixel, HD720, HD1080 and VGA (SD) cameras.
It is important to note that some high resolution and high frame rate cameras may demand faster headend
processing ability, such as a PC graphics card to present a quality image. If the headend processing equipment
is insufficient in speed, the image may show pixelation and latency. It is advisable to pre-test system if unsure.
Alternatively, frame rate and resolution may be reduced to accommodate system equipment.
Parameter
Description
Connections
BNC for Coax link. RJ45 for Ethernet link.
Input power
24VDC/1,000mA or 24VAC/900mA.
requirements
Blue: Coax Link.
Yellow (RJ45 connector): On - Link, Off - No Link, Blinking - Activity.
Indicators
Green (RJ45 connector): On - 100Base-TX, Off - 10Base-T.
Green: Power.
Operating Ambient Temperature:
UL60950-1
eBridge1PCR:
Environmental
eBridge1PCT for 15W: -40ºC to 75ºC (-40ºF to 167ºF).
Conditions
Relative humidity: 85% +/- 5%.
Storage Temperature: -30ºC to 70ºC (-22ºF to 158ºF).
Operating Altitude: -304.8 to 2,000m.
Regulatory
UL/CUL Listed for Information Technology Equipment (UL 60950-1).
Compliance
CE approved. C-Tick compliant.
Weights (approx.)
Product: 0.4 lbs. (0.18 kg); Shipping: 1 lbs. (0.45 kg).

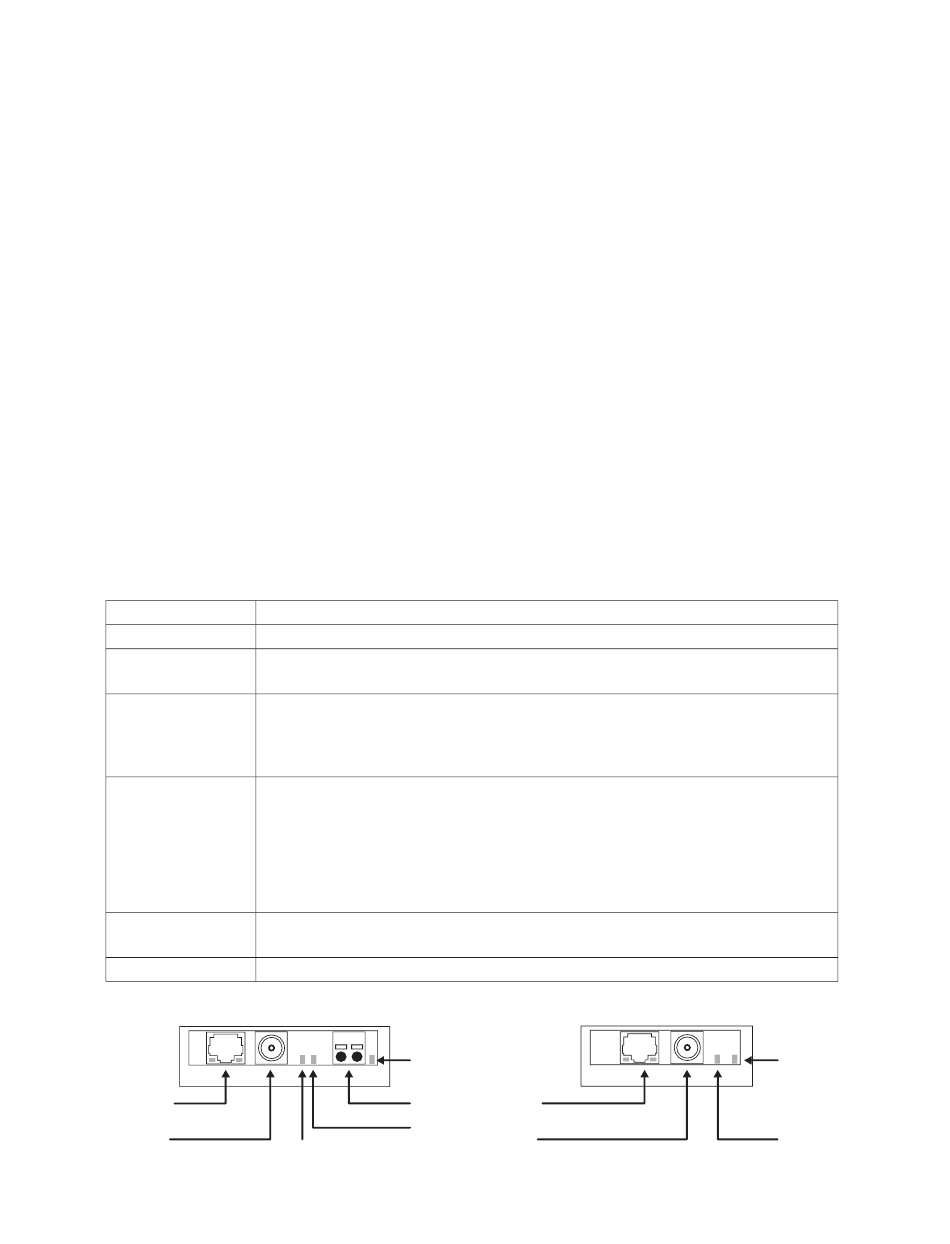

Fig. 1
eBridge1PCR
Structured
Cable from
Ethernet Switch/NVR
Coax
Cable from
eBridge1PCT
Blue LED
indicates
Coax Connection
- 2 -
All manuals and user guides at all-guides.com

Installation Instructions:

Technical Specifications:

-20ºC to 45ºC (-4ºF to 113ºF).
Green LED
indicates
Power
24VAC/VDC
Cable from
Input
IP Camera/Device
Yellow LED
indicates
Cable from
PoE
eBridge1PCR
eBridge1PCT
Structured
Coax
Green LED
indicates
Power
Blue LED
indicates
Coax Connection
eBridge1PCRT
