Altronix NetWaySP4P/NetWaySP4P2 Fiber Optic Transceivers provide four (4) 1Gb SFP ports and four (4) ports for
up to 120W per port to be transmitted over composite fiber (powered) cable (fiber + copper combined) to NetWay
Spectrum PoE Hardened Switches. NetWaySP4P/NetWaySP4P2 can be used for standard fiber cable applications
as well.
Agency Listings:
• UL/cUL
• CE
Input:
• 115VAC, 60Hz, 3.25A or 230VAC, 50/60Hz, 2A.
Power:
NetWaySP4P:
• Four (4) 56VDC non power-limited outputs
up to 120W max. full power per port.
Total power: 240W.
• IEEE 802.3af and IEEE 802.3at compliant
(PoE/PoE+).
• Short circuit protection.
NetWaySP4P2:
• Four (4) 56VDC power-limited outputs up to
60W max. full power per port.
Total power: 240W.
• Short circuit protection.
Fiber Port:
• Four (4) Gigabit SFP ports.
• Use with SFP module 1000Base-X (1Gb),
compliant to Class 1 laser product (not included).
Wiring methods shall be in accordance with the National Electrical
Code (ANSI/NFPA70), local codes, and the authorities having
jurisdiction. NetWaySP4P/NetWaySP4P2 is not intended to be
connected to outside plant leads. These products are for indoor use
only and must be installed within the protected premises.
NetWaySP4P must be installed in a restricted access area.
NetWaySP4P2, if battery bracket is removed, must be installed in a
restricted access area (Fig. 1b, pg. 3). The outputs are of a
non-limited power source.
For non-limited power sources, additional protective circuitry and/or an appropriate fire enclosure for the products
supplied by this device are required.
1. Attach mounting brackets to the unit for rack or wall mount installation (Fig. 4 or 5, pg. 8).
Affix rubber pads to the unit for shelf installation (Fig. 6, pg. 8).
2. Secure the unit in a rack or on a wall, or place unit on a shelf as desired.
Note: The following factors should be taken into consideration when installing these rack mount units:
a. The unit is to be installed in a space where the maximum ambient temperature does not exceed
104ºF (40ºC).
b. Take care to ensure that there is sufficient air flow around the unit and that obstructions do not impede it.
c. When mounting units in a rack, take care to avoid uneven loading which can cause a hazardous condition.
NetWaySP4P / NetWaySP4P2 Installation Guide
UL 60950-1 (Information
Technology Equipment).
European Conformity.

Installation Instructions:

Overview:

Features:

Ethernet:
• Four (4) Gigabit (1000Mbps) ports to switch.
• Wire type: 4-pair CAT5e and higher.
• Connectivity: RJ45, auto-crossover.
• Speed: Gigabit (1000Mbps).
• Distance: up to 100m.
Environmental:
• Refer to Environmental Conditions on page 6.
Battery Backup:
• Built-in battery charger
(optional rack mount battery enclosure - RE2).
• Automatic switchover to stand-by battery when
AC fails.
Compatible PoE Hardened Switches and
Accessories:
NetWaySP3WPN:
NetWay4EWPN:
NetWay4E1WPN:
NetWaySP4WPN:
NetWaySP8WPN:
RE2:
3-port PoE Hardened Switch
with (1) SFP port.
4-port PoE Hardened Switch
with (1) SFP port.
4-port PoE Hardened Switch
with (1) SFP port.
4-port PoE Hardened Switch
with (2) SFP ports.
8-port PoE Hardened Switch
with (2) SFP ports.
Rack Mount Battery Enclosure
accommodates up to four (4)
12VDC/7AH batteries

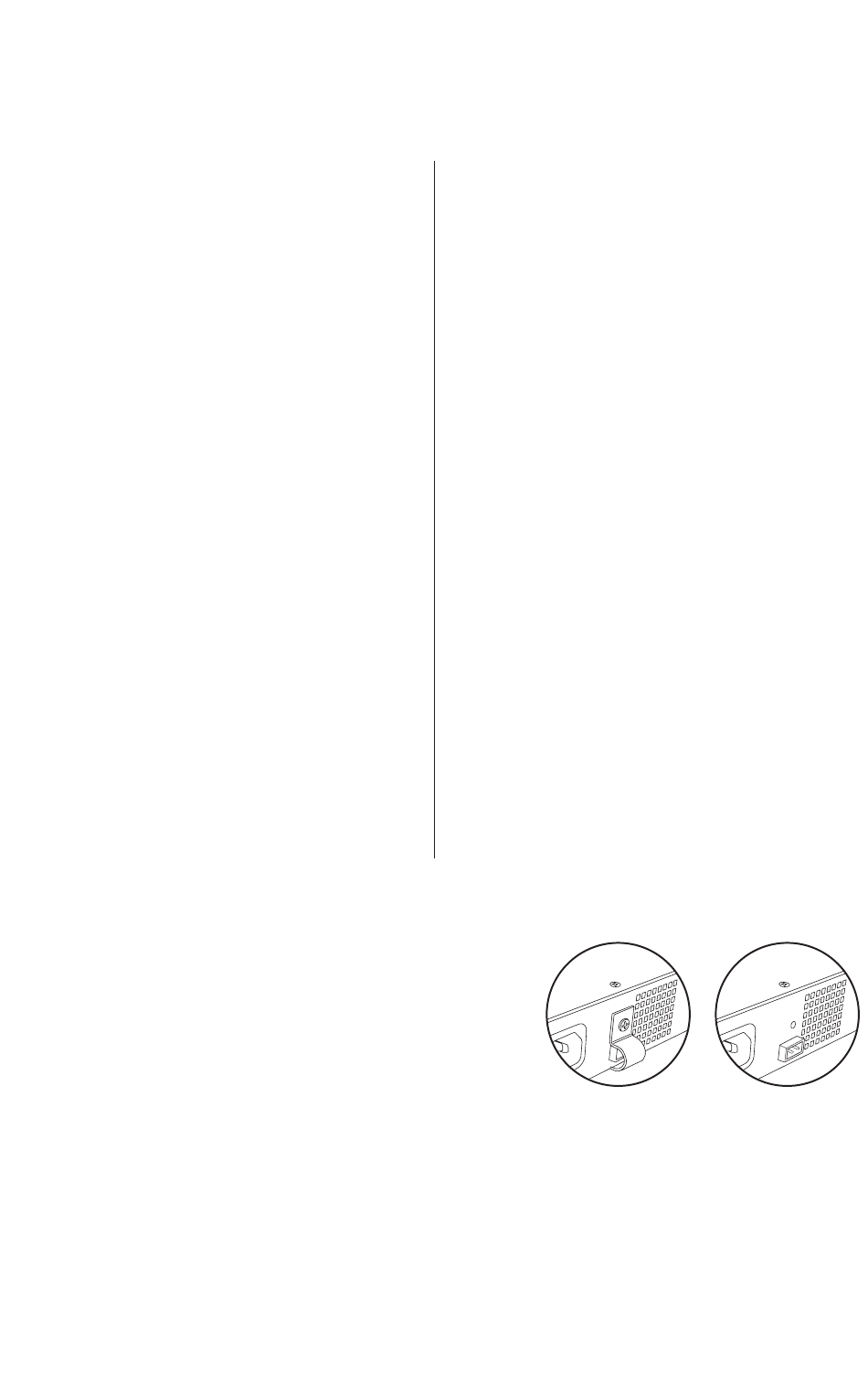

Fig. 1a Fig. 1b
