Altronix eBridge200WPM Installation Manual

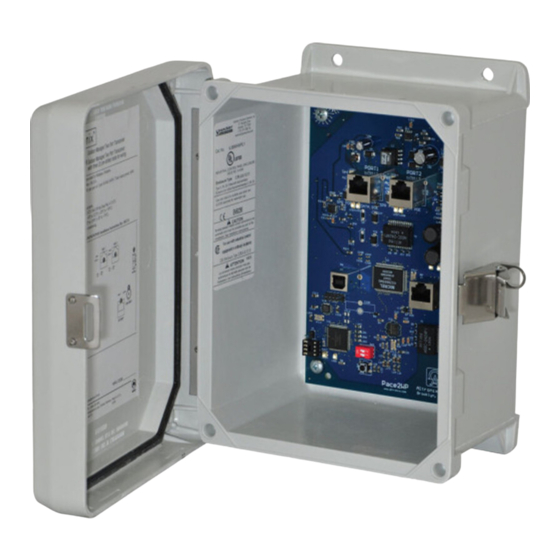

eBridge200WPM - Outdoor Managed Two Port Transceiver
These long range PoE Ethernet transceiver/media converters transmit data and power over Coax or CAT5 cable over
distances that are 3 to 5 times greater than standard Ethernet. Upgrading existing Coax analog camera infrastructure to
IP cameras is greatly simplified as well. Two PoE cameras/devices can be attached and supports PoE, PoE+ or a single
Hi-PoE (60W) device. The eBridge200WPM/WPMH offers built-in IP management which allows for remote camera reset,
monitoring and reporting via various IP protocols. No need to install remote AC mains power since these devices are simply
powered from the low voltage PoE midspan/endspan equipment, such as Altronix NetWay midspans or eBridge100SPR.
Note: Ethernet maximum distance (see Maximum Length of Coax Type vs. Camera Power/PoE Class, pg. 4).
Input:
• UL Listed LPS PoE Power Supply. See input options
table below.
Power Output:
• 2 ports PoE/PoE+ (30W) per port or 1 port Hi-PoE (60W).
• Total output power: 60W.
Ethernet:
• Link Distance: 500m max. (with Pace or eBridge100
series PoE receivers to eBridge200WPM)
or 100m (with standard midspan or endspan to
eBridge200WPM).
• Connectivity: RJ45, auto-crossover.
• Wire type: 4-pair Cat-5 or better structured cable.
• Device Distance: 100m max.
(eBridge200WPM to camera/device).
• Speed: 100BaseT, full duplex, auto negotiation.
Coax:
• Link Distance: 300m max.
• Connectivity: BNC, RG-59/U or similar.
• Speed: 100BaseT, full duplex, auto negotiation.
LED Indicators:
• Speed and Activity of Output ports.
• PoE ON the Spare Pair of CAT5
PoE ON the Data Pair of CAT5.
Receiver
Midspan or Endspan
Pace1PRM, 4PRM, 8PRM or 16PRM
Pace1PRD*
eBridge100SPR**
eBridge100RM, 400RM 800RM or 1600RM
NetWay1D
*When used with NetWay1D.
**Use with UL Listed Class 2 or limited power source (such as NetWay1D).
eBridge200WPM/WPMH
Overview:
Features:
Input Power Options and Switch Setting:
Input
Power
30W
30W
60W
60W
30W
60W

Installation Guide

PLUS
Environmental:
• Operating Temperature:
60W over CAT5 -40ºF to 167ºF (-40ºC to +75ºC).
60W over Coax -40ºF to 149ºF (-40ºC to +65ºC).
45W over Coax -40ºF to 167ºF (-40ºC to +75ºC).
• Storage Temperature: -- 40ºF to 167ºF (--- 40ºC to +75ºC).
• Humidity: 20 to 85%, non-condensing.
Applications:
• Long range outdoor CAT5 or Coax PoE/PoE+/Hi-PoE.
• Retrofit digital IP cameras in an analog CCTV installation
(up to two (2) IP cameras expansion per analog camera).
• Works with Megapixel, HD720, HD1080 and VGA
(SD) cameras (see note, pg. 2).
• Upgrade deployed CCTV Coax to a digital network
in Retail, Hospitality, Arenas, Casinos, Airports,
Schools, Hospitals, Transportation, etc.
Mechanical:
• NEMA 4X, IP66 Rated enclosure for outdoor use.
• Dimensions (H x W x D approx.):
9.5" x 7.32" x 4.92" (241.3mm x 185.9mm x 125mm).
Models:
eBridge200WPM: Outdoor Managed Two Port
Transceiver.
eBridge200WPMH: Outdoor Managed Two Port
Transceiver, enclosure with three (3) 5/8" wiring inlets,
includes NEMA rated glands.
CAT5 Wiring Configuration
2 pair
Provided over 2 pair/
2 pair on CAT5e
Provided over 4 pair on CAT5e
-------
-------
Provided over 4 pair on CAT5e
Rev. 081214
I.T.E. 43KC
Switch Setting
30W CAT or 60W COAX
30W CAT or 60W COAX
60W CAT
30W CAT or 60W COAX
30W CAT or 60W COAX
60W CAT
Link
Distance
100m
500m
500m
300m
300m
100m
- 1 -
