Altronix Pace1PTM Installation Manual

Pace1PTM
IP and PoE+ Over Extended Distance UTP or CAT5e

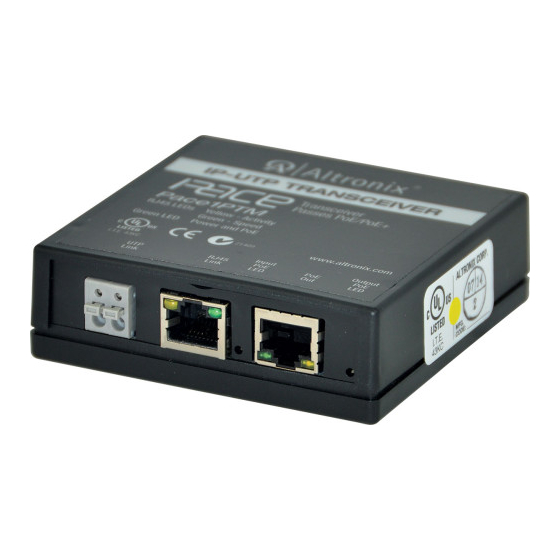

Pace1PTM is a long range Ethernet transceiver designed for use with Pace1PRM, Pace4PRM,
Pace8PRM and Pace16PRM receivers. They transmit data at 100mbps full duplex and power via
Cat5e or higher cable in a PoE(+) compliant format or a single twisted pair (UTP) (when paired
with Pace1PRM). The Pace1PTM will not deliver power to non compliant devices, thus avoid-
ing damage to improperly connected non-PoE cameras/devices. The receiver passes the PoE(+)
compliant power over the cable to the Pace1PTM transceiver which in turn passes this power to
an enabled IP camera/device. These plug and play units facilitate cost effective solutions for IP
devices that need to be installed at distances greater than 100m. They also provide a simple way to
replace legacy analog products with new IP devices over single twisted pair (UTP) (when paired
with Pace1PRM) or structured cable.
Agency Listings:
• UL/CUL Listed for Information
Technology Equipment (UL 60950-1).
Input:
• PoE (15W) IEEE 802.3af compliant or
PoE+ (30W) IEEE 802.3at compliant
from Pace1PRM, Pace4PRM,
Pace8PRM, or Pace16PRM.
Ethernet:
• Connectivity: RJ45, auto-crossover.
• Wire type: 4-pair CAT5e or
a single twisted pair UTP.
• Speed: 10/100BaseT, half/full duplex, auto
negotiation.
PoE compliant to IEEE 802.3af (15W) and
PoE+ compliant to IEEE 802.3at (30W)
delivered to camera by Pace1PTM.
• Throughput is rated to pass 100mbps of data.
CAT5e or Higher from Pace Receiver:
• Distance: up to 500m @ 100mbps
(see Max. Length of Cable Type vs.
Camera Power/PoE Class, pg. 4)
UTP (single twisted pair) from Pace1PRM:
• Distance: up to 152m @ 100mbps
(see Max. Length of Cable Type vs.
Camera Power/PoE Class, pg. 4)
LED Indicators:
• Green - PoE ON (by respective RJ45 jack).
• Yellow and Green LED IP Link status,
10/100Base-T/active.
Pace1PTM
Installation Guide
Overview:
Features:
Environmental:
• Operating Temperature:
For 15W: --- 40ºF to 167ºF (--- 40ºC to 75ºC).
For 25W: --- 40ºF to 158ºF (--- 40ºC to 70ºC).
For 30W: -- 40ºF to 140ºF (--- 40ºC to 60ºC).
• Storage Temperature:
-- 40ºF to 167ºF (--- 40ºC to 75ºC).
• Relative humidity:
20 to 85%, non-condensing.
Functions:
• Auto detection and protection of legacy
non-PoE cameras/devices.
Applications:
• Retrofit digital IP cameras in an analog
CCTV CAT5e or UTP installations.
• Extend Network link distance in an
industrial environment over 610m.
• Works with Megapixel, HD720, HD1080
and VGA (SD) cameras with proper
headend equipment.
Mechanical:
• Dimensions (W x L x H approx.):
3.5" x 3.5" x 1"
(88.89mm x 88.89mm x 25.4mm).
Rev. 111413
I.T.E. 43KC
- 1 -
