Altronix eBridge Plus 100TM Installation Manual

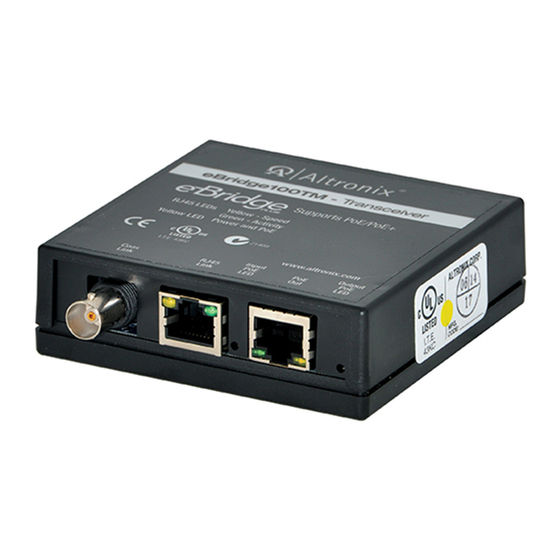

Altronix eBridge100TM EoC hardened transceiver transmits data at 100Mbps, Full Duplex over Coax cable to a paired
eBridge receiver and provides power in a PoE/PoE+ compliant format to an enabled device/camera. The eBridge
receiver is available in various options and is powered by an external midspan or endspan. The receiver passes PoE/
PoE+ power over the same coax cable to the eBridge100TM transceiver, which, in turn, passes this power to an
enabled IP camera/device. These plug and play units facilitate a cost-effective, simple way to replace legacy analog
products with new IP devices over existing coax up to 300m. When paired with the eBridge100RM EoC Receiver, the
eBridge100TM will pass 100Mbps full duplex data and PoE/PoE+ over CAT5e (or higher) up to 500m.
Agency Listings:
• UL/cUL Listed for Information
Technology Equipment (UL 60950-1).
• CE European Conformity.
• C-Tick compliant.
Compatible Receivers:
• eBridge100RM, eBridge400PCRM,
eBridge800PCRM, and eBridge1600PCRM.
• eBridge800E.
Visit www.altronix.com for the latest
compatibility list.
Input:
• Operating power provided by PSE
(power sourcing equipment).
• Current draw: 1.5W.
• PoE compliant to IEEE 802.3af (15W) and
PoE+ compliant to IEEE 802.3at (30W)
from eBridge receivers.*
Coax link:
• Throughput is rated to pass 100Mbps of
data at distances up to 300m.
(Maximum Length of Coax Type vs. Camera
Power/PoE Class, pg. 4) for power delivery.
• Connectivity: BNC, RG-59/U or similar.
CAT5e or Higher from eBridge100RM:
• Distance: up to 500m @ 100Mbps.
(Maximum Length of Coax or CAT5 Type vs.
Camera Power/PoE Class, pg. 4) for power delivery.
*See note on the bottom of Page 2.
eBridge100TM
IP and PoE/PoE+
Over Coax
Hardened Transceiver
PLUS
Installation Guide
Overview:
Features:
LED Indicators:
• Green - PoE ON (by respective RJ45 jack).
• Yellow and Green LED (RJ45) -
IP Link status, 10/100Base-T/active.
Environmental:
• Operating Temperature:
For 15W: – 40ºC to 75ºC (– 40ºF to 167ºF).
For 25W: – 40ºC to 60ºC (– 40ºF to 140ºF).
For 30W: – 40ºC to 49ºC (– 40ºF to 120.2ºF).
• Storage Temperature:
– 40ºC to 75ºC (– 40ºF to 167ºF).
• Humidity: 20 to 85%, non-condensing.
Functions:
• Auto detection and protection of legacy
non-PoE cameras/devices.
Applications:
• Retrofit digital IP cameras in an analog
CCTV installation.
• Works with Megapixel, HD720, HD1080
and VGA (SD) cameras (see note, pg. 2).
• Extend Network link distance in an industrial
environment over 610m (see note, pg. 2).
• Upgrade deployed CCTV Coax to a digital
network in Retail, Casinos, Airports,
Schools, Hospitals, etc.
Mechanical:
• Dimensions (W x L x H approx.):
3.5" x 4.375" x 1"
(88.9mm x 111.1mm x 25.4mm).
I.T.E. 43KC
Z1409
