Video • Data • Power

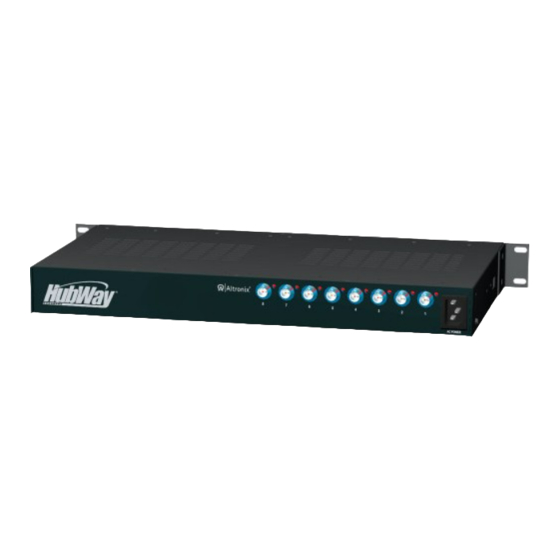

Active UTP Transceiver Hub
with Integral Isolated Camera Power
Installation Guide
Models Include:
HubWayLD8Di
- Eight (8) Camera Channels
HubWayLD82Di
- HubWayLD8Di w/eight (8) HubWayAv
Video Balun/Combiners for 24VAC Cameras
HubWayLD83Di
- HubWayLD8Di w/eight (8) HubWayDv
Video Balun/Combiners for 12VDC Cameras
Rev. 030408
HubWayLD16Di
- Sixteen (16) Camera Channels
HubWayLD162Di
- HubWayLD16Di w/sixteen (16) HubWayAv
Video Balun/Combiners for 24VAC Cameras
HubWayLD163Di
- HubWayLD16Di w/sixteen (16) HubWayDv
Video Balun/Combiners for 12VDC Cameras
More than just power.
TM
Advertisement
Table of Contents
Related Manuals for Altronix HubWay LD Series
Summary of Contents for Altronix HubWay LD Series
- Page 1 Video • Data • Power Active UTP Transceiver Hub with Integral Isolated Camera Power Installation Guide Models Include: HubWayLD8Di HubWayLD16Di - Eight (8) Camera Channels - Sixteen (16) Camera Channels HubWayLD82Di HubWayLD162Di - HubWayLD8Di w/eight (8) HubWayAv - HubWayLD16Di w/sixteen (16) HubWayAv Video Balun/Combiners for 24VAC Cameras Video Balun/Combiners for 24VAC Cameras HubWayLD83Di...
-
Page 2: Common Specifications
1U EIA 19” rack mount chassis which may be rack, wall or shelf mounted. Video transmission range is up to 3000 ft. max. per channel. Units are compatible with AC and/or DC fixed or PTZ cameras when utilizing Altronix HubWayAv or HubWayDv Video Balun/Combiners. - Page 3 RJ45 jack of the Video Balun/Combiner located at camera 1. • For 24VAC cameras use Altronix model HubWayAv Video Balun/Combiner (Figs. 2a, 2b, pg. 5). • For 12VDC cameras use Altronix model HubWayDv Video Balun/Combiner (Figs. 2c, 2d, pg. 5).
- Page 4 + -- - 4 - HubWayLD Active Isolated Unit...
- Page 5 HubWayAv and HubWayDv Video Balun/Combiners: Altronix Model Number HubWayAv *24VAC/28VAC *24VAC/28VAC 24VAC cameras Green HubWayDv *24VAC/28VAC 12VDC 12VDC cameras *Based on camera load and structured cable length. Fig. 2 Fig. 2a Fig. 2c VIDEO VIDEO HubWayAv HubWayDv VIDEO BALUN/COMBINER VIDEO BALUN/COMBINER...
-
Page 6: Typical Applications
Typical Applications: Fig. 4 Head End Equipment (DVR) RS485 Monitor Video Data Rear PICTURE GAIN PICTURE GAIN PICTURE GAIN PICTURE GAIN PICTURE GAIN PICTURE GAIN PICTURE GAIN PICTURE GAIN AC POWER CH 1-4 CH 5-8 28VAC 24VAC + DATA - Front CAT-5 Video... -
Page 7: Top & Bottom
1U EIA 19” Rack Mount Chassis Mechanical Drawing & Dimensions: 1.625”H x 19.125”W x 8.5”D REAR 1.625" PICTURE GAIN PICTURE GAIN PICTURE GAIN PICTURE GAIN PICTURE GAIN PICTURE GAIN PICTURE GAIN PICTURE GAIN PICTURE GAIN PICTURE GAIN PICTURE GAIN PICTURE GAIN PICTURE GAIN PICTURE GAIN PICTURE GAIN PICTURE GAIN AC POWER... - Page 8 Four (4) rubber pads. Rubber Pad Altronix is not responsible for any typographical errors. 140 58th Street, Brooklyn, New York 11220 USA, 718-567-8181, fax: 718-567-9056 website: www.altronix.com, e-mail: info@altronix.com, Lifetime Warranty, Made in U.S.A. IIHubWayLD8Di/HubWayLD16Di I16H MEMBER - 8 -...
