Altronix eBridge1ST Installation Manual

-
eBridge1ST

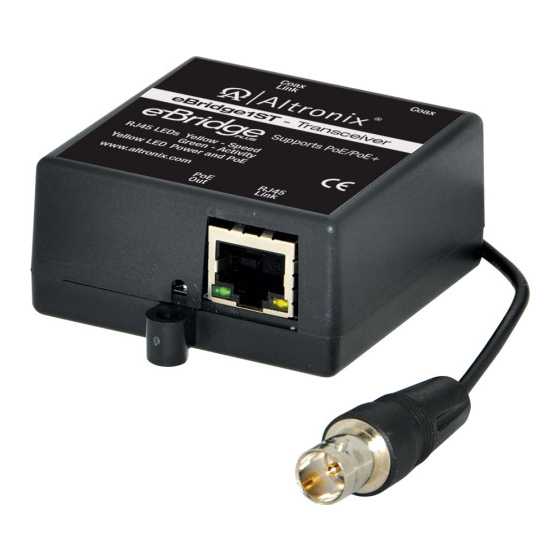

eBridge1ST EoC transceiver transmits data at 25Mbps over Coax cable to a paired eBridge receiver,
and provides power in a PoE+ compliant format to an enabled device/camera. The eBridge receiver
is available in various options (see compatibility list below/Altronix.com), including built-in mid­
span, or for use with an external midspan, such as the Altronix Netway series to facilitate network
applications. The receiver passes PoE+ power over the same coax cable to the eBridge1ST trans­
ceiver, which, in turn passes this power to an enabled IP camera/device. These plug and play units
facilitate cost-effective solutions for IP devices. They can be installed at distances greater than 500m.
They provide a simple way to replace legacy analog products with new IP devices over existing coax.
Agency Listings:
• CE approved.
Input:
• PoE compliant to IEEE 802.3af (15W) and
PoE+ compliant to IEEE 802.3at (30W)
from eBridge receivers.
Compatible Receivers:
• eBridge1PCRM, eBridge4PCRM,
eBridge8PCRM, eBridge16PCRM,
eBridge1PCR, eBridge1PCRX,
eBridge4PCRX, eBridge8PCRX,
eBridge16PCRX.
Visit www.altronix.com for the latest
compatibility list.
Ethernet:
• Connectivity: RJ45, auto-crossover.
• Wire type: 4-pair CAT5.
• Distance: up to 500m.
• Speed: 10/100BaseT, auto negotiation.
PoE compliant to IEEE 802.3af (15W) and
PoE+ compliant to IEEE 802.3at (30W)
Delivered to camera by eBridge1ST.
Power provided by eBridge receiver to
eBridge1ST by PoE protocol.*
• Throughput is rated to pass 25Mbps of
data at distances up to 500m.
Coax Link:
• Distance: Coax 500m (Maximum Length of
Coax Type vs. Camera Power/PoE Class,
pg. 4) for power delivery.
• Connectivity: BNC, RG-59/U or similar.
*See note on page 3.
eBridge1ST
www.a1securitycameras.com email: sales@a1securitycameras.com
EoC and PoE/PoE+ Transceiver
Available from A1 Security Cameras
Installation Guide
PLUS
Overview:
Features:
LED Indicators:
• Yellow - PoE ON (by respective RJ45 jack).
• Yellow and Green LED (RJ45) IP Link
status, 10/100Base-T/active.
• Blue: Coax Link is active.
Environmental:
• Operating Temperature:
For 15W - - - 40ºF to 167ºF (- - -40ºC to 75ºC).
For 25W - - 40ºF to 140ºF (- - -40ºC to 60ºC).
• Storage Temperature:
- - 40ºF to 167ºF (- - -40ºC to 75ºC).
• Humidity: 20 to 85%, non-condensing.
Functions:
• Auto detection and protection of legacy
non-PoE cameras/devices.
Applications:
• Retrofit digital IP cameras in an analog
CCTV installation.
• Works with IP Megapixel and
non-Megapixel cameras (see note, pg. 2).
• Extend Network link distance in an industrial
environment over 610m (see note, pg. 2).
• Upgrade deployed CCTV Coax to a digital
network in Retail, Casinos, Airports,
Schools, Hospitals, etc.
Mechanical:
• Dimensions (W x L x H approx.):
2.27" x 2.645" x 1.12"
(57.66mm x 67.18mm x 28.44mm).
Rev. 012816
- 1 ­
