Video • Data • Power
Active UTP Transceiver Hub
with Integral Isolated Camera Power
Installation Guide
Models Include:

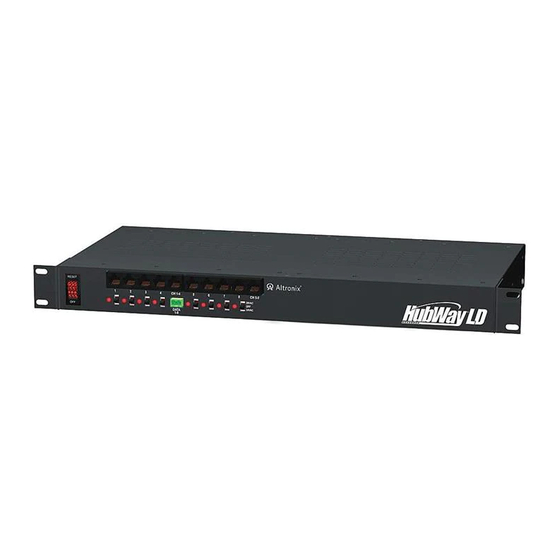

HubWayLD8Di
- UL Listed eight (8) Channel Active UTP
Transceiver Hub with Integral Isolated Camera Power Transceiver Hub with Integral Isolated Camera Power
HubWayLD82Di
- UL Listed eight (8) Channel Active UTP
Transceiver Hub with Integral Isolated Camera Power Transceiver Hub with Integral Isolated Camera Power
- Includes eight (8) UL Listed Accessory
HubWayAv Video Balun/Combiners
HubWayLD83Di
- UL Listed eight (8) Channel Active UTP
Transceiver Hub with Integral Isolated Camera Power Transceiver Hub with Integral Isolated Camera Power
- Includes eight (8) UL Listed Accessory
HubWayDv Video Balun/Combiners
Rev. 030408
HubWayLD16Di
- UL Listed sixteen (16) Channel Active UTP
HubWayLD162Di
- UL Listed sixteen (16) Channel Active UTP
- Includes sixteen (16) UL Listed Accessory
HubWayAv Video Balun/Combiners
HubWayLD163Di
- UL Listed sixteen (16) Channel Active UTP
- Includes sixteen (16) UL Listed Accessory
HubWayDv Video Balun/Combiners
More than just power.
TM
Advertisement
Table of Contents
Related Manuals for Altronix HubWay ld
Summary of Contents for Altronix HubWay ld
-
Page 1: Installation Guide
Video • Data • Power Active UTP Transceiver Hub with Integral Isolated Camera Power Installation Guide Models Include: HubWayLD8Di HubWayLD16Di - UL Listed eight (8) Channel Active UTP - UL Listed sixteen (16) Channel Active UTP Transceiver Hub with Integral Isolated Camera Power Transceiver Hub with Integral Isolated Camera Power HubWayLD82Di HubWayLD162Di - UL Listed eight (8) Channel Active UTP... -
Page 2: Installation Instructions
1U EIA 19” rack mount chassis which may be rack, wall or shelf mounted. Video transmission range is up to 3000 ft. max. per channel. Units are compatible with AC and/or DC fixed or PTZ cameras when utilizing Altronix HubWayAv, HubWayAv2, HubWayDv or HubWayDvi Video Balun/Combiners. - Page 3 RJ45 jack of the Video Balun/Combiner located at camera 1. • For 24VAC cameras use Altronix model HubWayAv/HubWayAv2 Video Balun/Combiner (Figs. 2a, 2b, 2e, pg. 5). • For 12VDC cameras use Altronix model HubWayDv Video Balun/Combiner (Figs. 2c, 2d, pg. 5).
- Page 4 + -- - 4 - HubWayLD Active Isolated Unit...
- Page 5 HubWayAv, HubWayAv2, HubWayDv, and HubWayDvi Video Balun/Combiners: Input Voltage Altronix from HubWay Model Number Unit Output Voltage to Camera Camera Type Power LED HubWayAv *24VAC/28VAC *24VAC/28VAC *24VAC/28VAC Green HubWayAv2 *24VAC/28VAC *24VAC/28VAC *24VAC/28VAC HubWayDv *24VAC/28VAC 12VDC 12VDC cameras HubWayDvi *24VAC/28VAC 12VDC electronically isolated 12VDC cameras without isolation Red *Based on camera load and structured cable length.
-
Page 6: Typical Applications
Typical Applications: Fig. 4 Head End Equipment (DVR) RS485 Monitor Video Data Rear PICTURE GAIN PICTURE GAIN PICTURE GAIN PICTURE GAIN PICTURE GAIN PICTURE GAIN PICTURE GAIN PICTURE GAIN AC POWER CH 1-4 CH 5-8 28VAC 24VAC + DATA - Front CAT-5 Video... - Page 7 Rack Mount Chassis Mechanical Drawing & Dimensions (H x W x D approximate): 1.625” x 19.125” x 8.5” (41.275mm x 486mm x 215.9mm) REAR 1.625" 41.28mm AC POWER PICTURE GAIN PICTURE GAIN PICTURE GAIN PICTURE GAIN PICTURE GAIN PICTURE GAIN PICTURE GAIN PICTURE GAIN PICTURE GAIN PICTURE GAIN PICTURE GAIN PICTURE GAIN PICTURE...
-
Page 8: Rack Mount Installation
Four (4) rubber pads. Rubber Pad Altronix is not responsible for any typographical errors. 140 58th Street, Brooklyn, New York 11220 USA, 718-567-8181, fax: 718-567-9056 website: www.altronix.com, e-mail: info@altronix.com, Lifetime Warranty, Made in U.S.A. IIHubWayLD8Di/HubWayLD16Di J15N MEMBER - 8 -...
