Altronix eBridge Plus Series Installation Manual

eBridge1PCRT
IP and PoE over Coax Solution

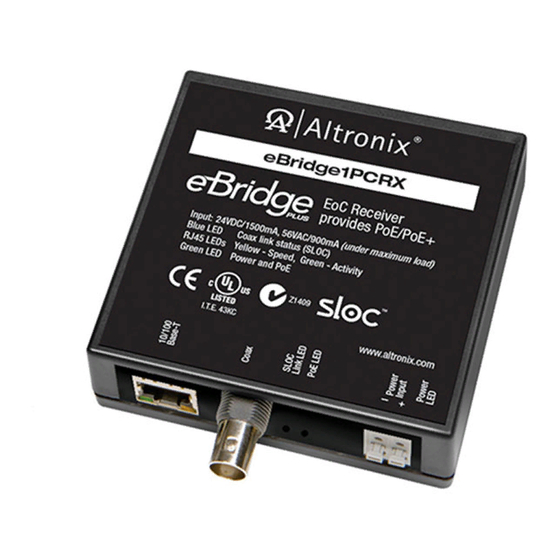

eBridge1PCR Receiver and eBridge1PCT Hardened Transceiver Kit
eBridge1PCR and eBridge1PCT are CAT5 to Coax cable Ethernet adapters that deliver data and power
over the coax cable in a PoE compliant format. The paired set enables fast 10/100Base-T Ethernet digital
communication to be transmitted over Coax cable. eBridge1PCR receiver sends power over the coax to the
eBridge1PCT transmitter under PoE protocol. eBridge1PCT, in turn, delivers that PoE-compliant power to a
PoE- enabled camera or IP device. eBridge1PCR will not deliver power to non-compliant devices, thus avoid-
ing damage to improperly connected analog cameras. These plug and play units facilitate system upgrades
from analog to IP cameras/devices utilizing existing legacy Coax and eliminating the costs and labor associated
with installing new network cabling. In addition, data transmission and power over the Coax is possible up to
500m in comparison to 100m Ethernet maximum distance (see Maximum Length of Coax Type vs. Camera
Power/PoE Class, pg. 3). A maximum range from headend to the PoE camera/device is 700m, taking into
consideration that up to 100m of structured cable may be deployed at each end.
Agency Listings:
• UL/CUL Listed for Information
Technology Equipment (UL 60950-1).
• CE approved.
• C-Tick compliant.
Input:
• 24VDC Class 2 power supply (polarity not
observed) or 24VAC Class 2 plug-in transformer.
Power Consumption (under maximum load):
• eBridge1PCR:
24VDC/1,000mA or 24VAC/900mA.
eBridge1PCT: Powered by eBridge1PCR.
Ethernet:
• Connectivity: RJ45, auto-crossover.
• Wire type: 4-pair CAT5 or better structured cable.
• Distance: up to 100m.
• Speed: 10/100BaseT, half/full duplex, auto
negotiation. PoE compliant to IEEE 802.3af (15W)
delivered to camera by eBridge1PCT.
Power provided by eBridge1PCR to
eBridge1PCT by PoE protocol.
Coax:
• Distance: up to 500m (see Maximum Length of
Coax Type vs. Camera Power/PoE Class, pg. 3)
for power delivery of coax.
• Throughput is rated to pass 25Mbps of data at
distances up to 500m. With proper headend
equipment this supports
Megapixel, HD720, HD1080.
• Connectivity: BNC, RG-59/U or similar.
LED Indicators:
• eBridge1PCR:
Blue LED - Coax link connection.
Green - PoE ON.
Green - Power ON.
• eBridge1PCR (RJ45):
Yellow and Green LED IP Link status,
10/100Base-T/active.
All manuals and user guides at all-guides.com
Overview:
Features:
LED Indicators (cont'd):
• eBridge1PCT:
Environmental:
• Operating Temperature:
• Storage Temperature:
• Humidity: 20 to 85%, non-condensing.
Functions:
• Auto detection and protection of legacy
Applications:
• Retrofit digital IP cameras in an analog
• Works with Megapixel, HD720, HD1080
• Extend Network link distance in an industrial
• Upgrade deployed CCTV Coax to a digital
Mechanical:
• Dimensions (W x L x H approx.):
Installation Guide
PLUS
I.T.E. 43KC
Blue LED - Coax link connection.
Green LED - PoE from eBridge1PCR.
eBridge1PCR:
-20ºC to 45ºC (-4ºF to 113ºF).
eBridge1PCT:
For 15W: -40ºC to 75ºC (-40ºF to 167ºF).
-30ºC to 70ºC (-22ºF to 158ºF).
non-PoE cameras/devices.
CCTV installation.
and VGA (SD) cameras (see note, pg. 2).
environment over 700m (see note, pg. 2).
network in Retail, Hospitality, Arenas,
Casinos, Airports, Schools, Hospitals,
Transportation, etc.
eBridge1PCR:
3.5" x 4.375" x 1"
(88.9mm x 111.1mm x 25.4mm).
eBridge1PCT:
2.5" x 4.375" x 1"
(63.5mm x 111.1mm x 25.4mm).
Rev. 100512
Z1409
