Video • Data • Power

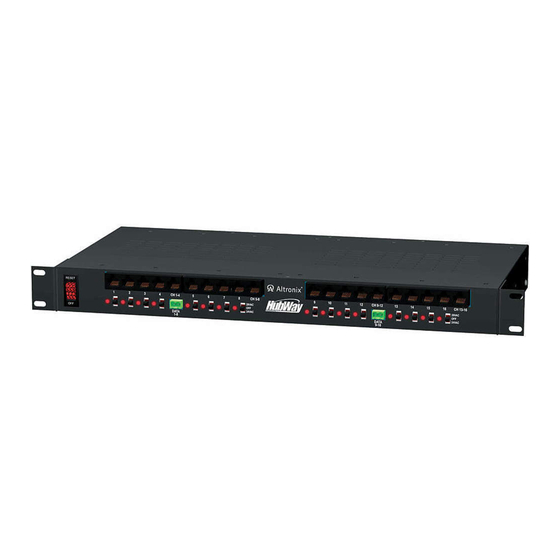

HubWayD Series
Passive UTP Transceiver Hubs
with Integral Camera Power
Models Include:
HubWay8D
- UL Listed eight (8) Channel Passive UTP
Transceiver Hub with Integral Camera Power
HubWay82D
- UL Listed eight (8) Channel Passive UTP
Transceiver Hub with Integral Camera Power
- Includes eight (8) UL Listed Accessory
HubWayAv Video Balun/Combiners
HubWay83D
- UL Listed eight (8) Channel Passive UTP
Transceiver Hub with Integral Camera Power
- Includes eight (8) UL Listed Accessory
HubWayDv Video Balun/Combiners
Installation Guide
Rev. 032108
Installing Company: _______________ Service Rep. Name: __________________________________
Address: _____________________________________________ Phone #: __________________
HubWay16D
- UL Listed sixteen (16) Channel Passive UTP
HubWay162D
- UL Listed sixteen (16) Channel Passive UTP
- Includes sixteen (16) UL Listed Accessory
HubWay163D
- UL Listed sixteen (16) Channel Passive UTP
- Includes sixteen (16) UL Listed Accessory
Z1409
Transceiver Hub with Integral Camera Power
Transceiver Hub with Integral Camera Power
HubWayAv Video Balun/Combiners
Transceiver Hub with Integral Camera Power
HubWayDv Video Balun/Combiners
More than just power.
TM
Advertisement
Related Manuals for Altronix HubWayD Series
Summary of Contents for Altronix HubWayD Series
- Page 1 Video • Data • Power HubWayD Series Passive UTP Transceiver Hubs with Integral Camera Power Models Include: HubWay8D HubWay16D - UL Listed eight (8) Channel Passive UTP - UL Listed sixteen (16) Channel Passive UTP Transceiver Hub with Integral Camera Power...
-
Page 2: Common Specifications
1U EIA 19” rack mount chassis which may be rack, wall or shelf mounted. Video transmission range is up to 750 ft. max. per channel. Units are compatible with AC and/or DC fixed or PTZ cameras when utilizing Altronix HubWayAv, HubWayAv2, HubWayDv or HubWayDvi Video Balun/Combiners. -
Page 3: Installation Instructions
RJ45 jack of the Video Balun/Combiner located at camera 1. • For 24VAC cameras use Altronix model HubWayAv/HubWayAv2 Video Balun/Combiner (Fig. 2a, 2b, 2e, pg. 5) . • For 12VDC cameras use Altronix model HubWayDv Video Balun/Combiner (Fig. 2c, 2d, pg. 5) . - Page 4 1e - Data: Fig. 1 Removable terminal blocks for RS422/ RS485 input from head end 1b - Channels 1-4, Channels 5-8, Channels 9-12 & Channels 13-16: equipment (DVR) for PTZ control. CAT-5 or higher structured cable from optional HubSat4D enables video transmission from up to four (4) cameras.
- Page 5 HubWayAv, HubWayAv2, HubWayDv, and HubWayDvi Video Balun/Combiners: Altronix Input Voltage Model from Power Number HubWay Unit Output Voltage to Camera Camera Type HubWayAv *24VAC/28VAC *24VAC/28VAC *24VAC/28VAC Green HubWayAv2 *24VAC/28VAC *24VAC/28VAC *24VAC/28VAC HubWayDv *24VAC/28VAC 12VDC 12VDC cameras *Based on camera load and structured cable length.
-
Page 6: Typical Applications
Typical Applications: Fig. 4 Head End Equipment (DVR) RS485 Monitor Video Data Rear AC POWER CH 1-4 CH 5-8 28VAC 24VAC + DATA - Front CAT-5 Video Data Four (4) Video Video Video Video (CAT-5) signals on a Power Data Power Data single CAT-5... - Page 7 The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of an insulated DANGEROUS VOLTAGE within the product’s enclosure that may be of sufficient magnitude to constitute an electric shock. The exclamation point within an equilateral triangle is intended to alert the user to the presence of impor- tant operating and maintenance (servicing) instructions in the literature accompanying the appliance.
- Page 8 Four (4) rubber pads. Rubber Pad Altronix is not responsible for any typographical errors. –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– 140 58th Street, Brooklyn, New York 11220 USA | phone: 718-567-8181 | fax: 718-567-9056 website: www.altronix.com | e-mail: info@altronix.com | Lifetime Warranty...
