Factory Reset

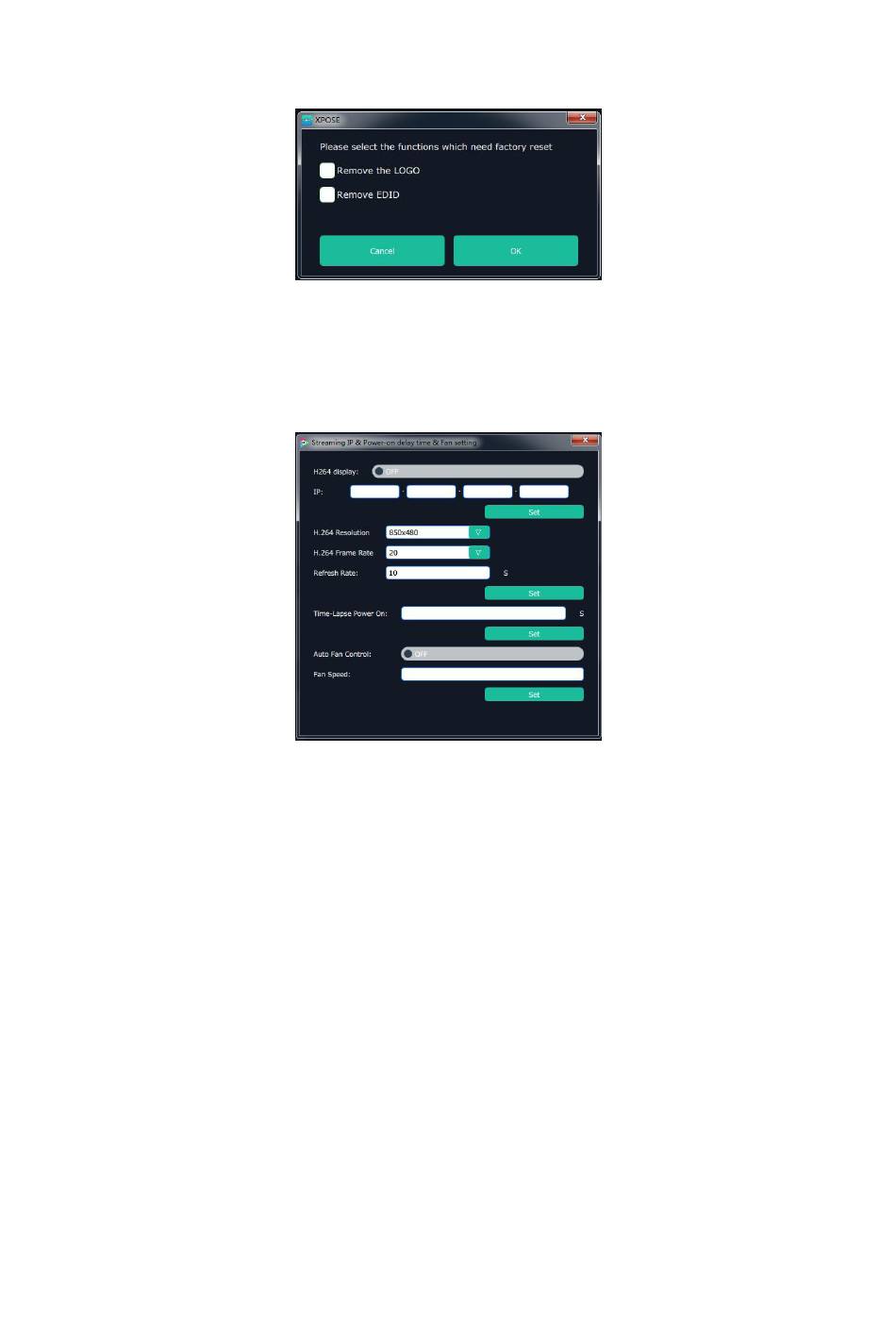

Click the "Factory Reset", and pop-up window as follows:
Select "Remove the LOGO", and click "OK", the LOGO will be removed.
Select "Remove EDID", and click "OK", the EDID will be removed.
Streaming IP & Power On Setting & Fan Setting
Click the "Streaming IP Power On Setting Fan Control", and pop-up window as follows:
H264 Display: Enable or disable the H264 display function. If select "ON", the interface will display the H.264
video when enter to the operation mode, which is for preview.
IP: Set the IP address of H264 video, click "Set" after setting.
H.264 Resolution: Set the resolution of H.264.
H.264 Frame Rate: Set the frame rate of H.264.
Time-Lapse Power On: The adjustment range is 0~255, click "Set" after setting.
Auto Fan Control/Fan Speed: OFF/ON to enable or disable auto fan control. If disable it, Fan Speed can be
adjusted manually. The rang of Fan Speed is 0-100.
34
