RGBlink X2 Quick Start Manual page 13

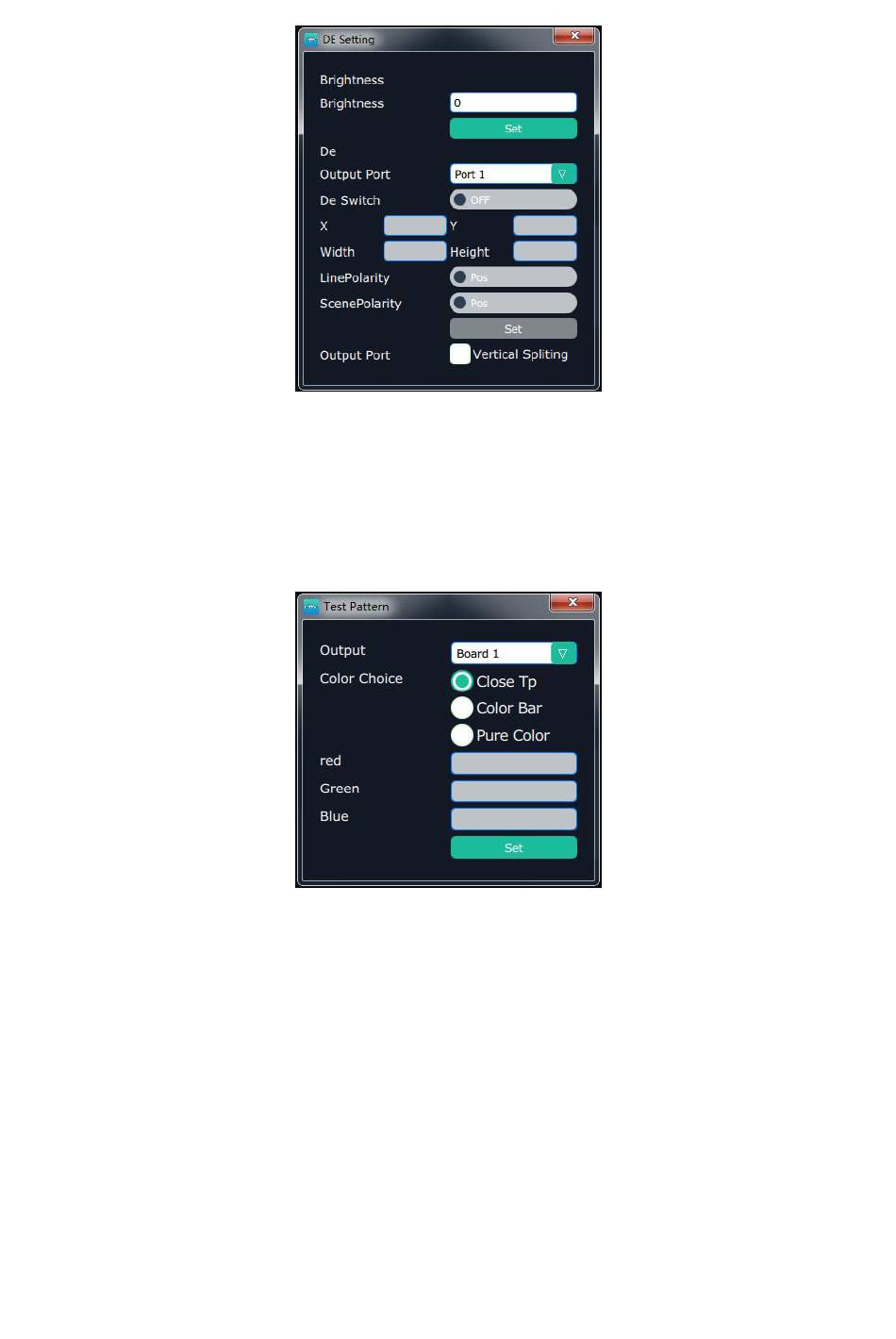

Brightness: The brightness adjustment range is between 0~128. Click "Set" to confirm.
De: User can select one port or all ports, and enable the De function by sliding the De Switch. The settings for
De include X, Y, width, height, line polarity and scene polarity. Vertical spliting can be selected in "Output Port".
Test Pattern
Click the "Test Pattern", and pop-up window as follows:
Output: User can select any board among the four boards.
Color Choice: TP, colour bar and pure colour can be selected.
Red, Green, Blue: If select "Pure Colour", red, green and blue can be adjusted, the adjustment range is between
0~255.
Click "Set" to confirm.
OSD
Click the "OSD", and pop-up window as follows:
12
