Matrix Mode

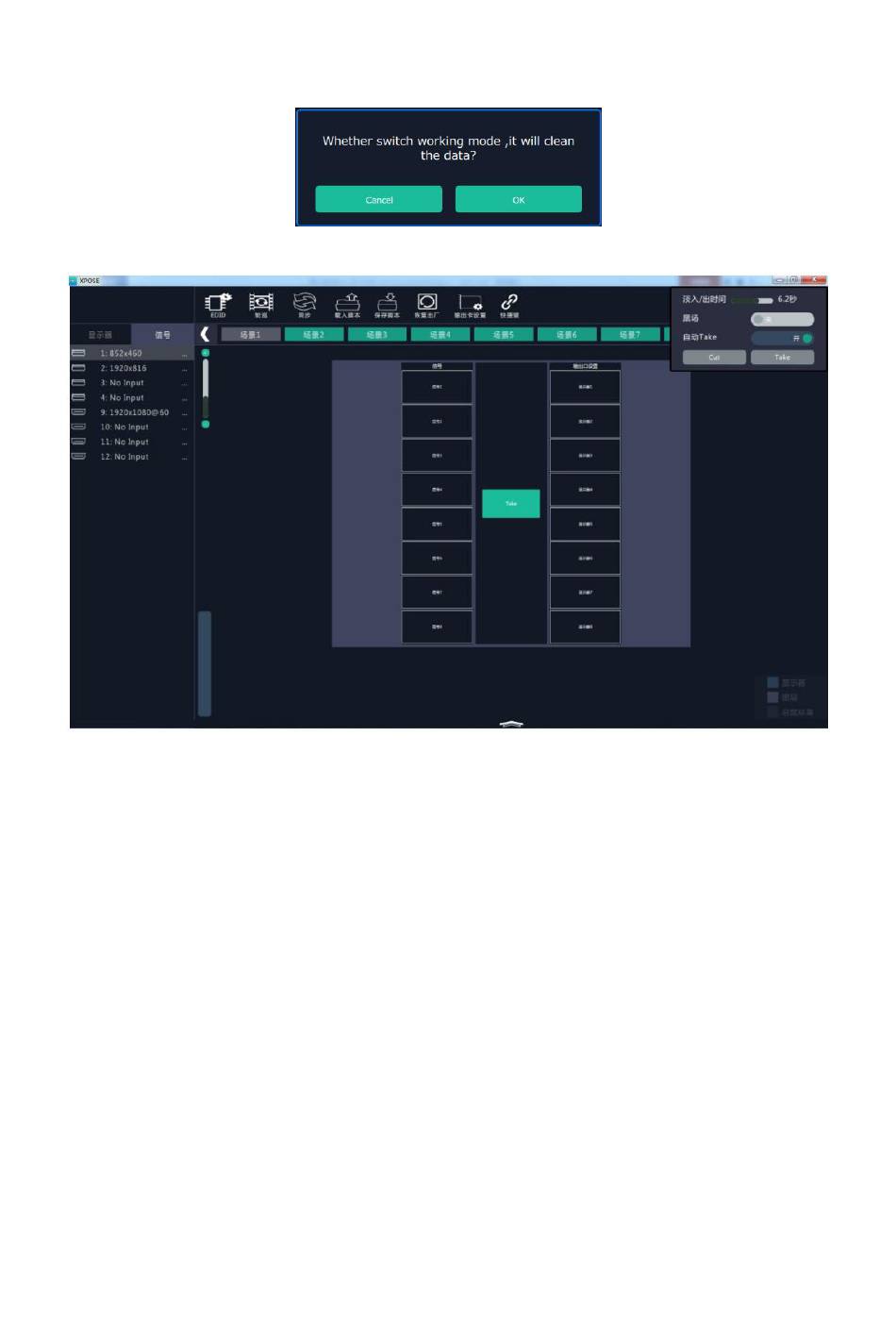

Click the "Matrix Mode", and pop-up window as follows:
Click "OK", and the system will synchronize the data, about 5 seconds later, it will enter the interface as follows:
In matrix mode, any operations are unavailable except signal selection, bank selection, alpha time and black
scene setting.
Default source 1 to monitor 1, source 2 to monitor 2, and so on. Select the signal, and drag it to the source that
will set. For example, set signal 3 for source 1, as shown in the figure below:
