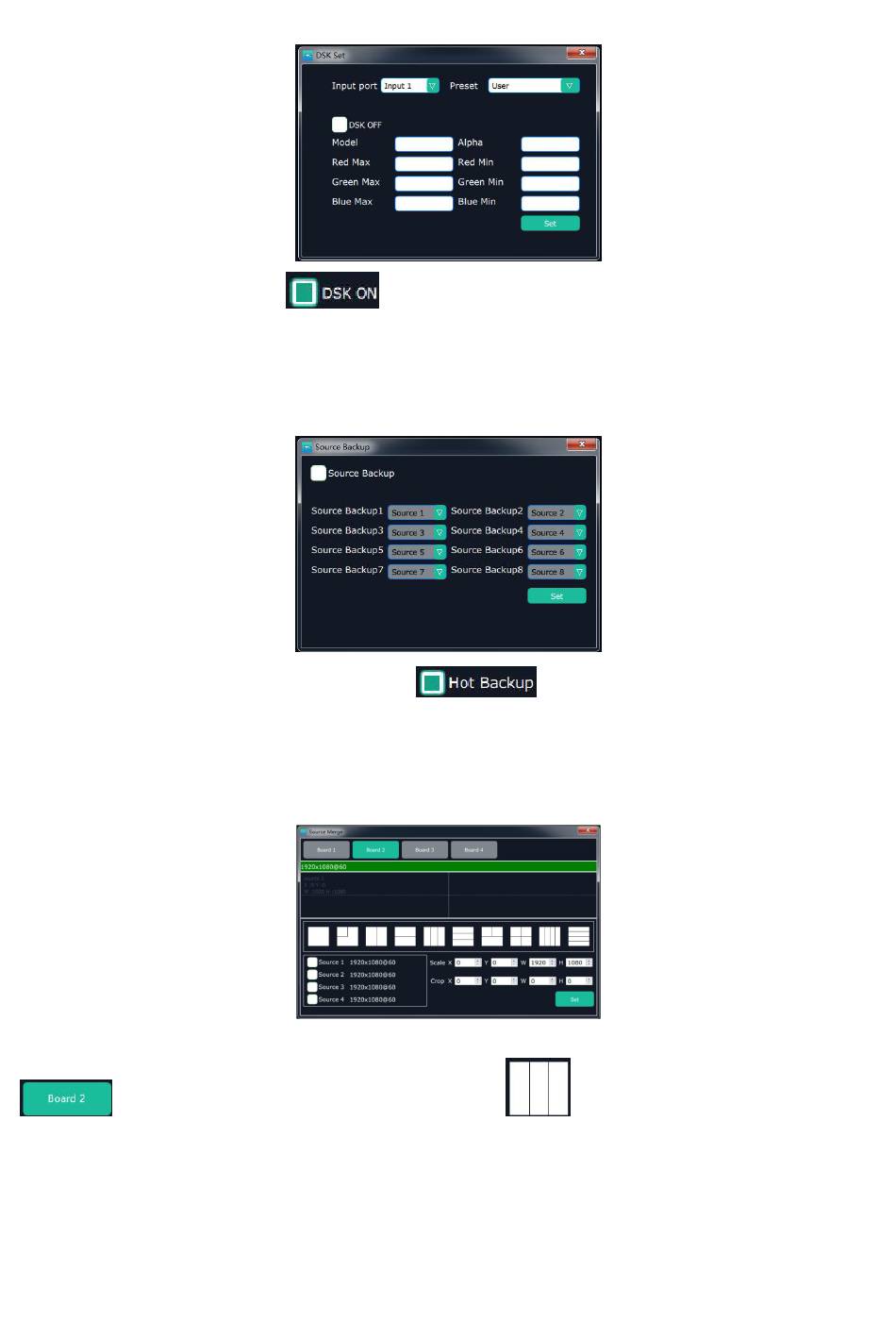

Click the "DSK Settings", and pop-up window as follows:
Select DSK ON, as shown in figure , then set the input ports, including preset selection, custom
mode, alpha and color setting. Click "Set" to confirm.
Source Backup
Click the "Source Backup", and pop-up window as follows:
Enable the hot backup function, as shown in figure , and set the backup signal for Hot Backup 1
to Hot Backup 8. It will switch to the backup signal if the signal is interrupted.
Source Merge
Click the "Source Merge", and pop-up window as follows:
The S-HDMI input optional module support signal merger. Click any valid input board, for example, select
, then select the merger mode, for example, select , as shown in the figure below:
