RGBlink X2 Quick Start Manual page 12

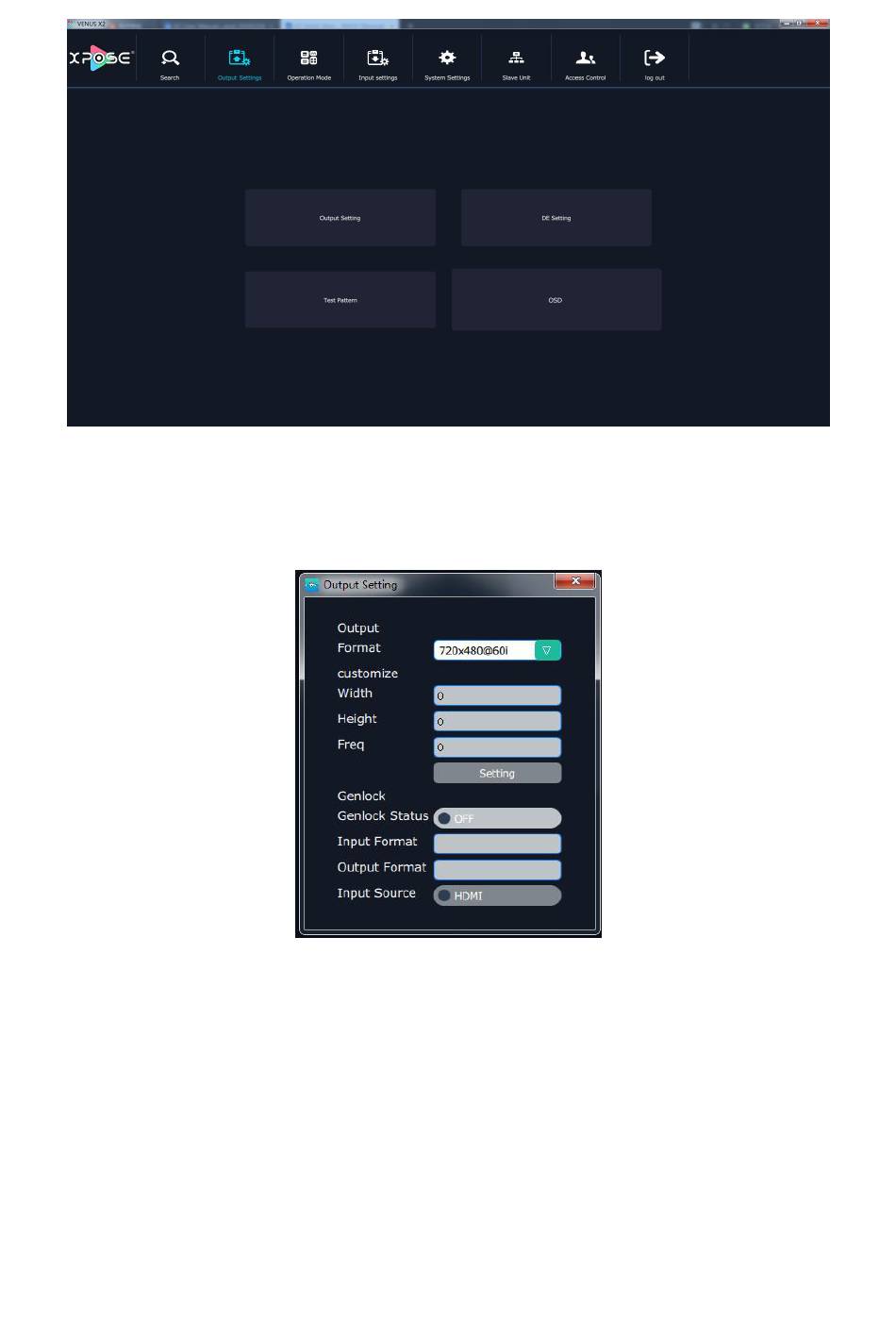

Output Setting, DE Setting, Test pattern and OSD are included in output settings, specific as follows:
Output Setting
Click the "Output Setting", and pop-up window as follows:
Output: Click the drop down arrow after the format, and select the output resolution in the pull-down menus
according to actual need.
Format: The width, height and frequency can be set if select "Custom" in "Format". Click "Setting" to confirm.
Genlock: Enable or disable the genlock function by sliding the genlock switch. If select "ON", the output
resolution will be same with the resolution that selected. HDMI or BNC can be selected in "Input Source" by
sliding the switch.
DE Setting
Click the "DE Setting", and pop-up window as follows:
11
