RGBlink X2 Quick Start Manual page 20

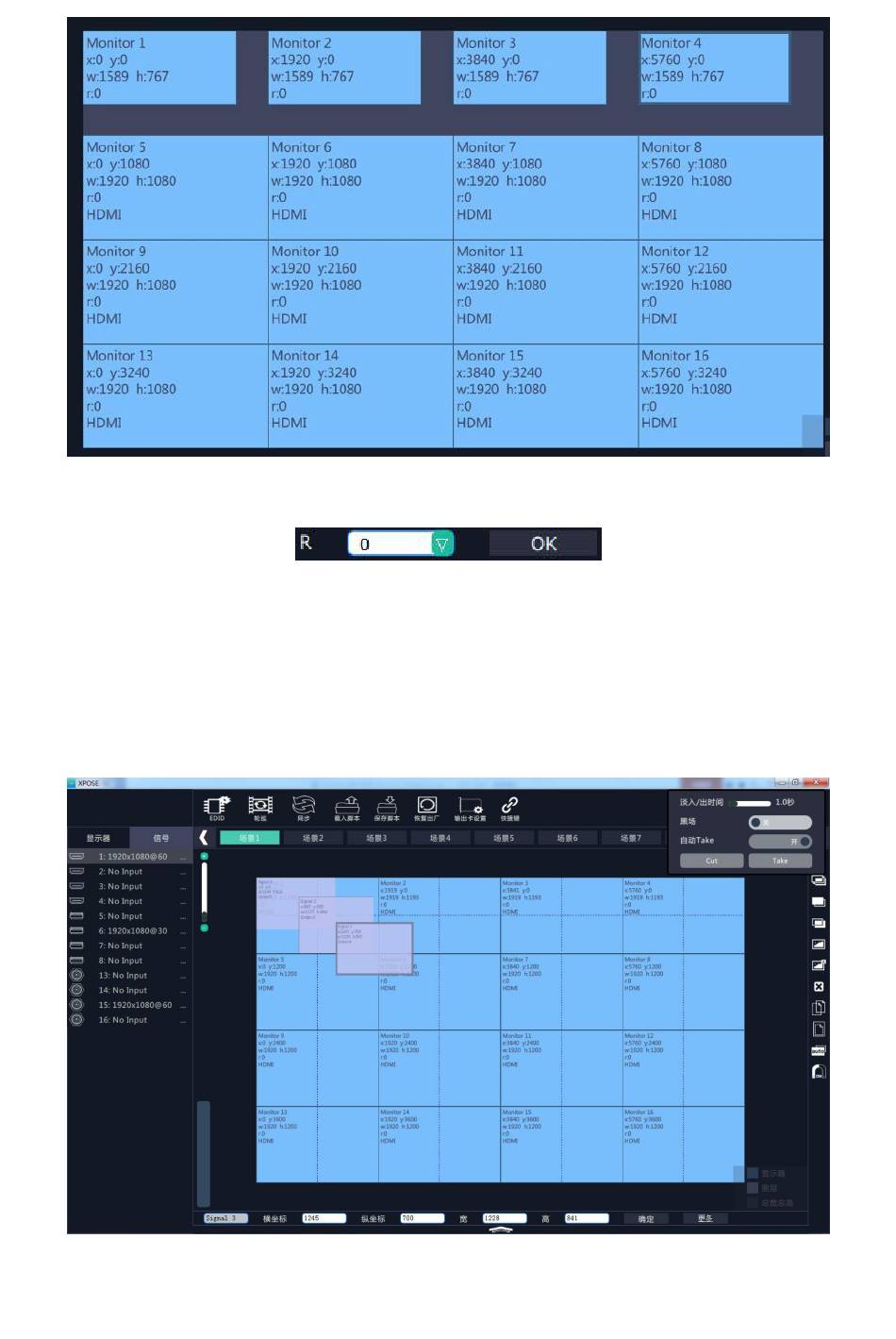

Rotation: Select the monitor, and set the rotation as 0°, 90°, 180° and 270° in the bottom of the interface. Click
"OK" to confirm. As shown in the figure below:
Right click the monitor can also rotate the monitor.
Output Area Size Setting: Move the mouse to the output area and slide the mouse wheel, the output area size
can be zoom in and out.
Layer Setting
New Layer: In output screen zone of controlling software, press the left mouse key and drag on the intended
output screen to cover the whole current screen. And the below interface will be displayed. A layer can also be
opened by double clicking the left signal source to be shown on the window.
Adjust Layer: Two ways can change the size and location of the opened layer:
19
