RGBlink X2 Quick Start Manual page 18

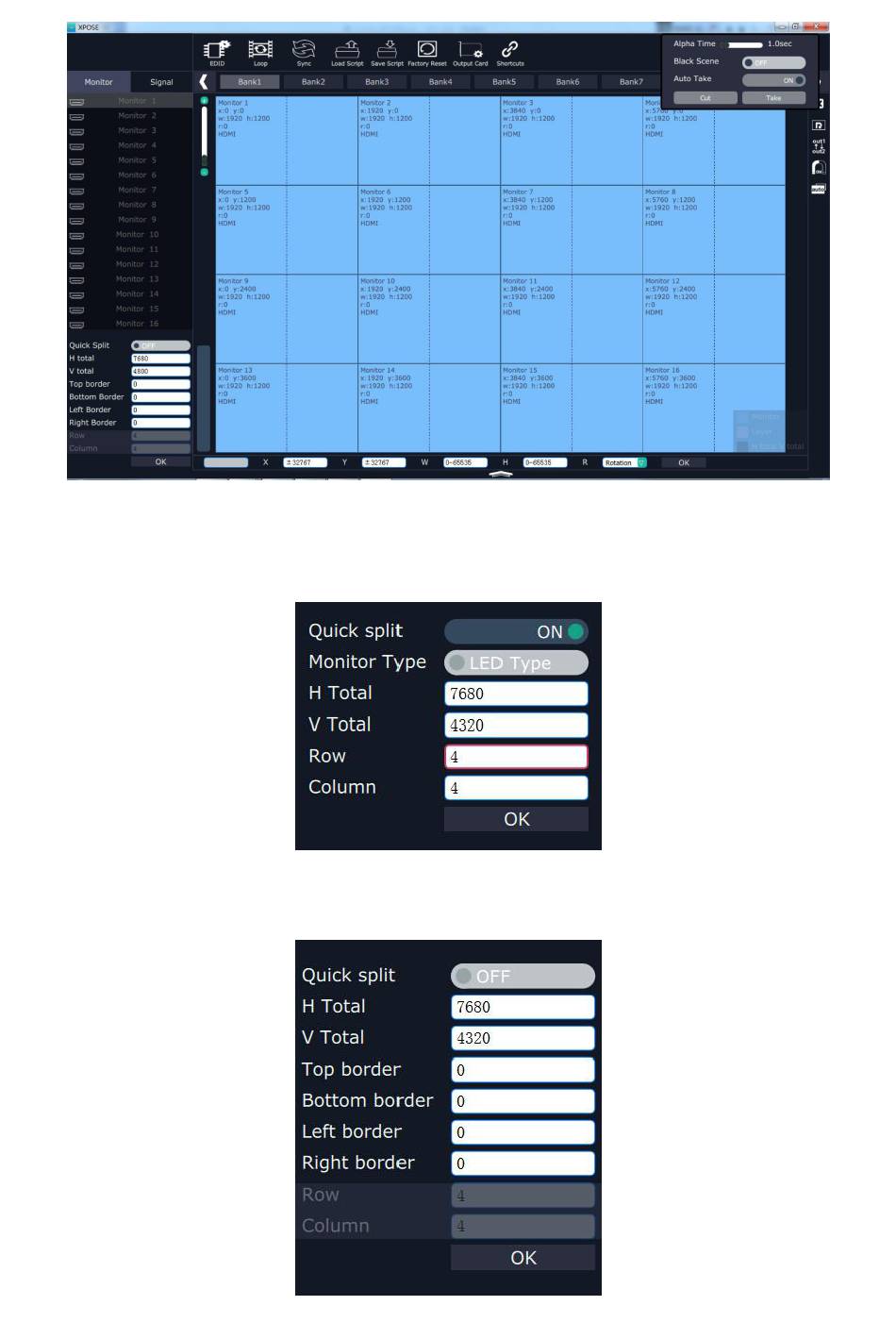

Split Mode: Default quick split "OFF". User can enable the quick split function by sliding the switch to "ON". LED
type and LCD type can also be selected by sliding the monitor type switch, specific as follows:
LED Type: Default LED type. In LED type, user can custom the H total, V total, row and column, as shown in the
figure below:
LCD Type: Slide the monitor type switch, and select "LCD Type". Besides H total, V total, row and column, user
can custom the top border, bottom border, left border and right border in LCD type, as shown in the figure
below:
17
