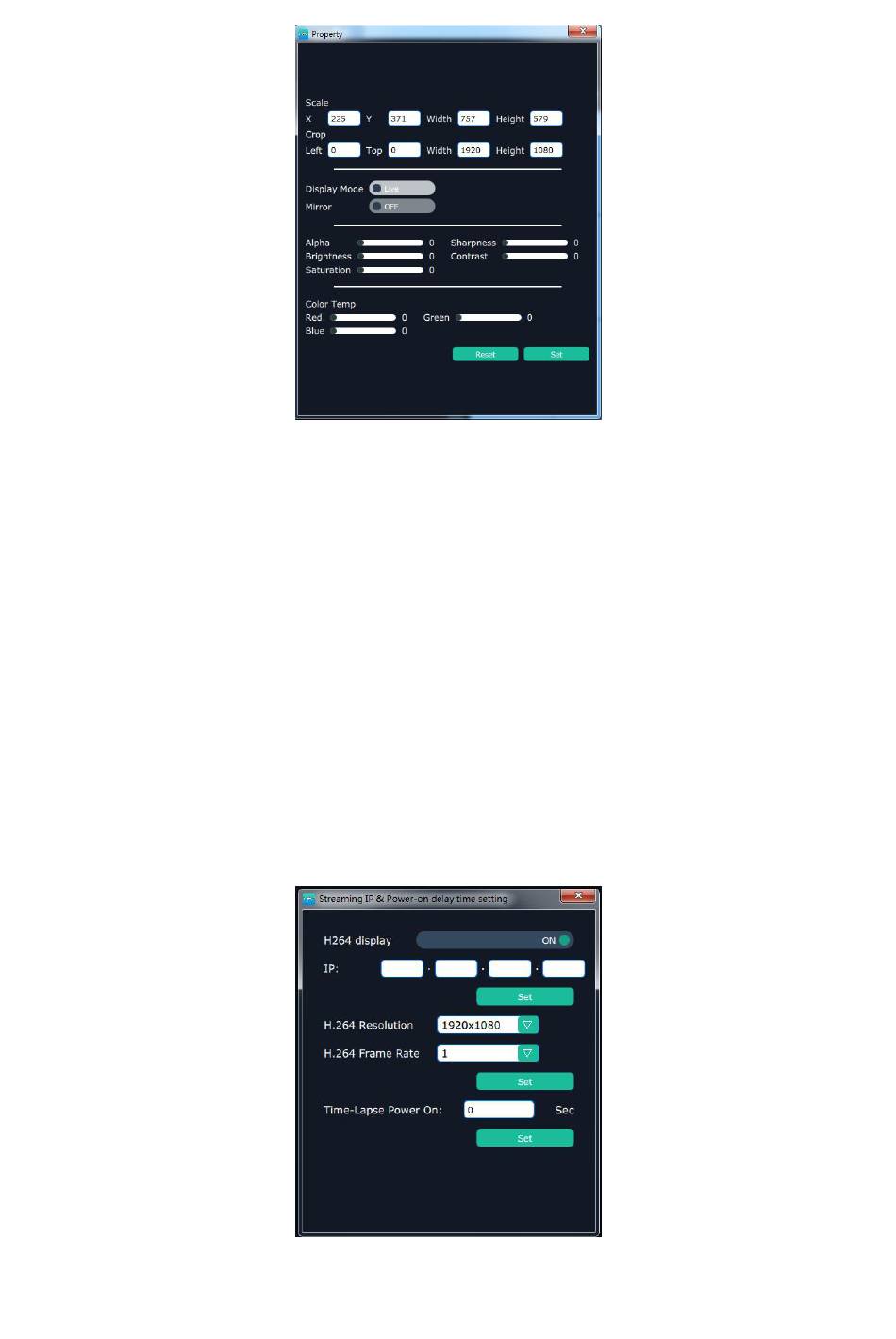

Scale: Set the X, Y, width and height.
Crop: Crop the left, top, width and height.
Display Mode: Select "Live" or "Freeze".
Mirror: Enable or disable the mirror function, default "OFF".
Bypass Mode: Enable or disable the bypass mode. When select "ON", the output format will be the same with
the input format.
Alpha: Set the alpha, the adjustment range is 0~128.
Sharpness: Set the sharpness, the adjustment range is 0~100.
Brightness: Set the brightness, the adjustment range is 0~100.
Contrast: Set the contrast, the adjustment range is 0~100.
Saturation: Set the saturation, the adjustment range is 0~100.
Color Term: Set the color temp (red, green and blue), the adjustment range is 0~100.
Reset: Select "Reset", the input property will be recover to factory setting.
H264 Video Preview
Select "System Settings" and click "Streaming IP & Power On Setting", Set "ON" for "H264 Display", as shown in
the figure below:
Then enter to the videowall mode, the bottom of the interface will display the H264 video, as shown in the
figure below, which is for preview.
