DVC6005 Digital Valve Controllers
March 2018
DVC6015 Remote Mount Feedback Unit on Sliding‐Stem Linear Actuators up to
102 mm (4 inches) Travel
Note
If ordered as part of a control valve assembly, the factory mounts the DVC6015 remote feedback unit on the actuator. If you
purchased the remote feedback unit separately, you will need a mounting kit to mount the remote feedback unit on the actuator.
See the instructions that come with the mounting kit for detailed information on mounting the remote feedback unit to a specific
actuator model.
The DVC6015 remote feedback unit mounts on sliding‐stem actuators with up to 102 mm (4 inch) travel. Figure 3
shows a typical mounting on an actuator with up to 51 mm (2 inch) travel. Figure 4 shows a typical mounting on
actuators with 51 to 102 mm (2 to 4 inch) travel. For actuators with greater than 102 mm (4 inch) travel, see the
guidelines for mounting a DVC6025 remote feedback unit.

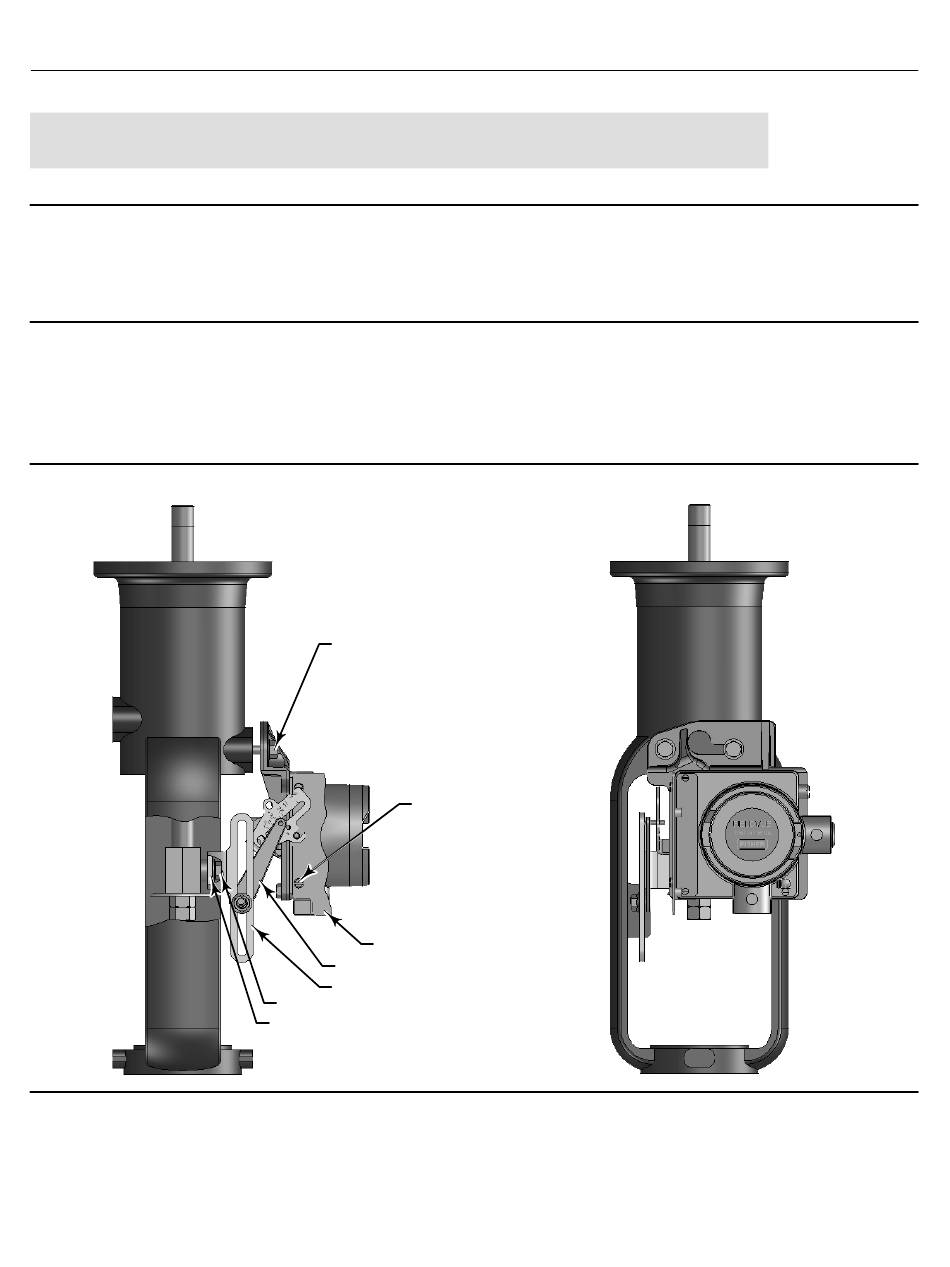

Figure 3. FIELDVUE DVC6015 Remote Feedback Unit Mounted on Sliding‐Stem Actuators with up to 2 Inches Travel
X0910
Refer to the following guidelines when mounting on sliding‐stem actuators with up to 4 inches of travel.
1. Isolate the control valve from the process line pressure and release pressure from both sides of the valve body. Shut
off all pressure lines to the actuator, releasing all pressure from the actuator. Use lock‐out procedures to be sure
that the above measures stay in effect while you work on the equipment.
6
CAP SCREW, FLANGED
MACHINE SCREW
SHIELD
ADJUSTMENT ARM
CONNECTOR ARM
CAP SCREW
PLAIN WASHER
X0909
Quick Start Guide
D103784X012
