Instruction Manual
Form 5469
March 2004
67C Series Instrument Supply Regulators
W7412

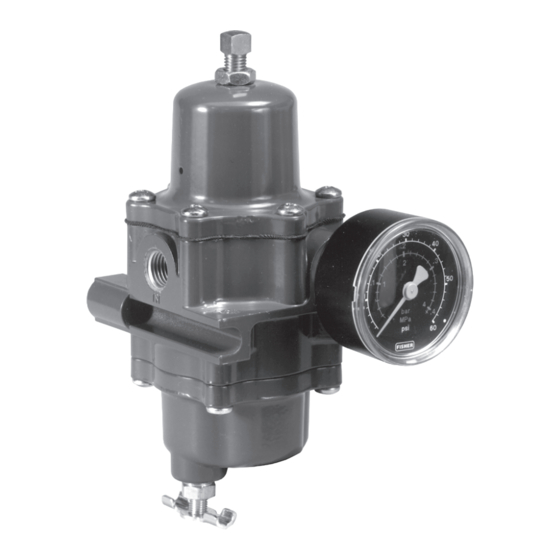

TYPE 67CF FILTER REGULATOR
WITH OPTIONAL GAUGE
Introduction
Scope of Manual
This manual provides instructions and parts lists for
67C Series instrument supply regulators. Instructions
and parts lists for other equipment mentioned in this
instruction manual, as well as for other 67 Series
regulators, are found in separate manuals.
Product Descriptions
The 67C Series direct-operated regulators are typically
used to provide constantly controlled, reduced pressures
to pneumatic and electropneumatic controllers and other
instruments. They are suitable for most air or gas applica-
tions. Other applications include providing reduced
pressures to air chucks, air jets, and spray guns.

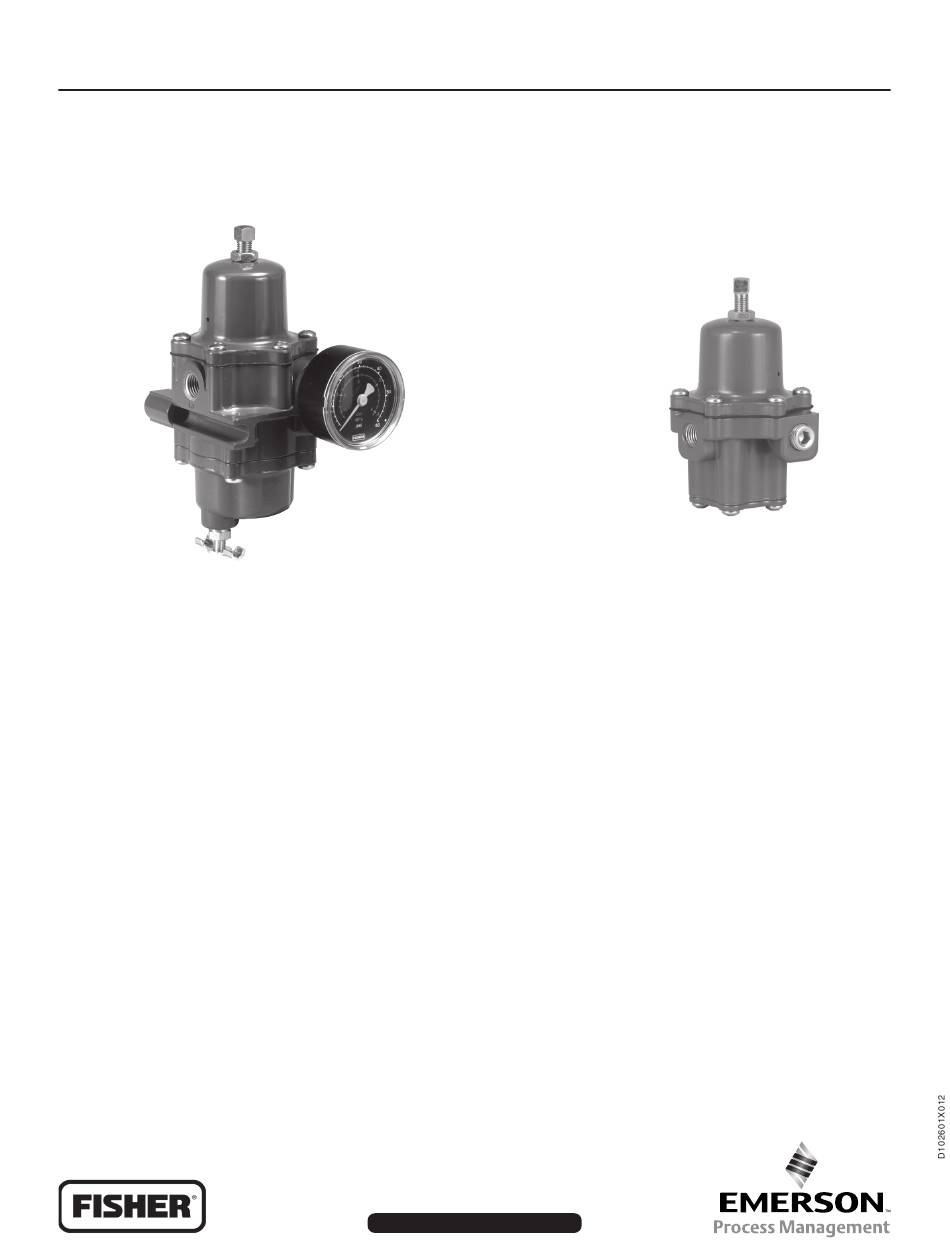

Figure 1. Typical 67C Series Regulators
• The Type 67C and 67CS is the standard instrument
supply regulator without a filter or internal relief.
• The Type 67CF and 67CFS are equipped with a
filter for removing particles from the supply gas.
• The Type 67CR and 67CSR has an internal relief
valve with a soft seat for reliable shutoff with no
discernible leakage.
• The Type 67CFR and 67CFSR have a filter and
internal relief valve with a soft seat for reliable shutoff
with no discernible leakage.
Specifications
Some general 67C Series ratings and other
specifications are given on page 2. A label on the
spring case gives the control spring range for a given
regulator as it comes from the factory.
www.FISHERregulators.com
67C Series
W8438
TYPE 67C OR 67CR
REGULATOR

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Fisher 67C and is the answer not in the manual?

Questions and answers

Summary of Contents for Emerson Fisher 67C

  • Page 1 Instruction Manual 67C Series Form 5469 March 2004 67C Series Instrument Supply Regulators W8438 TYPE 67C OR 67CR W7412 REGULATOR TYPE 67CF FILTER REGULATOR WITH OPTIONAL GAUGE Figure 1. Typical 67C Series Regulators Introduction • The Type 67C and 67CS is the standard instrument supply regulator without a filter or internal relief.
  • Page 2: Specifications

    67C Series Specifications Smart Bleed™ Check Valve Setpoint Body Size, Inlet and Outlets Connection Style 6 psi (0,4 bar) differential 1/4-inch NPT Type 67CF, 67CFR, 67CFS, and 67CFSR Filter Maximum Inlet Pressure (Body Rating) Capabilities All except 67CS and 67CSR: 250 psig (17,2 bar) Free Area: 12 times pipe area Type 67CS and 67CSR: 400 psig (27,6 bar) Micron Rating: Cellulose Element: 40 microns...
  • Page 3: Principle Of Operation

    67C Series TYPE 67CR OR 67CSR TYPE 67CF OR 67CFS TYPE 67C OR 67CS INLET PRESSURE W7433 OUTLET PRESSURE ATMOSPHERIC PRESSURE TYPE 67CFR OR 67CFSR SMART BLEED™ OPTION TYPE 67CFR ONLY Figure 2. 67C Series Operational Schematics Principle of Operation Smart Bleed™...
  • Page 4: Installation

    67C Series Types 67CR, 67CSR, 67CFR, 67CFSR have a low gas service, vented gas may accumulate capacity internal relief valve for minor seat leakage and cause personal injury, death, or only. Other overpressure protection must be provided if property damage due to fire or explosion. the maximum inlet pressure can exceed the maximum Vent a regulator in hazardous gas service pressure rating of the downstream equipment or exceeds...
  • Page 5: Startup And Adjustment

    67C Series 7. Apply a good grade of pipe compound to the male pressure setting. Retighten the locknut to maintain the adjustment position. pipe threads before making connections, making sure not to get the pipe compound inside the regulator. 8. Install tubing fitting or piping into the 1/4-inch NPT Shutdown inlet connection on the body (key 1) and into the 1/4-inch NPT body outlet connection.
  • Page 6 67C Series 2. Inspect the removed parts for damage and debris. 7. When all maintenance is complete, refer to the Replace any damaged parts. Startup and Adjustment section to put the regulator back into operation and adjust the pressure setting. 3.
  • Page 7: Parts Ordering

    67C Series phragm assembly to make sure the valve plug (key 11) Description Part Number strokes smoothly and approximately 1/16-inch (2 mm). Parts Kits (continued) Types 67CF, 67CFR, and 67CFSR - Includes valve cartridge Note assembly (contains keys 10, 11, 12, 13, 14, and 15), diaphragm assembly (key 16), O-ring (key 4), filter element (key 6), filter In step 5, if installing a control spring of gasket (key 26), thrust washer (key 37), and four screws (key 3)
  • Page 8 67C Series Description Part Number Spring Case Type 67C, 67CR, 67CF, or 67CFR, Aluminum Drilled hole vent (standard) T14070T0012 1/4-inch NPT vent T14070T0022 Type 67CS, 67CSR, 67CFS or 67CFSR, Stainless steel 20C1727X012 Filter Retainer Type 67CF or 67CFR T14052T0012 Type 67CFS or 67CFSR T14052T0022 (1, 2) Valve Cartridge...
  • Page 9 67C Series GE03521 T40573-2 Figure 4. Type 67CS or 67CSR Assembly Drawing Figure 5. Type 67CF or 67CFR Assembly Drawing Description Part Number Description Part Number 1/4-Inch Pipe Plug (not shown) Thrust Washer (Type 67CF, 67CFR, 67CFS, or 67CFSR) Socket head, steel 1C333528992 Nitrile (NBR) T14196T0012...
  • Page 10 67C Series Figure 7. 67C Series Optional Panel Mount 40C1728 Figure 6. Type 67CFS or 67CFSR Assembly Drawing VENT POSITION 2 DRAIN VALVE POSITION 4 DRAIN VALVE VENT POSITION 1 VENT POSITION 3 POSITION 1 (STANDARD) (STANDARD) DRAIN VALVE POSITION 3 INLET OUTLET INLET...
  • Page 11 67C Series PUSHER POST (WITHOUT RELIEF) LOWER SPRING RETAINING RING SEAT DIAPHRAGM PLATE B2698 PUSHER POST DIAPHRAGM (WITH RELIEF) B2696 Figure 11. Optional Closing Cap (Only Available with the 1/4-inch Spring Case Vent) Figure 10. Diaphragm Assembly (Key 16) 0.18 (4,57) 0.50 0.32...
  • Page 12 67C Series Fisher is a mark owned by Fisher Controls International, Inc., a business of Emerson Process Management. The Emerson logo is a trademark and service mark of Emerson Electric Co. All other marks are the property of their respective owners.
