Pipestand Mounting
1. Position a standoff on the back of the DVC6005 base unit.
2. Using two 101.6 mm (4‐inch) 1/4‐20 hex head screws loosely attach the base unit to the pipestand with the
mounting bracket.
3. Position the second standoff, then, using the remaining 101.6 mm (4‐inch) hex head screws, securely fasten the
base unit to the pipe stand.
4. Tighten all screws.
5. Proceed to the appropriate remote feedback unit mounting procedure.

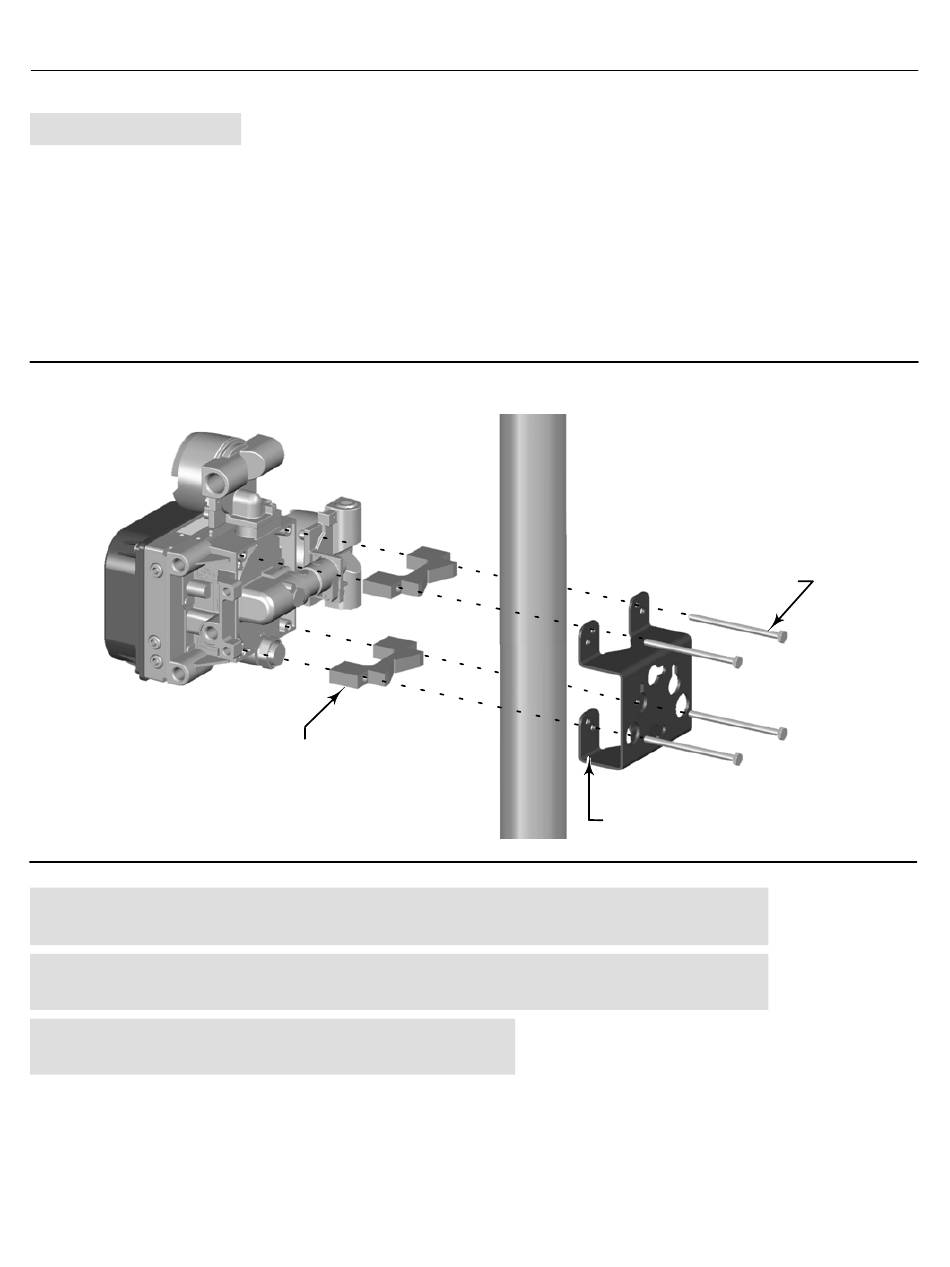

Figure 1. FIELDVUE DVC6005 Pipestand Mounting
X0437
For DVC6015 remote feedback unit on sliding‐stem linear actuators up to
102 mm (4 inches) travel proceed to page 6
For DVC6025 remote feedback unit on long-stroke [102-610 mm (4-24 inch)]
travel sliding‐stem actuators and rotary actuators proceed to page 9
For DVC6035 remote feedback unit on
quarter‐turn rotary actuators proceed to page 12
4
STANDOFF
Quick Start Guide
4‐INCH 1/4‐20
HEX HEAD SCREW
MOUNTING BRACKET
D103784X012
