Quick Start Guide
D103784X012
F fieldbus Devices
OUNDATION
Refer to the DVC6000f instruction manual, available at www.Fisher.com or from your
Business Partner, for additional information.
The remote mount base unit is normally powered over the bus from a power supply. Refer to the F
site planning guide, available from your Emerson Automation Solutions sales office, for proper wire types,
termination, length, grounding practices, etc.
Note
To avoid the valve going to an unknown position when power is applied, the digital valve controller is shipped from the factory
with the transducer block mode Out of Service.
Wire the remote mount base unit as follows, refer to figure 21.
1. Remove the wiring terminal box cap.
2. Bring the field wiring into the terminal box. When applicable, install conduit using local and national electrical codes
which apply to the application.
3. The instrument is not polarity sensitive. Connect one wire from the controller output to one of the LOOP screw
terminals in the terminal box shown in figure 21. Connect the other wire from the controller output to the other
LOOP screw terminal in the terminal box.

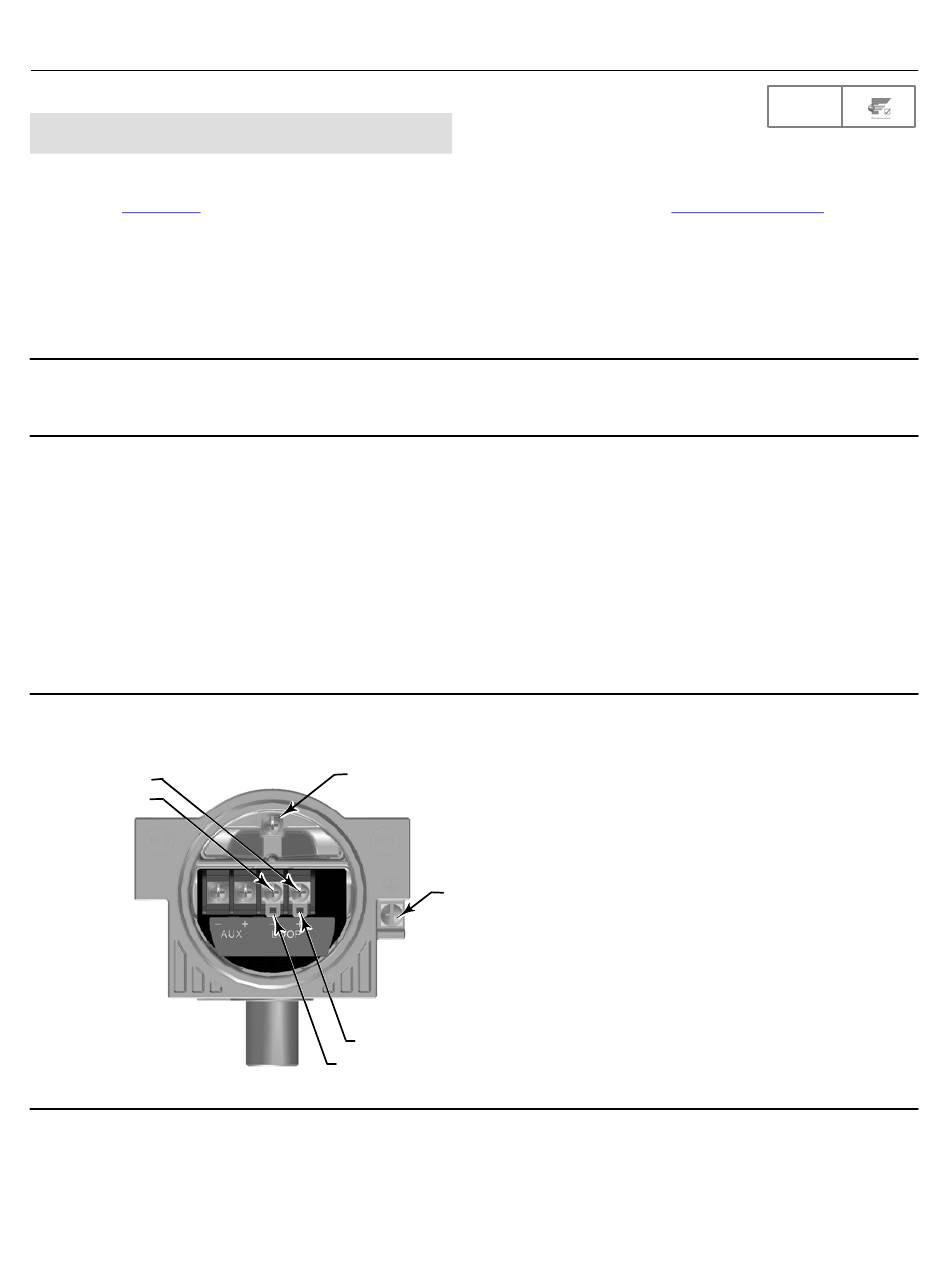

Figure 21. Loop Connections Terminal Box
LOOP +
LOOP -
X0438
SAFETY GROUND
EARTH GROUND
TALK +
TALK -
DVC6005 Digital Valve Controllers
Emerson sales office
OUNDATION
March 2018
or Local
fieldbus
25
