DVC6005 Digital Valve Controllers
March 2018
WARNING
To avoid personal injury or property damage resulting from bursting or parts, do not exceed maximum supply pressure.
Personal injury or property damage may result from fire or explosion if natural gas is used as the supply medium and
appropriate preventive measures are not taken. Preventive measures may include, but are not limited to, one or more of
the following: Remote venting of the unit, reevaluating the hazardous area classification, ensuring adequate ventilation,
and the removal of any ignition sources.
Note
The Natural Gas Certified, Single Seal device option simplifies conduit sealing requirements. Natural Gas Certified, Single Seal
instruments can be identified by the natural gas approval label shown in figure 15. Read and follow all local, regional, and federal
wiring requirements for natural gas installations. Contact your
obtaining a Natural Gas Certified, Single Seal DVC6005 digital valve controller.

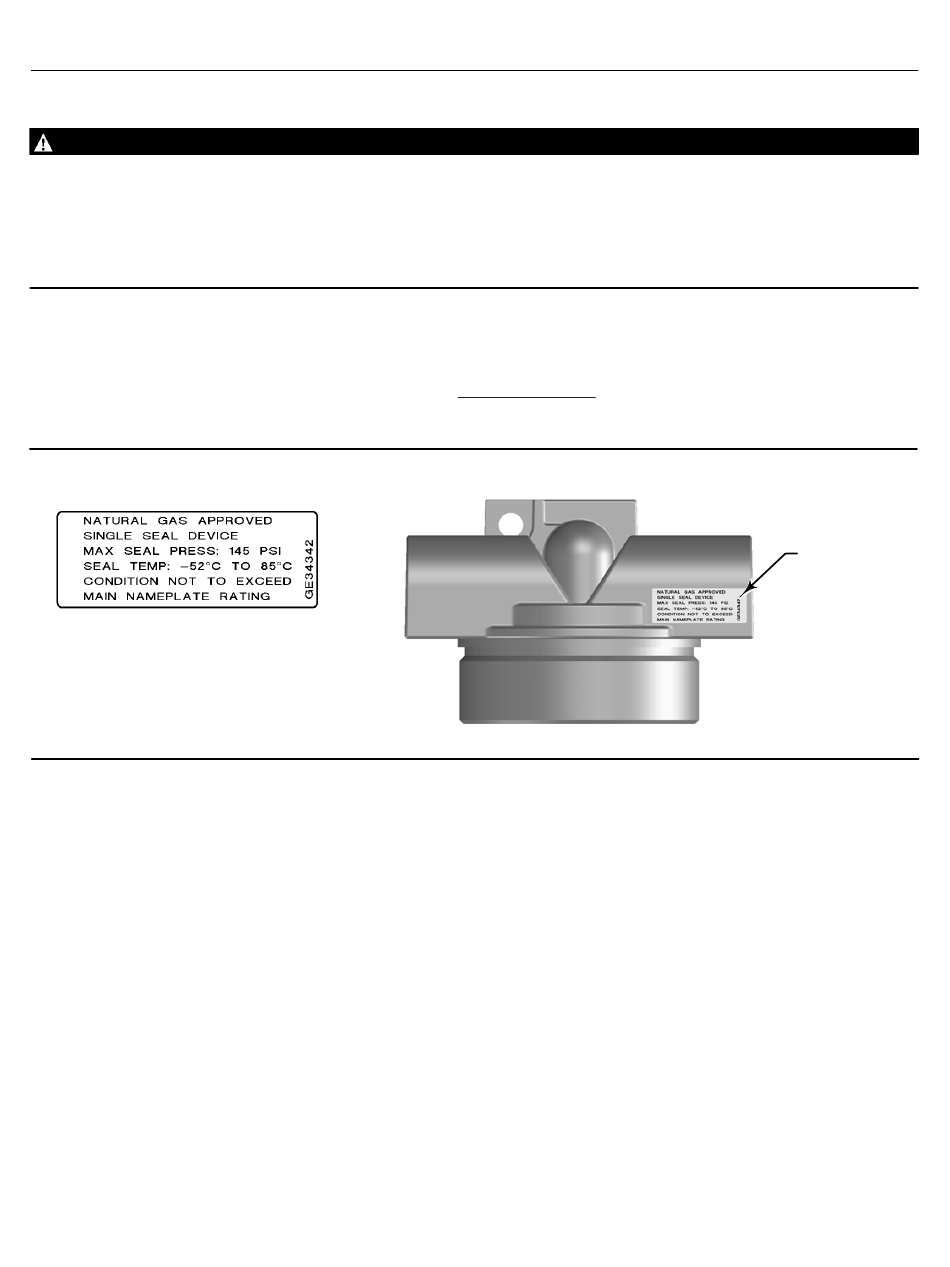

Figure 15. Label for Natural Gas Certified Terminal Box
4. Connect the pneumatic supply line to the 1/4 NPT IN connection on the filter regulator.
5. Proceed to Step 3—Connect the Electrical Wires on page 19.
18
Emerson sales office
or Local Business Partner for information on
X0748
Quick Start Guide
D103784X012
LABEL LOCATED
ON TOP OF
TERMINAL BOX
