DVC6005 Digital Valve Controllers
March 2018
6. Attach the mounting bracket to the digital valve controller.
7. Position the digital valve controller so that the pin on the travel indicator, engages the slot in the feedback arm and
that the bias spring loads the pin as shown in figure 12. Attach the digital valve controller to the actuator or
positioner plate.

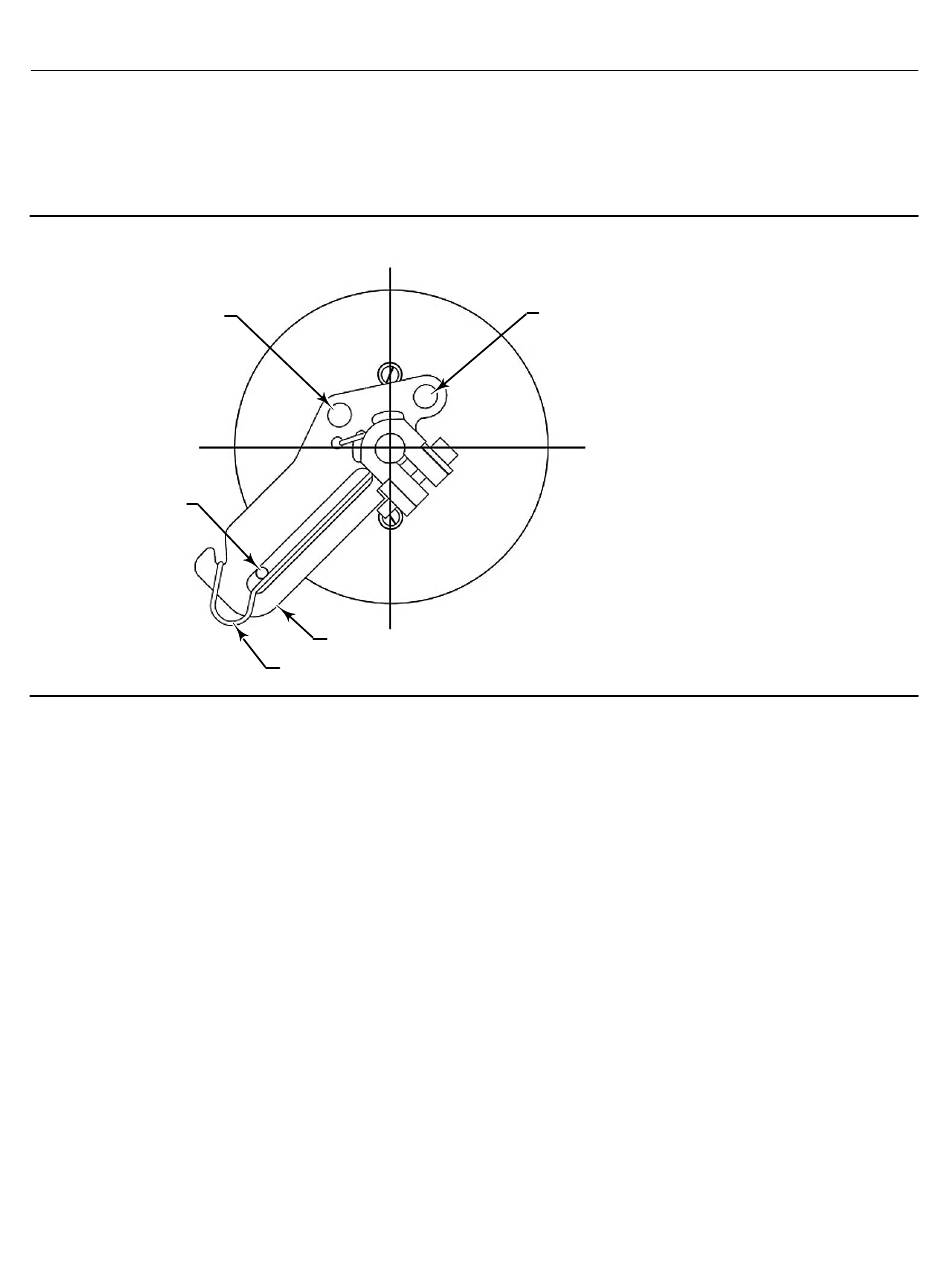

Figure 12. Positioning Travel Indicator Pin in the Feedback Arm (Viewed as if Looking from the FIELDVUE DVC6030
toward the Actuator)
HOLE B
TRAVEL
INDICATOR PIN
E1567
8. If a travel indicator scale is included in the mounting kit, attach the scale as described in the mounting kit
instructions.
9. Proceed to Step 2—Connect the Pneumatic Tubing on page 15.
14
FEEDBACK ARM
BIAS SPRING
HOLE A
Quick Start Guide
D103784X012
