Quick Start Guide
D103784X012
Wall Mounting
1. Install the wall mounting screws by using the mounting bracket as a template.
2. Install the mounting bracket to the back of the base unit using the spacers and screws provided in the mounting kit.
3. Slide the assembly on the wall mounting screws and tighten.
4. Proceed to the appropriate remote feedback unit mounting procedure.

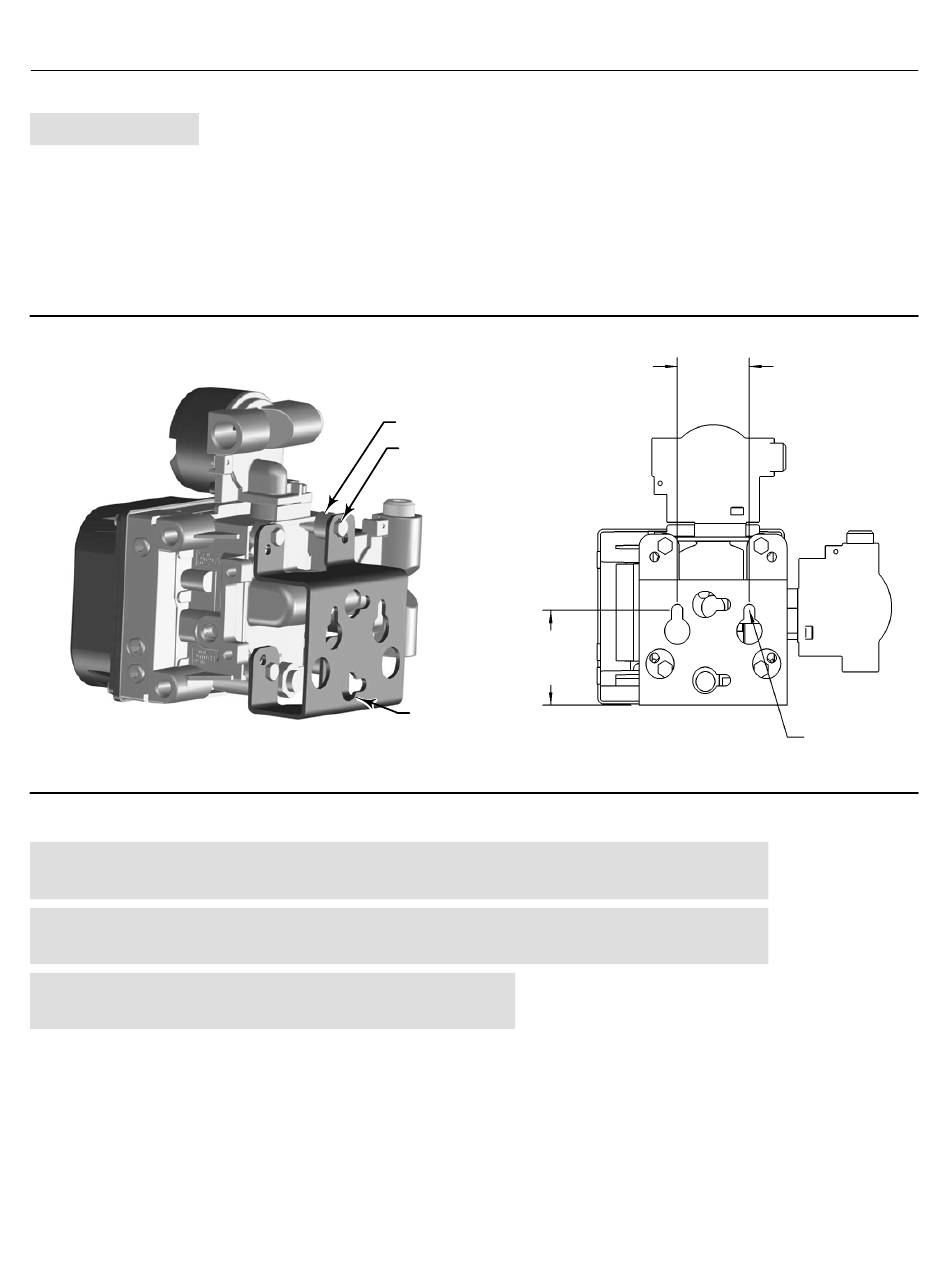

Figure 2. FIELDVUE DVC6005 Wall Mounting
X0428
For DVC6015 remote feedback unit on sliding‐stem linear actuators up to
102 mm (4 inches) travel proceed to page 6
For DVC6025 remote feedback unit on long-stroke [102-610 mm (4-24 inch)]
travel sliding‐stem actuators and rotary actuators proceed to page 9
For DVC6035 remote feedback unit on
quarter‐turn rotary actuators proceed to page 12
SPACER
1‐INCH 1/4‐20
HEX HEAD
SCREW
72
(2.82)
MOUNTING
10C1796‐A
BRACKET
DVC6005 Digital Valve Controllers
57
(2.25)
2 MOUNTING
HOLES
O 8.6/0.34
March 2018
