DVC6005 Digital Valve Controllers
March 2018
DVC6035 Remote Feedback Unit on Quarter‐Turn Rotary Actuators
Note
If ordered as part of a control valve assembly, the factory mounts the DVC6035 remote feedback unit on the actuator. If you
purchased the remote feedback unit separately, you will need a mounting kit to mount the remote feedback unit on the actuator.
See the instructions that come with the mounting kit for detailed information on mounting the remote feedback unit to a specific
actuator model.
Figure 10 shows an example of mounting on a quarter‐turn actuator. Refer to figure 10 for parts locations. Refer to the
following guidelines when mounting on quarter‐turn actuators:

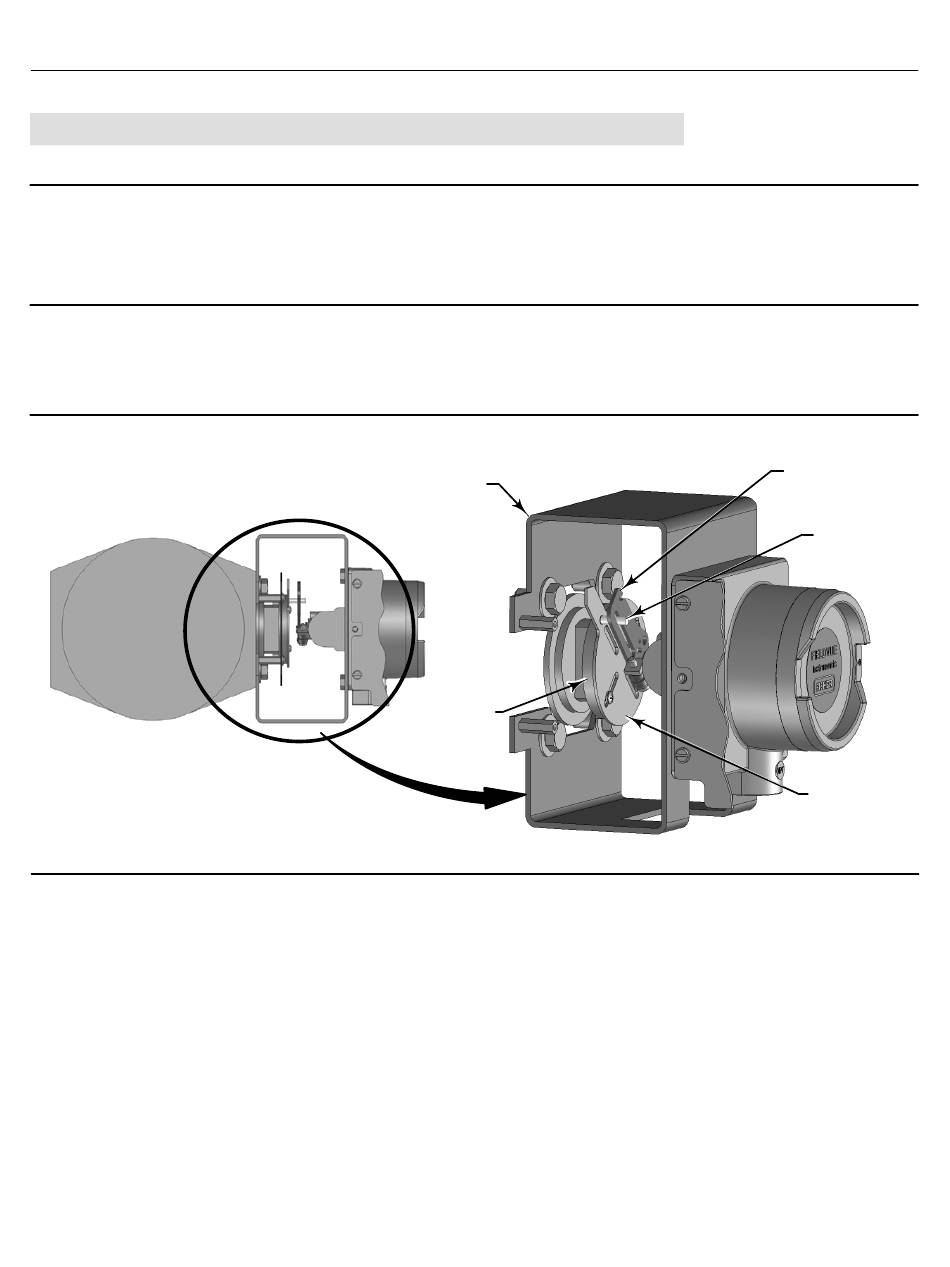

Figure 10. Mounting a FIELDVUE DVC6030 Remote Feedback Unit on a Rotary Actuator (Fisher 1032 Size 425A
Shown)
X0917
1. Isolate the control valve from the process line pressure and release pressure from both sides of the valve body. Shut
off all pressure lines to the pneumatic actuator, releasing all pressure from the actuator. Use lock‐out procedures to
be sure that the above measures stay in effect while working on the equipment.
2. If necessary, remove the existing hub from the actuator shaft.
3. If a positioner plate is required, attach the positioner plate to the actuator as described in the mounting kit
instructions.
4. If required, attach the spacer to the actuator shaft.
12
MOUNTING
BRACKET
SPACER
X0916
Quick Start Guide
D103784X012
FEEDBACK ARM
TRAVEL
INDICATOR PIN
TRAVEL
INDICATOR
