6.

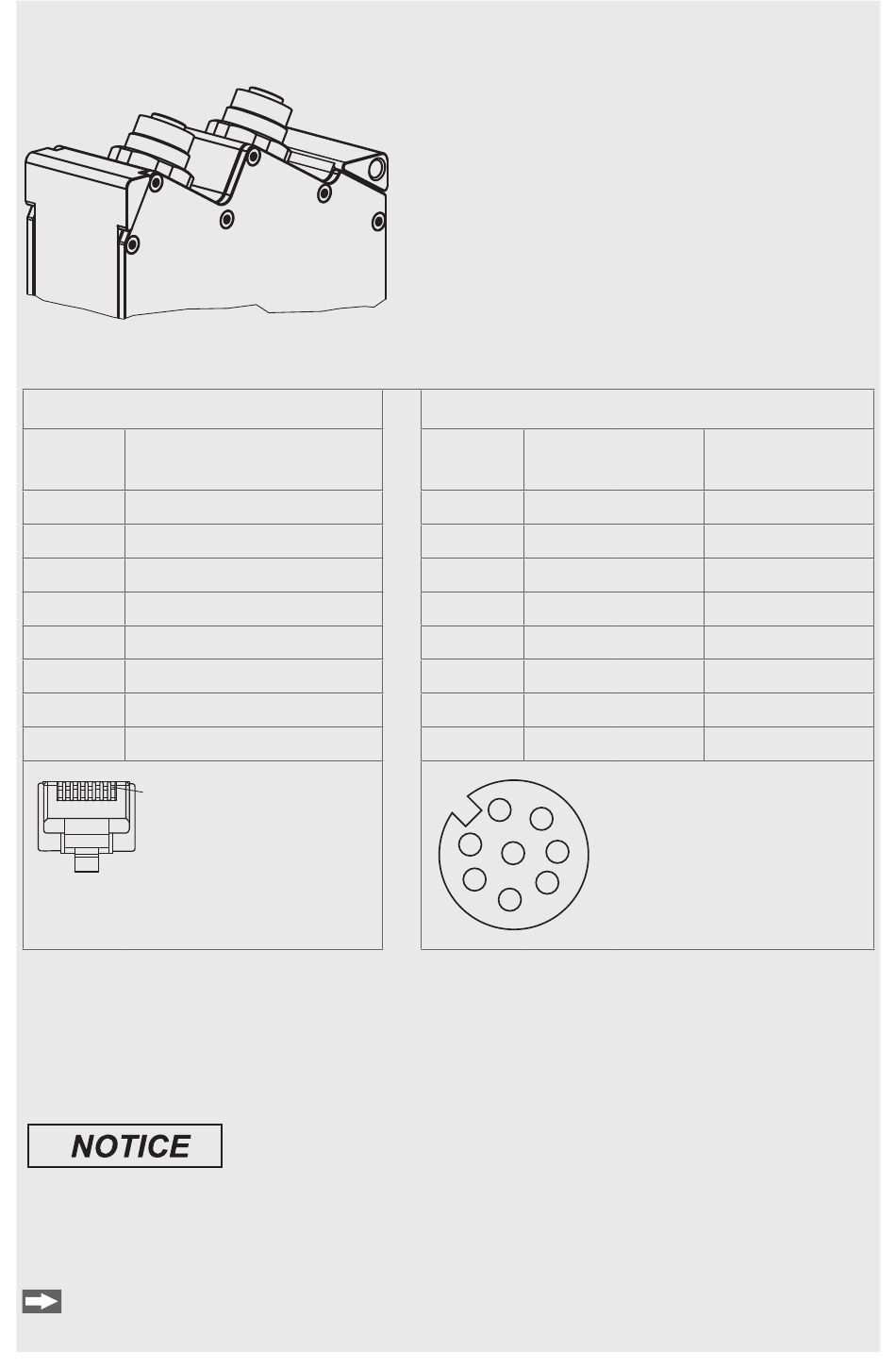

Connections, LED Displays

1
Ethernet Connection, Standard Connection to PC
RJ45 connector
Pin no. Color stranded hook-up
wire SC2600/2900-x
1 white (orange)
2 orange
3 white (green)
4 blue
5 white (blue)
6 green
7 white (brown)
8 brown
1
- The sensor supports an automatically, sensor-adapted IP address in the link-local-
net (169.254.x.x). No collision detection is implemented.
This is also the default setting.
- The sensor supports DHCP . This setting is activated by default and has priority
over the retrieval in the link-local-net.
- The sensor scanCONTROL 2900/2950BL supports Power over Ethernet.
- A fixed IP address can be assigned.
Use the program "SensorFinder" delivered on the CD, to make the above-de-
scribed sensor settings.
2
View on pin
side male cable
connector
If the sensor is connected to a network adapter/switch that
is capable of POE and if you also use the power supply of
the multifunction port, these two power supplies have to be
galvanically isolated.
> Damage of the sensor and/or the Ethernet card!
1 Ethernet port
2 Multifunction port (Power supply, IO)
8-pin screw connector (sensor side)
Pin no. 10BaseT,
100BaseTX
5 Tx+
6 Tx-
8 Rx+
1
2
7 Rx-
3
4
2
3
1
8
4
7
5
6
1000BaseT
D1+
D1-
D2+
D3+
D3-
D2-
D4+
D4-
View on solder pin side
screw connector
