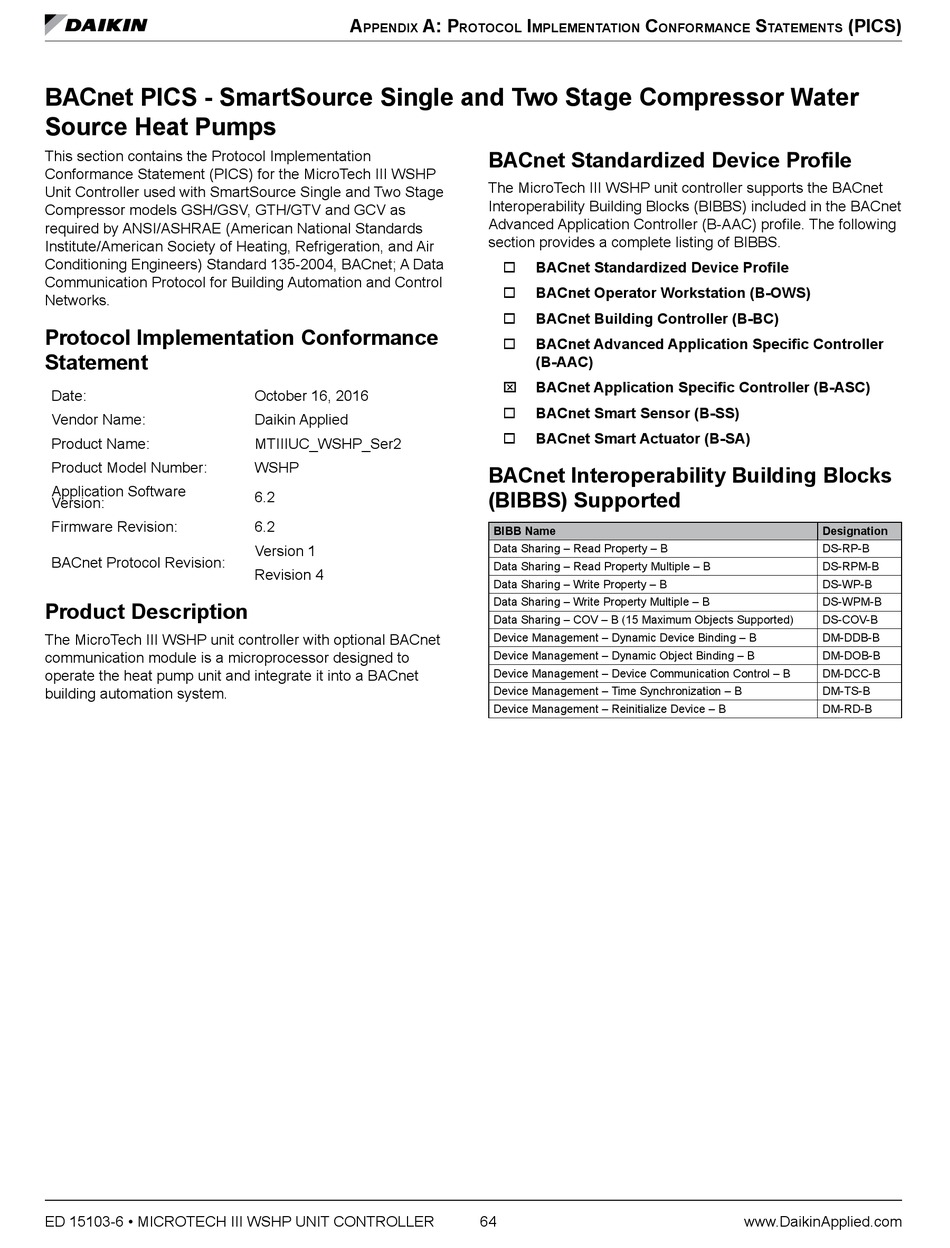

BACnet PICS - SmartSource Single and Two Stage Compressor Water
Source Heat Pumps
This section contains the Protocol Implementation
Conformance Statement (PICS) for the MicroTech III WSHP
Unit Controller used with SmartSource Single and Two Stage
Compressor models GSH/GSV, GTH/GTV and GCV as
required by ANSI/ASHRAE (American National Standards
Institute/American Society of Heating, Refrigeration, and Air
Conditioning Engineers) Standard 135-2004, BACnet; A Data
Communication Protocol for Building Automation and Control
Networks.
Protocol Implementation Conformance
Statement
Date:
Vendor Name:
Product Name:
Product Model Number:
Application Software
Version:
Firmware Revision:
BACnet Protocol Revision:

Product Description

The MicroTech III WSHP unit controller with optional BACnet
communication module is a microprocessor designed to
operate the heat pump unit and integrate it into a BACnet
building automation system.
ED 15103-6 • MICROTECH III WSHP UNIT CONTROLLER
a a: p
ppendIx
October 16, 2016
Daikin Applied
MTIIIUC_WSHP_Ser2
WSHP
6.2
6.2
Version 1
Revision 4
I
roToCol mplemenTaTIon

BACnet Standardized Device Profile

The MicroTech III WSHP unit controller supports the BACnet
Interoperability Building Blocks (BIBBS) included in the BACnet
Advanced Application Controller (B-AAC) profile. The following
section provides a complete listing of BIBBS.
BACnet Standardized Device Profile

BACnet Operator Workstation (B-OWS)

BACnet Building Controller (B-BC)

BACnet Advanced Application Specific Controller

(B-AAC)
BACnet Application Specific Controller (B-ASC)

BACnet Smart Sensor (B-SS)

BACnet Smart Actuator (B-SA)

BACnet Interoperability Building Blocks
(BIBBS) Supported
BIBB Name
Data Sharing – Read Property – B
Data Sharing – Read Property Multiple – B
Data Sharing – Write Property – B
Data Sharing – Write Property Multiple – B
Data Sharing – COV – B (15 Maximum Objects Supported)
Device Management – Dynamic Device Binding – B
Device Management – Dynamic Object Binding – B
Device Management – Device Communication Control – B
Device Management – Time Synchronization – B
Device Management – Reinitialize Device – B
64
C s
onformanCe TaTemenTs
Designation
DS-RP-B
DS-RPM-B
DS-WP-B
DS-WPM-B
DS-COV-B
DM-DDB-B
DM-DOB-B
DM-DCC-B
DM-TS-B
DM-RD-B
