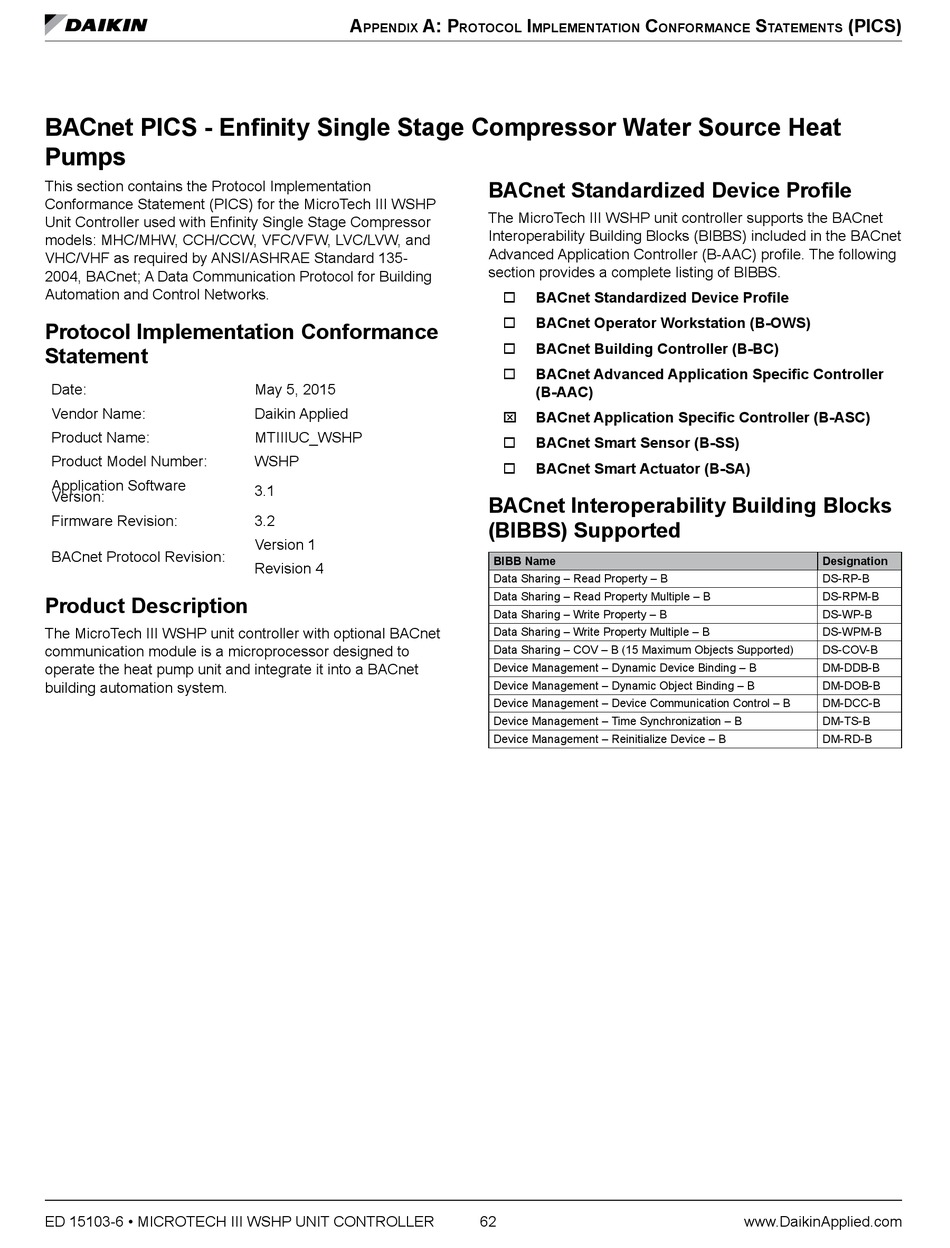

BACnet PICS - Enfinity Single Stage Compressor Water Source Heat
Pumps
This section contains the Protocol Implementation
Conformance Statement (PICS) for the MicroTech III WSHP
Unit Controller used with Enfinity Single Stage Compressor
models: MHC/MHW, CCH/CCW, VFC/VFW, LVC/LVW, and
VHC/VHF as required by ANSI/ASHRAE Standard 135-
2004, BACnet; A Data Communication Protocol for Building
Automation and Control Networks.
Protocol Implementation Conformance
Statement
Date:
Vendor Name:
Product Name:
Product Model Number:
Application Software
Version:
Firmware Revision:
BACnet Protocol Revision:

Product Description

The MicroTech III WSHP unit controller with optional BACnet
communication module is a microprocessor designed to
operate the heat pump unit and integrate it into a BACnet
building automation system.
ED 15103-6 • MICROTECH III WSHP UNIT CONTROLLER
a a: p
ppendIx
May 5, 2015
Daikin Applied
MTIIIUC_WSHP
WSHP
3.1
3.2
Version 1
Revision 4
I
roToCol mplemenTaTIon

BACnet Standardized Device Profile

The MicroTech III WSHP unit controller supports the BACnet
Interoperability Building Blocks (BIBBS) included in the BACnet
Advanced Application Controller (B-AAC) profile. The following
section provides a complete listing of BIBBS.
BACnet Standardized Device Profile

BACnet Operator Workstation (B-OWS)

BACnet Building Controller (B-BC)

BACnet Advanced Application Specific Controller

(B-AAC)
BACnet Application Specific Controller (B-ASC)

BACnet Smart Sensor (B-SS)

BACnet Smart Actuator (B-SA)

BACnet Interoperability Building Blocks
(BIBBS) Supported
BIBB Name
Data Sharing – Read Property – B
Data Sharing – Read Property Multiple – B
Data Sharing – Write Property – B
Data Sharing – Write Property Multiple – B
Data Sharing – COV – B (15 Maximum Objects Supported)
Device Management – Dynamic Device Binding – B
Device Management – Dynamic Object Binding – B
Device Management – Device Communication Control – B
Device Management – Time Synchronization – B
Device Management – Reinitialize Device – B
62
C s
onformanCe TaTemenTs
a a: p I
ppendIx roToCol mplemenTaTIon
Designation
DS-RP-B
DS-RPM-B
DS-WP-B
DS-WPM-B
DS-COV-B
DM-DDB-B
DM-DOB-B
DM-DCC-B
DM-TS-B
DM-RD-B
