ASSEMBLY

Tool:
6mm Allen Wrench

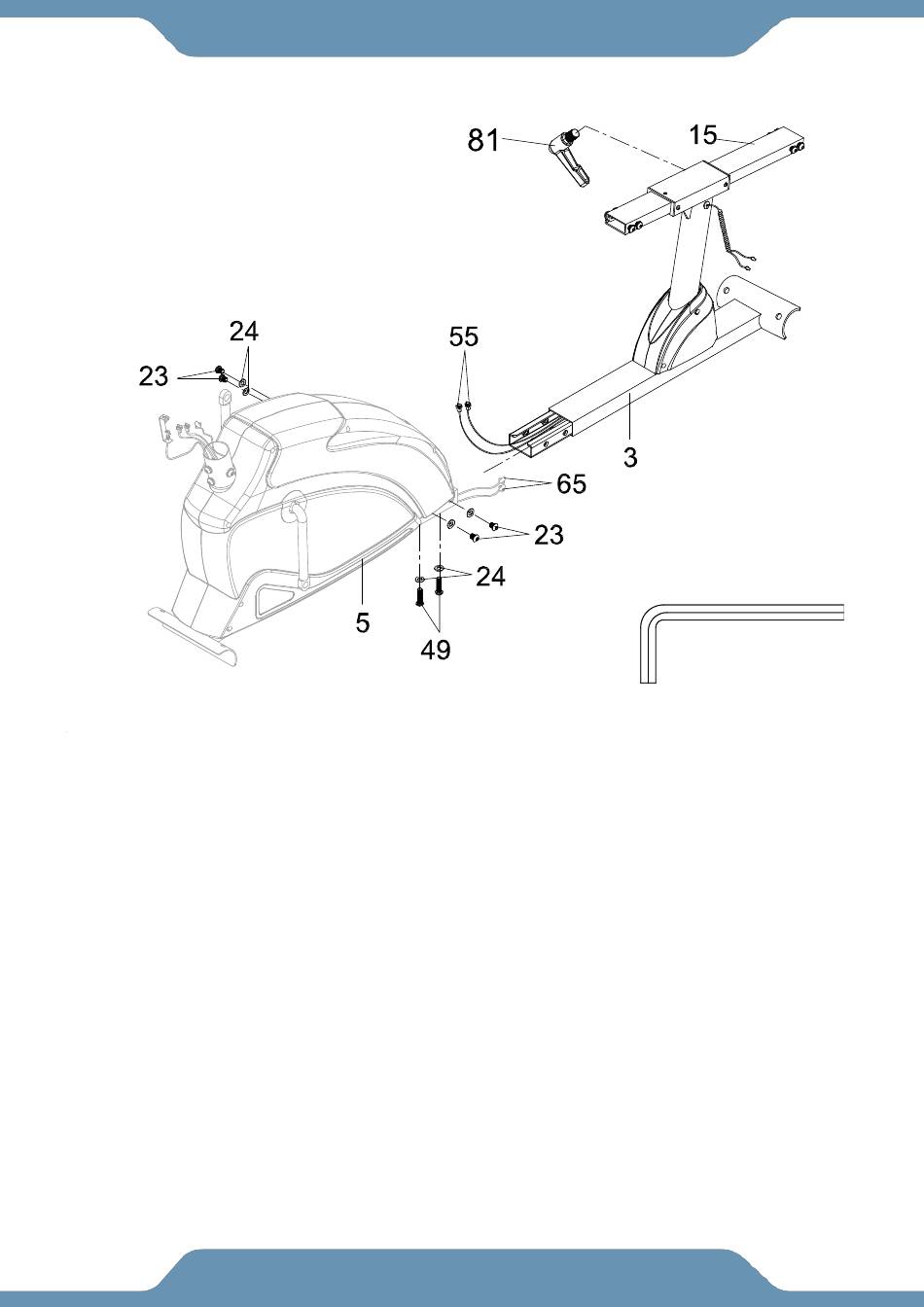

Step 1
1a. Removing the Hardware from the Rear Main Frame - Remove two Bolts (49),
four Bolts (23), and six Washers (24) from the Rear Main Frame (3). Remove bolts
with the 6mm Allen Wrench provided.
1b. Installing the Rear Main Frame - Connect the Middle Section Hand Pulse
Sensor Wires (55) from the Rear Main Frame (3) to the Extension Hand Pulse
Sensor Wires (65) from the Front Main Frame (5). Attach the Rear Main Frame (3)
into the Front Main Frame (5) with two Bolts (49), four Bolts (23), and six Washers (24)
that were removed. Tighten bolts with the 6mm Allen Wrench provided.
1c. Adjust the seat position and insert the Knob (81) in the clockwise direction to tighten.
