Summary of Contents for Exerpeutic ACTIVcycle 7101

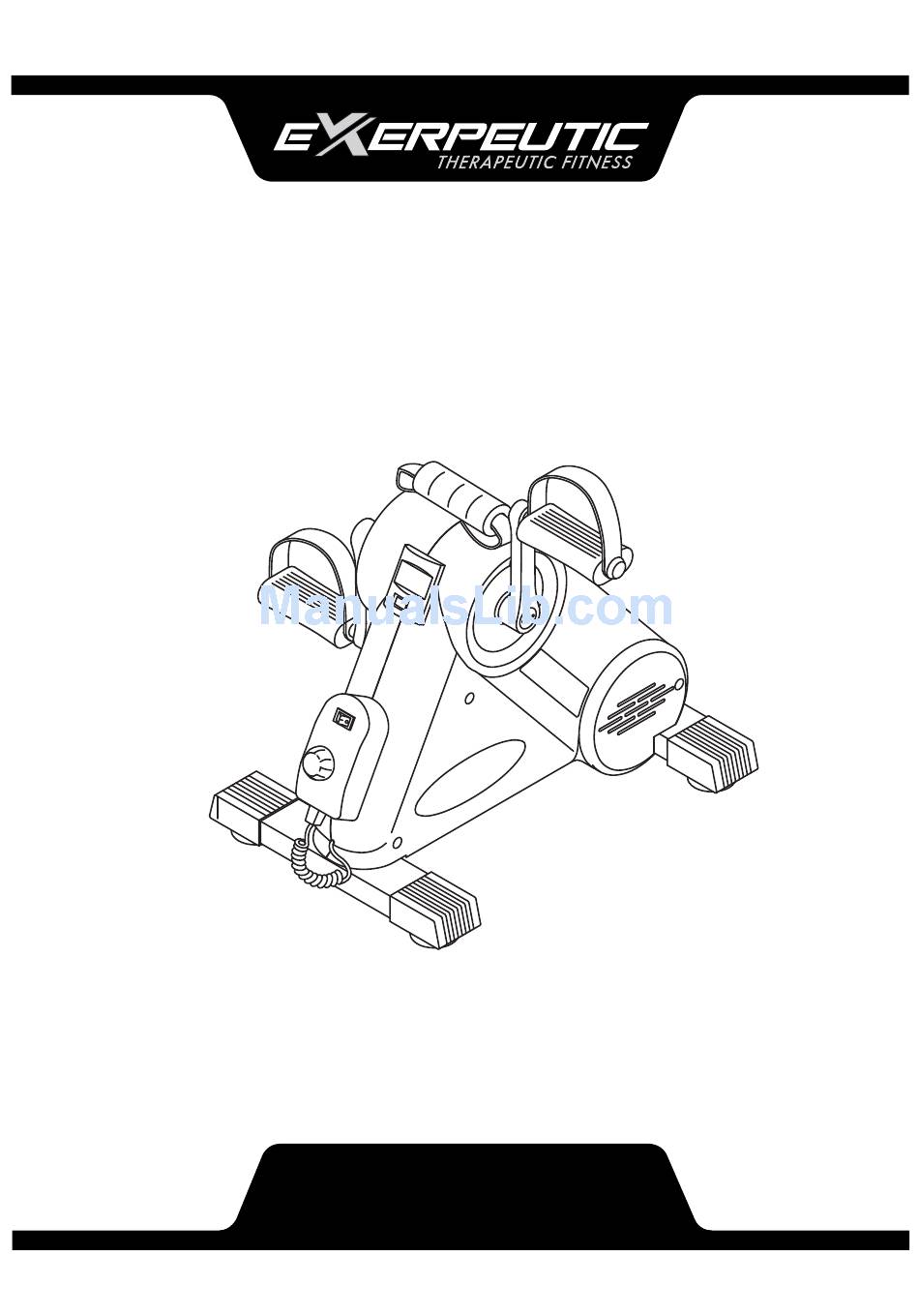

- Page 1 ACTIVcycle Item#7101 OWNER’S MANUAL ...
- Page 2 7101.2‐041715 ...
-
Page 3: Table Of Contents
TABLE OF CONTENTS SERVICE ------------------------------------------------------------------------- 2 LABEL PALCEMENT -------------------------------------------------------- 3 PRODUCT SAFETY ----------------------------------------------------------- 4 OVERVIEW DRAWING ------------------------------------------------------ 5 PARTS LIST --------------------------------------------------------------------- 6 SET UP----------------------------------------------------------------------------7 HOW TO USE------------------------------------------------------------------- 8 WORKOUT PRINCIPAL------------------------------------------------------ 9 EXERCISES---------------------------------------------------------------------10 WARRANTY----------------------------------------------------------------------12 FAX FROM-----------------------------------------------------------------------13... -
Page 4: Service
SERVICE IMPORTANT: FOR NORTH AMERICA ONLY To request product service and order replacement parts, please call our customer service department at: 1-844-641-7921 Daily 8:00 AM-5:00 PM Pacific Standard Time, service@paradigmhw.com or email us at: Please visit our website at www.paradigmhw.com. Please have the following information ready when requesting for service: Your name Phone number... -
Page 5: Label Palcement
LABEL PLACEMENT... -
Page 6: Product Safety
SAFETY PRECAUTIONS CAUTION: Read all instructions carefully before operating this product. Retain this owner’s manual and keep all original transaction receipt for future reference. 1. Consult your physician or other health care professional before beginning this or any other exercise program. 2. -
Page 7: Overview Drawing
OVERVIEW DRAWING ... -
Page 8: Parts List
PARTS LIST Description Qty No. Description Main Frame 400x320x279 1 15 Right Crank 4” (9/16”) End Cap(□25x50) 4 16 Left Crank 4” (9/16”) Motor 1 17 Bolt M8x20mm Bolt M6x12mm 8 18 Plastic Cap Ø26x8 Spring WasherØ6.5xØ10.5x1.4T 8 19 Left Pedal JD-32A (9/16”) Right Cover 395x316x77 1 20 Right Pedal JD-32A (9/16”) -
Page 9: Set
SET UP Locking Lever Pull Locking Lever fully to unlock pedal to unfold the pedals. Place the ACTIV cycle on a level surface on the non-slip mat. Make sure the controller is set to off position before plug the power cord into the electrical outlet. -
Page 10: How To Use
HOW TO USE CONTROLLER ACTIV cycle is on a 15-minute timer after turned on. Turn power switch OFF and ON again to restart 15-minute timer. Speed control knob. Turn knob clockwise to increase speed. For the first two weeks, you should begin with 5-10 minutes once a day at a low speed. -
Page 11: Workout Principal
WORKOUT PRINCIPAL Workout Factors 1. Personal goals includes shaping, strengthening, available time, present fitness level, previous injuries, and cardiovascular. By using the ACTIV cycle correctly and on a regular basis, you can achieve your goals. 2. Available time is one of a major element in determining what we do in our daily lives. -
Page 12: Exercises
EXERCISES How to use your ACTIV cycle The ACTIV cycle can only be used after the power cord is plugged into the electrical outlet. Do NOT use the ACTIV cycle without the power plugged in as this will damage the equipment. When using it with the power-on (motor assisted), the proper way to exercise is to set the desired speed by using the controller, and then following that speed to get the best results. - Page 13 EX X ERCISE Leg E Exercise For u se as a low wer body d device- sec cure the devic ce on a non n slip surfa ace prior to o use, and sit c comfortably y in a chair r with the e device direct...
-
Page 14: Warranty
WARRANTY MANUFACTURER’S LIMITED WARRANTY Paradigm Health & Wellness warrants to the original purchaser that this product is free from defects in material and workmanship when used for the purpose intended, under the conditions that it has been installed and operated in accordance with Paradigm’s Owner’s Manual. -
Page 15: Fax From
FAX FORM Paradigm Health & Wellness, Inc. PARTS REQUEST FAX FORM Please fax this form to (1-626-810-2166) OR YOU CAN EMAIL CUSTOMER SERVICE REQUESTS TO service@paradigmhw.com NAME: _______________________________________________________ ADDRESS: ____________________________________________________ CITY ______________ STATE ______________ ZIP ___________________ TELEPHONE: (Day) _____________________________________________ (Night) ____________________________________________ (Email Address) ____________________________________ SERIAL#: __________________________________________ MODEL#: __________________________________________...
