Summary of Contents for IDTECK Star RFK505

  • Page 2: Table Of Contents

    차례 ..............차례 ........... 1 Safety Information ......... 1 IMPORTANT SAFETY INSTRUCTIONS ............2 General ............3 Features ............Specifications ..........5 Identifying Supplied Parts ........... 6 Product Overview ............. . 1 Functions ............2 Product Explanation .......... 10 2.1 Front Panel Description .......... 11 2.2 Back Panel Description ............ 12...
  • Page 3 ............ 19 Installation .......... 19 1 Installation of the Product ............ 20 2 System Initialization .............. 21 3 Wiring ............. . . 21 3.1 Power .......... 21 3.2 Wiegand Data Connection ........ 21 4 Wire Connection to Access Controller ........ 22 4.1 Reader Connections (External Reader) ........ 22 Compatible Readers(External Reader) ............ 22...
  • Page 4: 차례

    ........... . . 37 2.1 LCD 표시 형태 설정 ............ 37 2.2 Buzzer Status ............ 38 2.3 Output Mode ........... . 38 2.4 LED Buzzer Control ............ 39 2.5 RF PIN Input .......... 39 2.6 Key Output Type Setting ............ 39 3 Setup Menu F3 ............. . . 40 4 NOT USE ............ 40...
  • Page 5: Safety Information

    Safety Information CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIE D SERVICE PERSONNEL. This symbol indicates that dangerous voltage consisting a risk of electric shock is pres ent within this unit.
  • Page 6 3. Do not connect multiple controllers to a single adapter. Exceeding the capacity may cau se abnormal heat generation or fire. 4. Securely plug the power cord into the power receptacle. Insecure connection may caus e fire. 5. When installing the controller, fasten it securely and firmly. The fall of controller may ca use personal injury.
  • Page 7: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with dry cloth. 7. Do not block any ventilation openings. Install in accordance with the manufacturer’s ins tructions.
  • Page 8: General

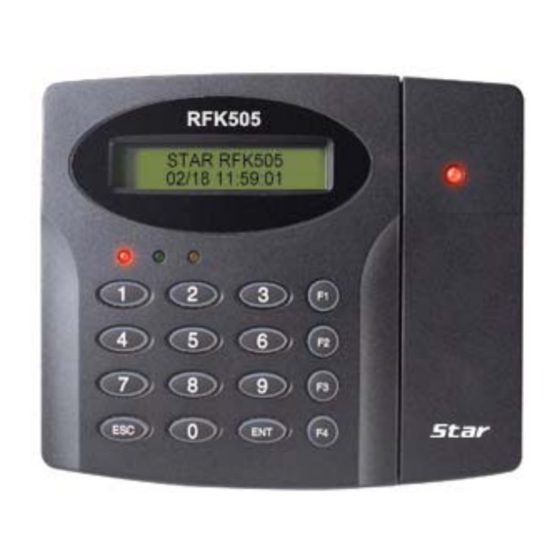

    (4”) read range PIN & Proximity Card Reader with keypad and LCD display. The Star RFK505 displays current time on the LCD and has back lighting on the keypad that ensures you successful operation. The Star RFK505 allows you to access door with proximity card and personal PIN numbers.
  • Page 9: Features

    Features 125KHz Proximity / PIN Reader ● PSK Modulation ● Read Range: Up to 4 inch (10cm) ● Network Communication via RS232 / RS422 / TCP/IP (Optional Internal TCP/IP Module R ● equired) 26bit Wiegand, 4/8bit Burst for PIN Output Format ●...
  • Page 10: Specifications

    Specifications RFK505 / IPK505 / SRK505 Model IDK50 / IMC125: Up to 2 inch (5cm)IDC80 / IDC170: Up to 4 i Read Rang RFK505 nch (10cm) IPK50: Up to 2 inch (5cm)IPC80 / IPC170: Up to 4 inch (10cm IPK505 ISK50 / IHC80 / IMC135: Up to 2 inch (5cm)SDC80: Up to 4 in SRK505 ch (10cm)
  • Page 11 Dark Pearl Gray / Polycarbonate Color / Material 161.5mm x 134mm x 48.5mm Dimension (W x H x T) (6.36” x 5.28” x 1.9”) 547g (1.21lbs) Weight...
  • Page 12: Identifying Supplied Parts

    Identifying Supplied Parts Please unpack and check the contents of the box. If any of these parts are missing, please co ntact your distributor or service center. (Optional accessories, if purchased, may be included in the Gift Box)
  • Page 13: Product Overview

    The Star RFK505 manages output mode setting, external buzzer control and external LED control. Keypad If the Star RFK505 is not connected to a host PC, the integrated keypad and LCD displ ay module can be used for the entire programming process. Product Explanation...
  • Page 14: Front Panel Description

    Front Panel Description 1 LCD Display: LCD module displays Star RFK505 status. 2 System Operation Status LED: When the power is applied to the unit, the red LED is turned on. During the reader transmits card data to the controller, the green LED is turned on.
  • Page 15: Back Panel Description

    If the LAN is connected normally during TCP/IP communication, green LED will turn o n. But in the collision status, the #2 LED (red) turns on. 3 Tamper Switch If someone takes off installed Star RFK505 on the wall by force, the tamper switch is a ctivated then buzzer makes sound. Product Explanation...
  • Page 16: Wire Color Table

    Wire Color Table IO PORT NAME SIGNAL NAME COLOR CODED POWER (CON7) Main Power(+12V) DC +12V Power Ground Black OUTPUT/INPUT (CON4) (Not use) EXTRA READER PORT (CON5) Wiegand Data0(IN) DATA0 Pink Wiegand Data1(IN) DATA0 Cyan OUTPUT (CON5) TTL Output1 DATA0 Output Orange with White Stripe TTL Output2 DATA1 Output...
  • Page 17 IO PORT NAME SIGNAL NAME COLOR CODED RS422-TX(-) TX(-) Yellow RS422-TX(+) TX(+) Gray RS422-RX(-) RX(-) Blue RS422-RX(+) RX(+) Brown TCP/IP Communication (CON6) TCP/IP Communication 8PIN Connecter Module Wire Color Table p.13...
  • Page 18: Installation Checkpoints & Tips

    Installation Checkpoints & Tips Installing the Star RFK505 (iPASS IPK505, IDTECK SRK505) is an easy task. It can be installed with common hand tools and readily available communications wires. This section provides i nformation about wiring, wire runs and other information to make the installation quick an d easy.
  • Page 19: Recommended Cable Type And Permissible Length Cable

    Recommended Cable Type and Permissible Length Cable Reference Description Cable Specification Maximum Distance ① Controller Power (DC12V) Belden #9409, 18 AWG DC Power → Controller 2 conductor, unshielded ② Reader (Power and Data) Belden #9512, 22 AWG 150m RFK505 → Controller 4 conductor, shielded Belden #9514, 22 AWG 8 conductor, shielded...
  • Page 20: Termination Resistors

    Termination Resistors Termination resistors are used to match impedance of the network to the impedance of the transmission line being used. When impedance is mismatched, the transmitted signal is not completely absorbed by the receiver and a portion of signal is reflected back into the transmi ssion line.
  • Page 21: Termination Resistors For 4 Wire Rs422 Communication System

    If you do not find both earth ground and chassis ground, then connect one end of shield wire to power ground. (GND of Star RFK505 (iPASS IPK505, IDTECK SRK505)) Note that if the chassis ground is not properly connected to the earth and floated from the ground level, then grounding to the chassis ground will give the worst communication;...
  • Page 22 p.18 Installation Checkpoints & Tips...
  • Page 23: Installation

    Installation Installation of the Product 1. the provided template (on the back of this manual) to drill two 6-32 holes and one 1/2" hole on the proper location of the wall to mount the Wall Mount bracket as shown bel (Skip this step if the gang box is already installed on the wall) 2.
  • Page 24: System Initialization

    You have to initialize the Star RFK505 prior to installation. After power is supplied to the Star RFK505, press the Initialization Switch on the back of the RFK505 unit and then keep it for more than 2 second. Then you can see the display below. I f you want initialization, press key <1>, otherwise press key <0>.
  • Page 25: Wiring

    System is rebooted automatically after Initialization Wiring Power Connect the (+) wire of DC 12V power to the +12V (Red wire). ● Connect the GND (-) wire of DC 12V power to the GND (Black wire). ● Wiegand Data Connection Connect DATA0 IN wire of the controller to WEIGAND DATA 0 wire of RFK505 (Orange ●...
  • Page 26: Reader Connections (External Reader)

    Reader Connections (External Reader) Proximity Reader Connection Connect (+) wire of the RFK505 to +12V (Red wire). ● Connect (-) wire of the RFK505 to GND (Black wire). ● Connect DATA0 wire of the RFK505 to DATA0 (Pink wire). ● Connect DATA1 wire of the RFK505 to DATA1 (Cyan wire).
  • Page 27: Communication

    Communication RS232 Communiction Port Connection 9-pin connector (Serial communication connector, female) is required to connect the RFK50 5 to a host computer via RS232 communication. Please follow the instruction below; Connect RS232-TX port of RFK505 to the pin 2 of the 9-pin connector. ●...
  • Page 28: Rs422 Connection (Multiple Rfk505S Connections)

    Connect RS422-RX(-) of the RFK505 to RS422-TX(-) port of the converter. ● Plug in the RS232 9pin connector of the converter to the COM1 or COM2 port of the P ● Install and run application software. ● RS422 Connection (Multiple RFK505s Connections) RS422/RS232 converter is required to use RS422 communication between multiple RFK505s and a host computer.
  • Page 29: Tcp/Ip Communication Port Connection (Optional)

    I. Connect RS422-TX(+) of the one RFK505 to RX(+) port of the converter. II. Connect RS422-TX(-) of the one RFK505 to RX(-) port of the converter. III. Connect RS422-RX(+) of the one RFK505 to TX(+) port of the converter. IV. Connect RS422-RX(-) of the one RFK505 to TX(-) port of the converter. V.
  • Page 30: Tcp/Ip Converter (External Version)

    e RFK505 units without TCP/IP modules, connect the yellow RS422 wire of the RFK505 with a built-in TCP/IP module to the Blue wire of a RFK505 without a module. RFK505 with TCP/IP Module RFK505 without TCP/IP Module Yellow Blue Gray Brown Blue Yellow...
  • Page 31 INTERFACE RFK505 ILAN422 LINE COLOR TX (CON2) RX (RS232 DSUB9) BLACK+WHITE RS232 RX (CON2) TX (RS232 DSUB9) RED + WHITE GND(CON2) BLACK TX+ (CON3) RX+ (RS422 CONNECTOR) GRAY RS422 TX- (CON3) RX- (RS422 CONNECTOR) YELLOW RX+ (CON3) TX+ (RS422 CONNECTOR) BROWN RX- (CON3) TX- (RS422 CONNECTOR)
  • Page 32: Initial Setup

    Initial Setup System Initialization For system initialization, press and hold the initialization button over 1 second. (The initializa tion button can be found on the back of the RFK505.) Then, the LCD will first display “Initiali ze OK? 1: Yes 0: No”. Press <1> key if you want to initialize the system or <0> to cancel the i nitialization procedure.
  • Page 33: Entering Setup Mode

    Entering Setup Mode To setup or change the RFK505 settings, you have to enter the Setup Mode first. To do so, e nter the Master ID (default=00000000)* and press the <ENT> key. There are 4 main Setup menus and you automatically get into “SETUP MENU F1” first. You can move to other Setup menus by pressing the <F1>...
  • Page 34: Operation

    Operation Normal Operation Power On When the power is applied to RFK505, the “RED LED” is turned on. Registered Card Reading When a registered card (or PIN) is read, the door (Relay1) will open for 3 seconds (Def aults) with the “GREEN LED” on. Alarms by Temper Switch After RFK505 is installed on the wall, if someone take the RFK505 off from the wall th en “YELLOW LED”...
  • Page 35: Setting Changes

    Setting Changes To setup or to change the RFK505 / IPK505 settings, the user has to enter the SETUP MENU first. To do so, input Master ID (Default setting “00000000” and the user can get into SETUP p.31...
  • Page 36: Setup Menu F1

    MENU. There are 4 main SETUP MENUs and the user first gets into [SETUP MENU F1]. The u ser can move to other SETUP MENU by pressing <F1> key for [SETUP MENU F1], <F2> key fo r [SETUP MENU F2], <F3> key for [SETUP MENU F3] and <F4> key for [SETUP MENU F4]. Th ere are several SUB MENUs in the main SETUP MENU and the user can scroll up and down t he SUB MENU by pressing <4>...
  • Page 37: Time Setting

    Time Setting The LCD displays the current time. To change the time, press <ENT>, enter 15 Digits in a “YY YYMMDDhmmssW” format, and then enter <ENT> again to confirm. For the days of the week (W), 1: Sun, 2: Mon, 3: Tue, 4: Wed, 5: Thu, 6: Fri, 7: Sat. e.g.
  • Page 38: Reader 1 (Internal Reader) Mode

    ress, the baud rate you set here should match the value you set on the software. Baud Rates of 4800bps, 9600bps, 19200bps, 38400bps, 57600bps and 115200bps are sup ported, and 9600bps is default. To change the Baud Rate, press <ENT>, select the desired baud rate by pressing <4> or <6>, and then press <ENT>...
  • Page 39: Master Id Registration Or Change

    This is reader #2 status. You cannot change this mode Master ID Registration or Change Master ID is the number/card that you use to enter the Setup Mode. For security reasons, it i s advisable that you change the default Master ID immediately and keep the new Master ID / card confidential.(Default is “00000000”) Beware that if you forget the Master ID, you cannot access the Setup Mode.
  • Page 40: System Initialization

    System Initialization System initialization allows you to initialize the RFK505. Initialization clears all the user-defin ed data stored in the device such as card data, input/output setting, Time Schedules, etc. Before you initialize the system, make sure you do not need the data stored in the device.
  • Page 41: Lcd 표시 형태 설정

    LCD 표시 형태 설정 LCD DISPLAY allows you to decide whether to display the card number or the status messag e on the LCD when access is granted or denied. STATUS The LCD will display the text message indicating the status, i.e. “ACCESS GRANTED” or “ACCESS DENIED”...
  • Page 42: Output Mode

    Output Mode You can select the output format between WIEGAND or ABA TRACK. WIEGAND: Outputs ID data through Wiegand output line. ABA TRACK II: Outputs ID data through ABA track output line. (Open collector) LED Buzzer Control This function controls the LED and Buzzer of the reader. GL (Green LED) controls the card reading status.
  • Page 43: Rf Pin Input

    RF PIN Input RF Pin Input allows you to decide whether to enable or disable PIN (or RF card number) Inpu t via the keypad. By default, PIN Input is enabled. If you choose” Disable”, you cannot gain access via password input when using RF +PW mode.
  • Page 44: Not Use

    NOT USE Firmware Version p.40 Setting Changes...
  • Page 45: Memory Test

    If the test is unsuccessful, the LCD will display the “TEST FAILED” message. Press any key to finish the test and try again. If the problem persists, please contact your loca l IDTECK dealer for assistance or service. Output Test NOT USE p.41...
  • Page 46: Lcd Test

    Output Test allows you to test the output ports of the RFK505. To begin the test, press <ENT> . First, output port 1 and 2 will be tested. During the test, relay outputs are activated and yo u will hear Tick-Tack sounds with the green LED blinking twice. Second, output ports3 and 4 will be tested.
  • Page 47: Reader Test

    Reader Test Reader Test allows you to test the reader(s). To begin the test, press <ENT>. While the LCD d isplays “SCANNING”, present a card to the reader you would like to test, and the LCD will dis play the reader number and the card number. After the test is finished, press <ESC> to exit. Reader#1 refers to the built-in reader of the RFK505, and Reader #2 refers to an e xternal reader.
  • Page 48: Communication Test

    Input 5 The status of the tamper switch inside the RFK505 (0=OFF (Disabled), 1=ON (Enable In case of RFK505, it’s possible to test only tamper switch in INPUT #5. Communication Test COMM Test allows you to test communication. Prior to the test, connect the RS232-RX wire (Black wire with White stripe) and the RS232-TX wire (Red wire with Black stripe) together.
  • Page 49: Appendix

    Appendix Default Values for Parameters Parameters INITIAL SETTING VALUE READER #1 Operation Mode ID ONLY READER #2 Operation Mode ID ONLY READER #1 Keypad Input Limit p.45...
  • Page 50: Fcc Registration Information

    FCC REGISTRATION INFORMATION FCC Requirements Part 15 Caution: Any changes or modifications in construction of this device which are not expressly approved by the responsible for compliance could void the user's authority to operate the e quipment. NOTE: This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions;...
  • Page 51: Rma Request

    RMA Request If you have any questions or problems regarding the RMA services, please contact us using t he contact information below. Friendly representatives at IDTECK are always standing by to provide the best after sales services. IDTECK Headquarter 5F, Ace Techno Tower B/D, 684-1, Deungchon-Dong,...
